Quick Details
-
Name:
-
High precision oral liquid / syrup liquid pump filling capping machine
-
contact parts material:
-
316&304 Stainless steel
-
filling volume:
-
1ml-100ml-500ml
-
filling accuracy:
-
±0.5%
-
motor:
-
Servo Motor
-
suitable cap:
-
Aluminium cap/plastic cap/spray cap/Trigger cap
-
filling speed:
-
20-60 bottles per minute
-
suitable material:
-
Liquid/Oil/Cream/Lotion/Shampoo
-
air pressure:
-
0.4-0.8 Mpa
-
power:
-
220/110V 50HZ single phase/three phases
-
Certification:
-
CE
Quick Details
-
Packaging Material:
-
Metal, Plastic, Glass
-
Place of Origin:
-
Jiangsu, China
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Name:
-
High precision oral liquid / syrup liquid pump filling capping machine
-
contact parts material:
-
316&304 Stainless steel
-
filling volume:
-
1ml-100ml-500ml
-
filling accuracy:
-
±0.5%
-
motor:
-
Servo Motor
-
suitable cap:
-
Aluminium cap/plastic cap/spray cap/Trigger cap
-
filling speed:
-
20-60 bottles per minute
-
suitable material:
-
Liquid/Oil/Cream/Lotion/Shampoo
-
air pressure:
-
0.4-0.8 Mpa
-
power:
-
220/110V 50HZ single phase/three phases
-
Certification:
-
CE
|
High precision oral liquid / syrup liquid pump filling capping machine
|
| Name |
High precision oral liquid / syrup liquid pump filling capping machine
|
|
contact parts material |
316&304 Stainless steel |
|
filling volume |
1ml-100ml-500ml |
| Filling accuracy |
±0.5% |
|
motor |
Servo Motor |
|
suitable cap |
Aluminium cap/plastic cap/spray cap/Trigger cap |
|
suitable bottles |
Bottle/Jar/Can/Tube/Pouch |
|
filling speed |
20-60 bottles per minute |
|
suitable material |
Liquid/Oil/Cream/Lotion/Shampoo |
|
power |
220/110V 50HZ single phase/three phases |
|
certificate |
CE |
|
key word |
Filling machine |
|
air pressure |
0.4-0.8 Mpa |
| service | Engineers available to service machinery overseas |

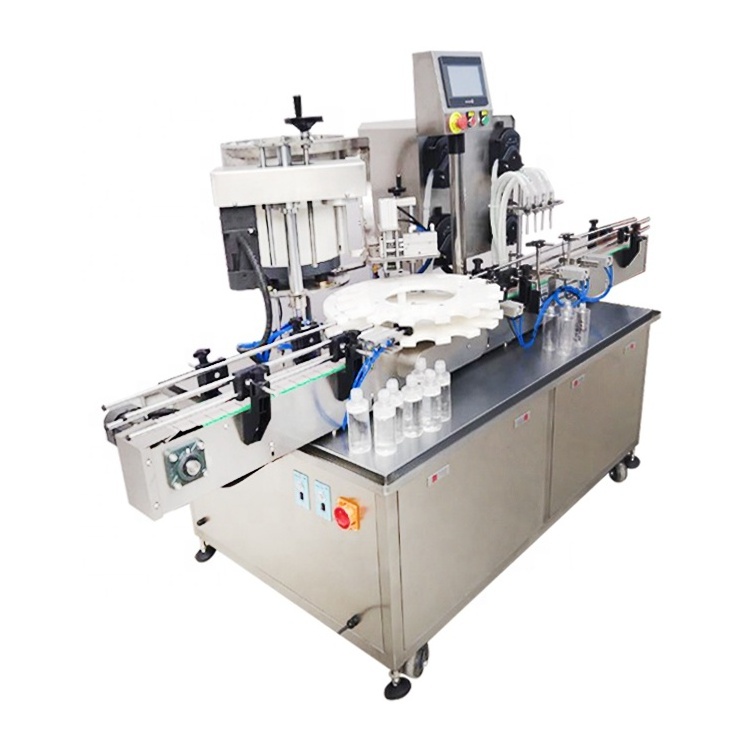

1. This peristaltic pump filling and capping machine is multi-function monoblock machine with compact design..
2. This machine applies to foodstuff, pharmacy, cosmetic, chemical and pesticide industries.
3. Packing specification:1ml-100ml-500ml
4. The machine is controlled by PLC and touch screen.
5. It applies piston/gear/ Peristaltic pump filling system.
6. Automatic cap sorters for press cap, spray pump cap, screw cap, alu. ROPP cap. Etc.
7. Flexible for all kinds of capping heads, screw, press, alu. Roll.
8. Through the magnetic moment capping head screwing the location bottle. Magnetic moment capping, adjustable on pine, tight, do not hurt the jar and cover.
9.No bottles ,stop filling
10.No bottles ,No plunger and caps feeding .
11.Photoelectric detection devices make the machine realize down work to protection and automatic start up when lack of bottle or more bottles and other working fault
Major characteristics:
1. This filling and capping machine is a newly developed filling and capping machine. It can be used for many different kinds and specifications filling and capping.
2. Its electrical and pneumatic components are of international-famous brand, which are automatically controlled by computer (PLC) and touch screen control panel, so to achieve easy operating, and convenient maintenance.
3. It is ideal equipment for low-capacity requirement. It can tighten caps automatically.
4. All the parts which touch the material are made of high quality stainless steel, and the surface has been polished, no pollution to the surrounding.
5. The machine applies to GMP standard. It is accurate and handy. The tightening system also has functions of cap sorting.
