Quick Details
-
Dimension(L*W*H):
-
3300*2300*2500mm
-
Weight (KG):
-
1100 kg
-
Cleaning Width:
-
2300mm
-
Main Brush Width:
-
800mm
-
Main Brush Diameter:
-
420mm
-
Work efficiency:
-
15000~20000Sqm/h
-
Garbage Tank Capacity:
-
200L
-
Driving Motor Power:
-
2200w
-
Rilling Brush Motor Power:
-
1200w
-
Side Brush Motor Power:
-
4*100w
-
Side Brush Diameter(Front):
-
700mm*2
-
Side Brush Diameter(Back):
-
600mm*2
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
DAVAOR
-
Power:
-
3800
-
Dimension(L*W*H):
-
3300*2300*2500mm
-
Weight (KG):
-
1100 kg
-
Cleaning Width:
-
2300mm
-
Main Brush Width:
-
800mm
-
Main Brush Diameter:
-
420mm
-
Work efficiency:
-
15000~20000Sqm/h
-
Garbage Tank Capacity:
-
200L
-
Driving Motor Power:
-
2200w
-
Rilling Brush Motor Power:
-
1200w
-
Side Brush Motor Power:
-
4*100w
-
Side Brush Diameter(Front):
-
700mm*2
-
Side Brush Diameter(Back):
-
600mm*2
Machine Function and Characters

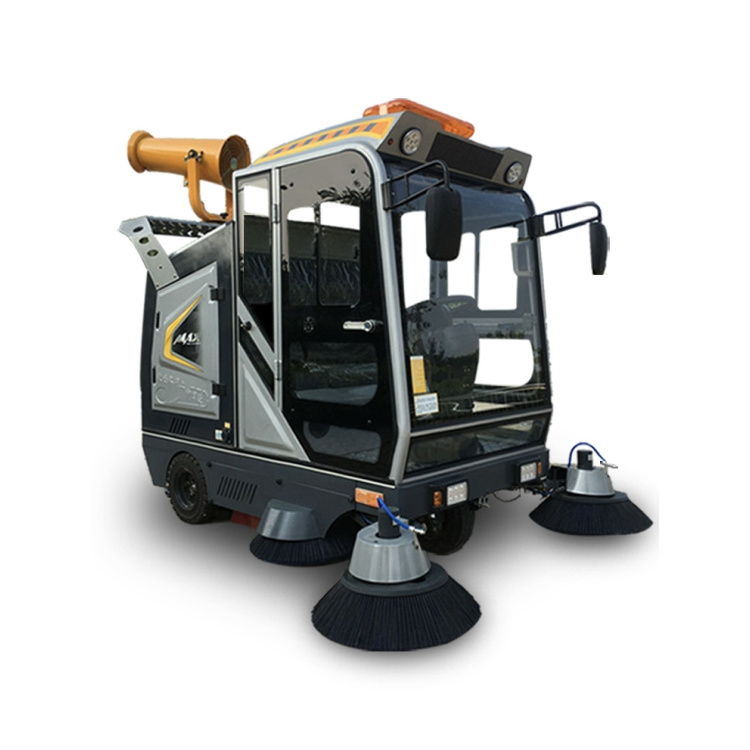

DS23 Ride-on floor sweeper is a specialized industrial cleaning machine designed for efficiently and effectively cleaning large floor areas. Its main function is to sweep and collect dust, debris, and other particles from various types of surfaces, leaving the floors clean and free of dirt.
Main Functions:
Sweeping: The primary function is to sweep and gather debris, dust, litter, and other types of dirt from the floor surface.
Dust Control: Many ride-on floor sweepers are equipped with dust control systems, including filters and vacuum mechanisms, to prevent the release of dust into the air during the cleaning process.
Collection: These machines typically have a large debris hopper or collection bin where the swept materials are stored. This allows for extended periods of operation without the need for frequent emptying.
Efficiency: Ride-on floor sweepers are designed for efficiency, covering large floor areas quickly. The ride-on feature allows an operator to cover more ground in less time compared to traditional push-type sweepers.
Maneuverability: They often have features like steering controls, adjustable brushes, and turning radius enhancements to provide good maneuverability in different environments.
Technical Parameters
|
Type |
DS23 | Power Source | Battery |
| Rated Voltage | 48V | Max Cleaning Width | 2300mm |
| Main Brush Width | 800mm | Cleaning Efficiency | 15000~20000 Sqm/h |
| Dustbin | 240L | Quantity of Brush | 4 |
| Driving Motor | 2200w | Rolling Brush Power | 1000w |
| Side Brush Power | 4*100w | Side Brush Dimater(Front) | 700mm*2Pcs |
| Battery Capacity | 120~200A | Side Brush Dimater(Back) | 600mm *2Pcs |
| Driving Speed | 0~12km/h | Water Tank | 400L |
| Vacuum Filtering | 10 sqm | Machine Type | Ride on |
| Machine Dimension | 2900*2300*2500mm | Machine Weight | 1000kg |
