Quick Details
-
Dimensions(L*W*H):
-
600mm X 400mm X 540mm
-
Weight:
-
38 KG
-
Machine Name:
-
1 color golf ball logos tampography printing machine
-
Machine Type:
-
ink cup
-
Printing Speed:
-
2100pcs/ hour
-
Max printing Size::
-
50x 50mm (2"x 2")
-
Worktable Size::
-
100x 180mm
-
Max height of products:
-
80mm
-
Stroke of pad:
-
125mm
-
Air supply:
-
6 Bar
-
Cylinder:
-
Germany FESTO
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HengJin
-
Voltage:
-
220 VAC/ 1 Phase 20W
-
Dimensions(L*W*H):
-
600mm X 400mm X 540mm
-
Weight:
-
38 KG
-
Machine Name:
-
1 color golf ball logos tampography printing machine
-
Machine Type:
-
ink cup
-
Printing Speed:
-
2100pcs/ hour
-
Max printing Size::
-
50x 50mm (2"x 2")
-
Worktable Size::
-
100x 180mm
-
Max height of products:
-
80mm
-
Stroke of pad:
-
125mm
-
Air supply:
-
6 Bar
-
Cylinder:
-
Germany FESTO
-
Certification:
-
CE

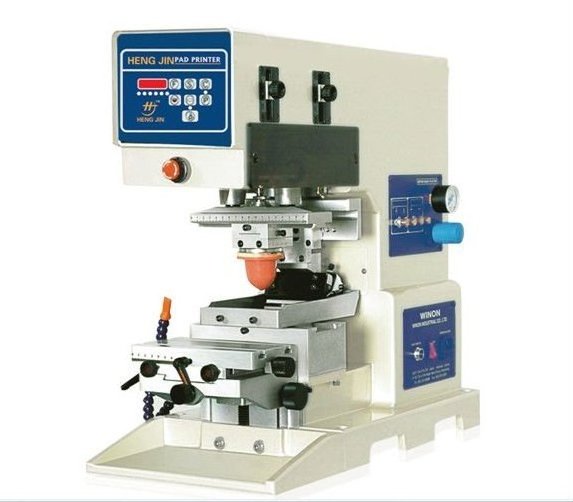

HP-125 one color sealed ink cup desktop pad printer
Application:
code bar, necessities, toys, electrons, electrical equipment, plastics, leather, metal, glass,
light industry and food packages ETC.
golf ball printer
1.Feature
- The printing speed is swift . A few pieces of machine can make up a produce line .
- Ink roller inking, installing, dismantling, cleaning is conveniently.
- Can stick the ink twice and printing one time so that get thicker ink
- Having 4 data counters automatic , the printing speed is adjustable .
- Having a good location . The worktable as adjustable for its front/back, left/ right and any angles.
- This is machine is Semi-automatic, having automatic counter for 4 digit s;
- The machine can do your any printing requested, and per location is adjustable , such as, left/ right, up/ down, delay printing, dip ink etc;
- The cylinder is Germany FESTO . The thickness of the screw we used 8.75 Degree. Which have more usage about 20 years ;
- The body is Alloy Cast Aluminum , then it is lighter and durable .
golf ball printer
2.Parameter
|
Item Number |
HP-125 |
Printing colors |
ONE |
|
Printing Speed |
2100pcs/ hour |
Max height of products |
80mm |
|
Max metal plat e |
100x100mm |
Max printing Size |
75x 75mm |
|
Worktable Size |
100x 180mm |
Stroke of pad |
125mm |
|
Adjust to pads size on target products |
10-40 mm |
Adjus t to pads size on the metal plate |
10-40 mm |
|
Volta g e of source |
220 VAC/ 1 Phase 20W |
Air supply |
6 Bar |
|
Dimen s ion |
600 mm X 400 mm X 540mm |
Net Weight |
38 KGS |
golf ball printer
3.Picture
Machine
Samples
1.package
2.CE certification
