Quick Details
-
Brand Name:
-
MINGRUI
-
Model Number:
-
MR-2253-G1/4, MR-2253-G1-4
-
Operating Temperature:
-
-1~80℃
-
material:
-
plastic
-
color:
-
black
-
application:
-
flow switch
-
installation:
-
easy
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
1.5-70L
-
Place of Origin:
-
zhejiang
-
Brand Name:
-
MINGRUI
-
Model Number:
-
MR-2253-G1/4, MR-2253-G1-4
-
Operating Temperature:
-
-1~80℃
-
material:
-
plastic
-
color:
-
black
-
application:
-
flow switch
-
installation:
-
easy

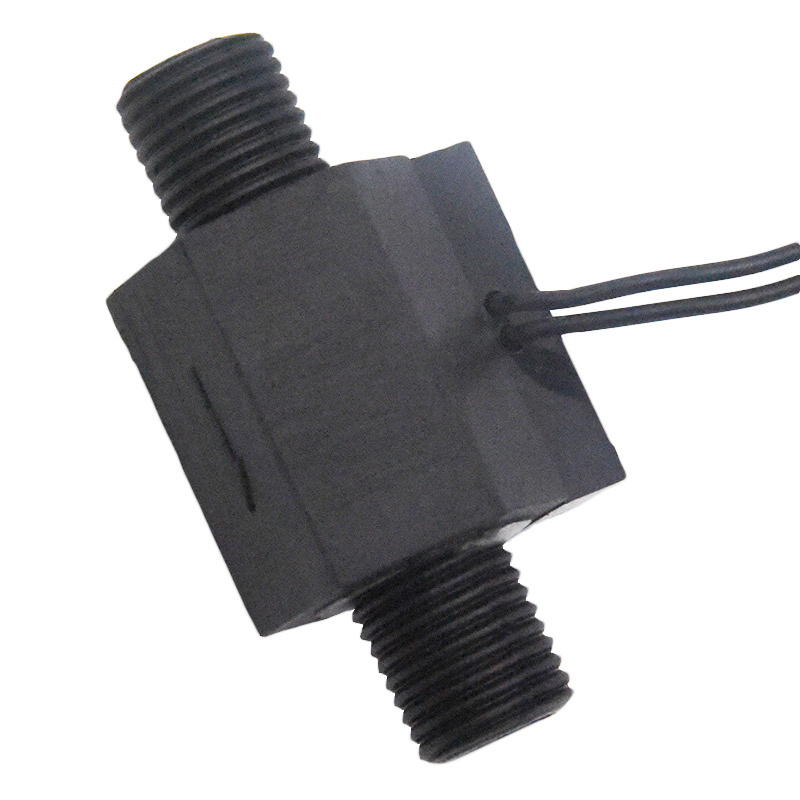

Flow Switch
We are a professional source factory,
with good product quality and cheap price
MR-2253-G1/4
Introduction
flow switch consists of magnetic core, rotating impeller, external casing and sensor. Flow through the sensor
activates the magnetic core to trigger switch action, with signal output.
Features
imported components of the magnetic switch, sample working principles, and highly reliable, cheaper price.
Specification
| withstand hydraulic pressure | ≤1.2Mpa | |||||
| voltage rating | 100V | |||||
| insulation resistance | >100MΩ | |||||
| precision | 0.25-1.6L/Min | |||||
| max switch current | 0.5A | |||||
| operating temperature | 0~+100℃ | |||||
| body material | PA+GF | |||||
it is used in the control of water circulation, water charging and discharging, water heating, water pump switch
on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy
water heater, air condition and other water systems.
