This loading frame decoiler also can use in other type machine, customer can buy it alone.
- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Wadley
-
Voltage:
-
380V 50Hz 3phases
-
Dimension(L*W*H):
-
7.8*1*1.5M
-
Weight:
-
5300 kg
-
Feeding width:
-
455mm
-
Marketing Type:
-
New Product
-
Name:
-
Ridge Cap Making Machinery
-
Application:
-
Roof Sheet Production
-
Raw material:
-
Color Steel Sheet
-
Thickness:
-
0.3--0.8mm
-
Frame:
-
350H Steel Welding
-
Roller material:
-
45#steel Chrome Plated
-
Shaft material:
-
High Grade No.45 Forged
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Control system:
-
PLC(imported Brand)
-
Decoiler:
-
Manual Decoiler
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Glaze Steel
-
Production Capacity:
-
15 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Wadley
-
Voltage:
-
380V 50Hz 3phases
-
Dimension(L*W*H):
-
7.8*1*1.5M
-
Weight:
-
5300 kg
-
Feeding width:
-
455mm
-
Marketing Type:
-
New Product
-
Name:
-
Ridge Cap Making Machinery
-
Application:
-
Roof Sheet Production
-
Raw material:
-
Color Steel Sheet
-
Thickness:
-
0.3--0.8mm
-
Frame:
-
350H Steel Welding
-
Roller material:
-
45#steel Chrome Plated
-
Shaft material:
-
High Grade No.45 Forged
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Control system:
-
PLC(imported Brand)
-
Decoiler:
-
Manual Decoiler
Product Overview

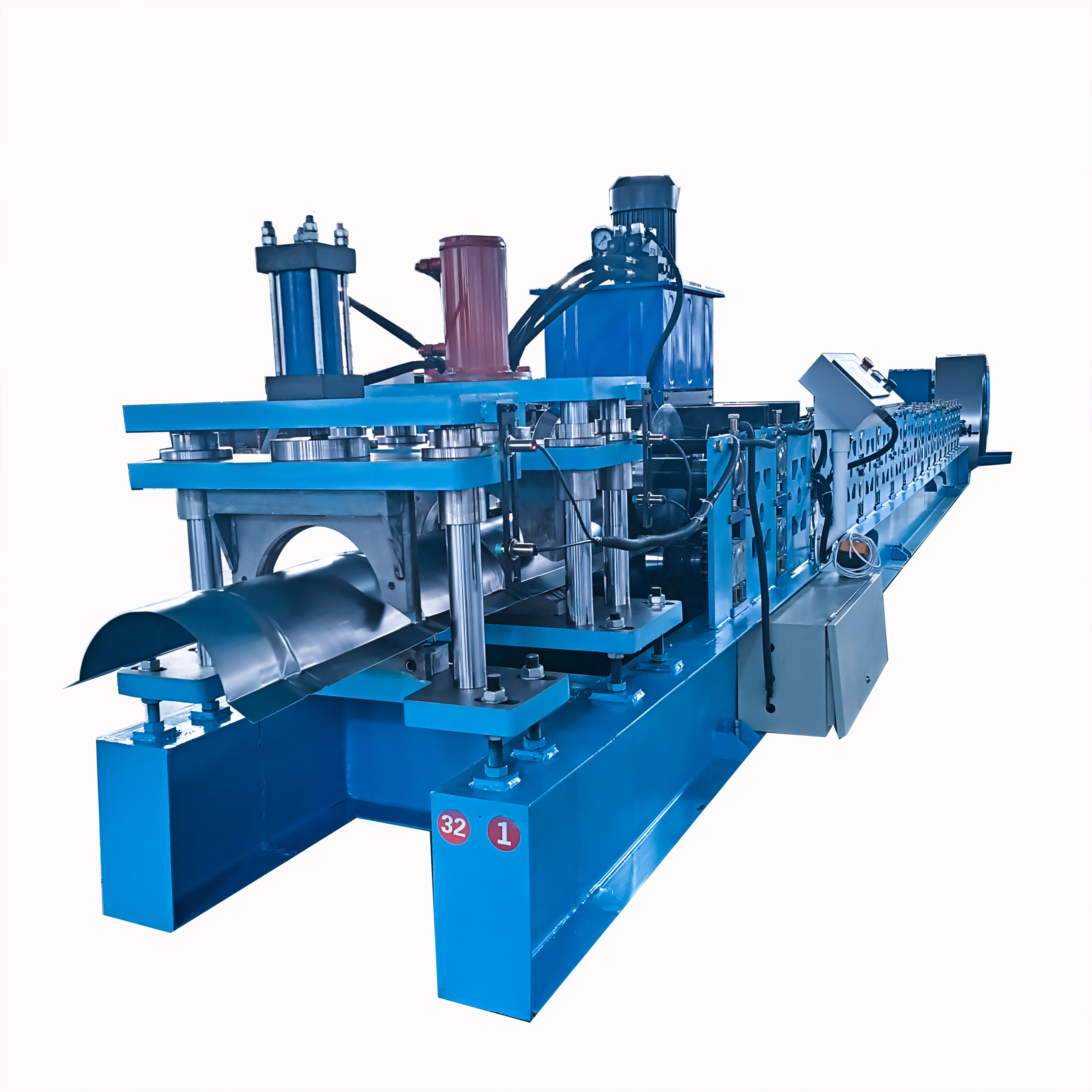

Ridge Cap Roll Forming Machine
Ridge Cap Roll Forming Machine
,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.
When you choose roof sheet corrugated roll forming machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time!
Product Specification
|
No
|
Item
|
Data
|
|
1
|
Raw material width
|
450-800 mm
|
|
2
|
Sheet effective width
|
300-600 mm
|
|
3
|
Raw material
|
Color steel sheet or galvanized steel sheet
|
|
4
|
Material thickness
|
0.3-0.8 mm or customized
|
|
5
|
Forming roller material
|
45# steel plated with chrome
|
|
6
|
Shaft diameter
|
70 mm
|
|
7
|
Forming roll station
|
8-16 steps
|
|
8
|
Main motor power
|
3 KW 4 KW 5.5 KW(according to type)
|
|
9
|
Hydraulic power
|
4 KW (according to type)
|
|
10
|
Control system
|
PLC control
|
Ridge cap roll forming machine
is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
Details Images
Decoiler
roof sheet ridge cap roll forming machine
load parts, decoiler loading frame we can offer different type can choose. standard type are manual,also can choose electric loading frame or hydraulic loading frame.
Machine frame
roof sheet ridge cap roll forming machine
adopts welded steel frame structure, it make sure roof sheet machine can operation more stable
AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing,
hard plating, heat treatment and chrome coating.
Forming roller
roof sheet ridge cap roll forming machine
forming roll quality will decide roof sheet shapes, we can according to your local roof shape customized different type rollers
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment.
Control part
roof sheet ridge cap roll forming machine
control parts have different types, standard type are button control, through press buttons to realize different function.
PLC touch screen type can setting data on the screen, its price is little higher, but is more intelligent and automatic.
Successful Project
Project in Thailand
Project in India
Project in Russia
