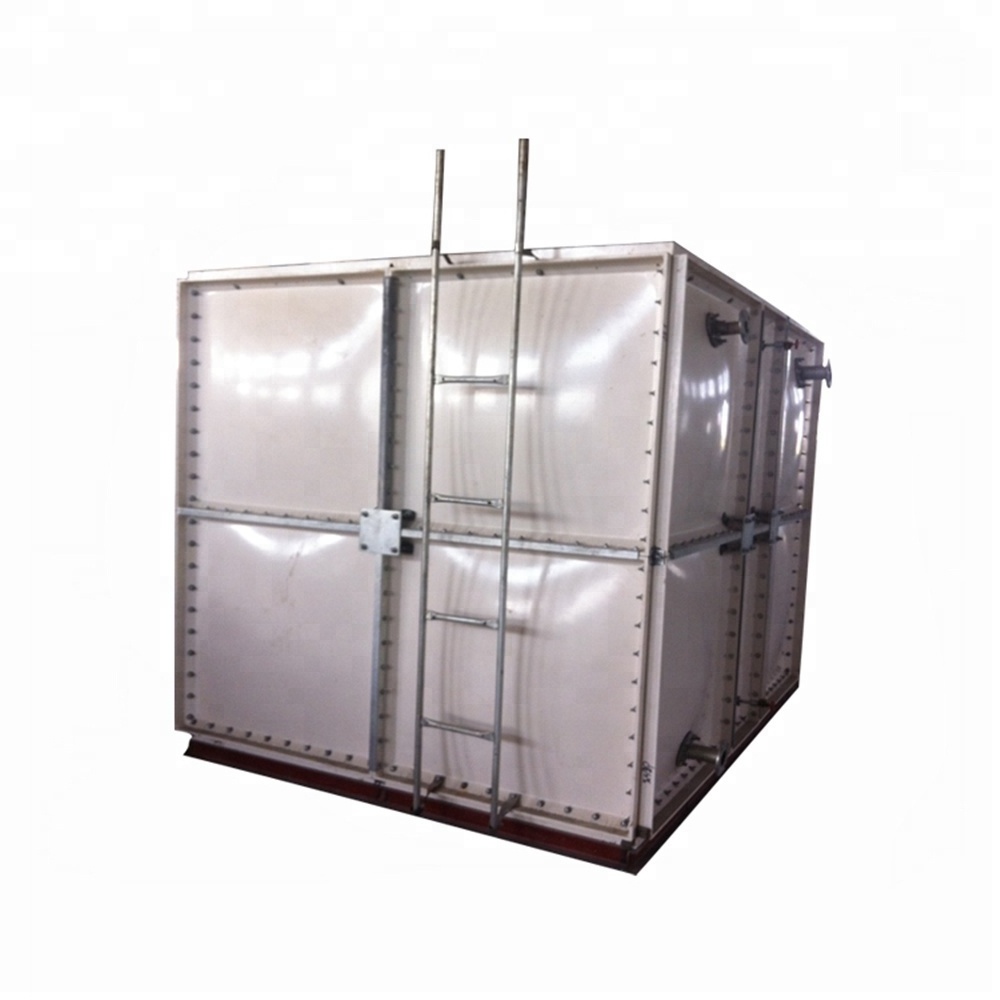

FRP Soft Water Storage Rectangular Fiber FRP Tanks for Water Treatment Application

FRP Soft  Water Storage Tank

1. FRP Combined Water tank is a new type water tank which is widely used in the world. It is assembled by the high-quality FRP panels.

2. Its characteristics:

(1). It adapts the food-grade resin, so it can guarantee

for the water quality and prevent the pollution.

(2). It has the high strength, light weight, corrosion

resistant, beautiful appearance, long working life,

convenient to maintain etc.

3.The FRP combined water tank is widely used in industrial and mining enterprises, enterprises and institutions, residence, hotel and other buildings. It can be used as drinking water, fire water storage facilities etc.

The FRP water tank panels

The FRP water tank panel is made from food-grade resin, via high temperature and powerful mechanical pressing.

(1) In manufacturing process, it adopts to manufacture method that mechanical pressing so it increase the

anti-seismic and shock resistance strength;

(2) In the shape design, there is sag arc in the middle of water tank plate, it improve the bearing ability of water tank. In addition, it has the 45° and 90° flange so it don’t need the corner fittings.

(3) The size of the FRP water tank panel: 1000*1000mm; 1000*500mm, 500*500mm,

Thickness of the FRP water tank panel: 5mm,8mm,10mm,12mm,14mm,16mm,18mm and 20mm.( 5mm thickness plate is used for the cover plate).

(4) The water tank can be assembled to be any size with the different size FRP panels from 1-1500CBM

The properties of FRP panel:
