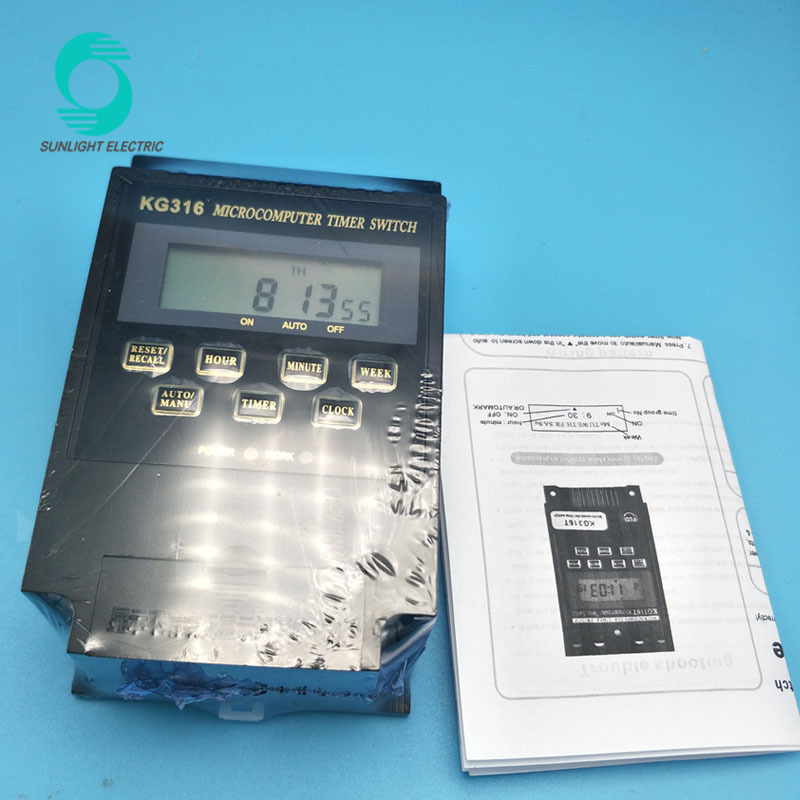

KG316T AC 110V Digital Microcomputer Programmable Timer Control Switch

Function and Application

This product can automatically switch on and switch off various kinds of electric equipment according to fixed time. It is widely applied to programmable control of electric cooker, booster, lamp, water heater, sprayer, bottler, preheater, agriculture facilities and broadcasting equipment etc.

Technical Specifications

·Voltage Range:AC110V

·Capacitance: Resistance Load: 25A ·consumed power<4VA

·Timing Control Range:1s~999h ·timing error <±2s/day(25℃±1℃)

·Temperature:-10℃~+50℃ · Relative Humidity:<95%

·Dimension:120×74×58 mm ·

Setting Method

Adjust Clock: Press the key "hour" , "minute" and "day" espectively to adjust hour , minute and day to accord with the current clock.

Timer Setting

1 Press the key "prog". Enter the first group of timing on (display 1ON)

2 Press the key "day". Setting the day of switch-on time (everyday, 5-days, 6-days, everyday different etc.)

3 Press the key "hour" and "min". Setting switch-off time (hour, minute)

4 Press the key "prog". Enter the first group of timing off (display 1OFF)

5 Press the key " day ". Setting the day of switch-off time (everyday, 5-days, 6-days, everyday different etc.). Pay attention that the day of switch-off time must correspond to the day of switch-on time.

6 Press the key "hour" and "min". Setting switch-off time (hour, minute)

7 Repeat step 1 to 6 Setting 2 to 10 groups of on-off time . If there is no need to set 10groups of on-off, press the key of " reset" to clear the rest groups of on-off time to "--:--"(but not 00:00)

8 Press the key "prog" repeatedly. Check whether every group of on-off time is correct; press the key "reset" and repeatstep 2 to 7 in case of error.

9 Press the key "auto/manu". Adjust on-off sign to the current state ("on" or "off") and adjust to the position of "auto".

10 Press the key "Clock". End timing state and enter the state of clock display.
