Washing without brushes poses a special challenge for a car wash. Leisuwash DG equipped a multi-stage chemical and high-pressure system. Automatically detect various types of vehicles and working with 35cm flushing distance and 100bar flushing pressure. A multi-stage applicator is used to apply different chemicals and therefore loosens a high amount of dirt. Contour-following and lateral high pressure ensure that the vehicle surface is cleaned thoroughly after the dirt has been loosened. We don’t need to worry about any damage to the car paint, because during the cleaning process, except the cleaning fluid and high-pressure water, there is no brush contact with vehicle body.
- Product Details
- {{item.text}}
Quick Details
-
Size:
-
3600*1450*3100mm
-
Material:
-
Stainless Steel
-
Warranty:
-
3 years
-
Output Power:
-
28KW
-
Product name:
-

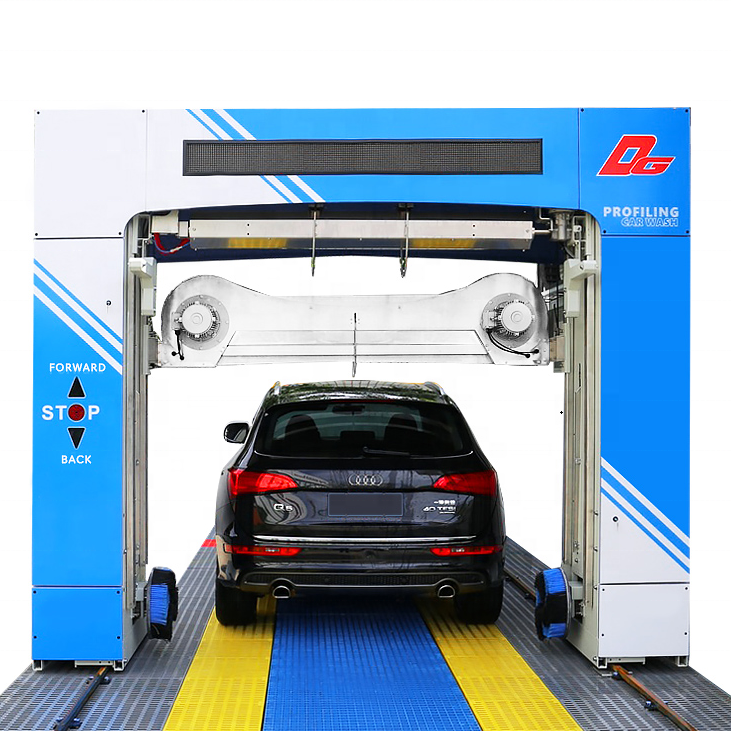

Touchless carwash tunnel automatic car wash
-
Max sizes of washed Cars:
-
W2100mm, H2100mm, length no limit SUV is ok
-
MAX sizes of washed Cars:
-
W6.89 feet, H 6.89 feet, any length
-
Water Pressure:
-
100bar/ 14500psi/ 10000kpa, adjustable
-
Washing mode:
-
4 Washing Modes
-
Washing Speed:
-
3 minutes 40 seconds --7 minutes/car adjustable
-
Certificate:
-
CE ISO
-
Advantages:
-
Contour-following drying and spraying, wheels brushes
-
Voltage:
-
380V 50HZ or as your request
-
Electricity/ Water consumption:
-
0.8-- 1.2KWH/car, 120-200Liter/car
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEISU carwash tunnel automatic car wash
-
Model Number:
-
DG carwash tunnel automatic car wash
-
Size:
-
3600*1450*3100mm
-
Material:
-
Stainless Steel
-
Warranty:
-
3 years
-
Output Power:
-
28KW
-
Product name:
-
Touchless carwash tunnel automatic car wash
-
Max sizes of washed Cars:
-
W2100mm, H2100mm, length no limit SUV is ok
-
MAX sizes of washed Cars:
-
W6.89 feet, H 6.89 feet, any length
-
Water Pressure:
-
100bar/ 14500psi/ 10000kpa, adjustable
-
Washing mode:
-
4 Washing Modes
-
Washing Speed:
-
3 minutes 40 seconds --7 minutes/car adjustable
-
Certificate:
-
CE ISO
-
Advantages:
-
Contour-following drying and spraying, wheels brushes
-
Voltage:
-
380V 50HZ or as your request
-
Electricity/ Water consumption:
-
0.8-- 1.2KWH/car, 120-200Liter/car
Highest- grade
Touchless
Carw
ash Tunnel
Automatic Car Wash
Type
Model SG D
rying Effect Raised 15%
Product Description
Key Features:
1. Contour-following high pressure rinse.
2. Contour-following air dryer.
3. Contour-following chemical application.
4. Bi-directional rotational wheel scrubbing.
5. High pressure swing side rinse. ( optional )
6. Frequency conversion silent air dryer. ( optional )
1. Contour-following high pressure rinse.
2. Contour-following air dryer.
3. Contour-following chemical application.
4. Bi-directional rotational wheel scrubbing.
5. High pressure swing side rinse. ( optional )
6. Frequency conversion silent air dryer. ( optional )
Functions1. Contour-following chemical application and high pressure wash.
2. Contour-following air dryer with side air dryer
Following the philosophy there is no great car wash without a great drying system. DG flow-optimized drying system provide contour-following air drying with accurately drying distance at 25 cm. By optimizing the main body of the blower, the air flow loss is effectively reduced, with 16 kW of power, the premium dryer for DG ensures that cars are dry and customers are satisfied. Optional SILENT-drying system can reduce 35% noise and energy consumption, and suit to more application places.
3. Bi-directional rotational wheel scrubbing.
DG also provides customers with more humanized design concepts. Customers can easily experience the uniqueness of DG through these innovative features. One of the most difficult areas of vehicles to clean are the wheels, DG takes tire scrubbing to a new level. During the process, each tire receives a chemical application and the wheel receives an intense bi-directional rotational scrubbing, combined with high-pressure water flow. There are multiple cleaning technologies in play to meet even the most demanding consumer needs.
4. Overglow lave foam with spot free RO water rinse
Leisuwash DG also provide more value-added functions, such as overglow lava foam, the light show will attract drivers off street and into your wash bay. Soft wax coating makes every car wash becomes a car care and maintenance, and surely will bring more return customers for you.
5. Leisuwash DG 24 hours Self-Service Online Paying
Through the online payment with voice guidance system can achieve 24-hours self service car wash. In China people use WeChat or
Alipay online paying, overseas customers can adpot local payment system work together with Leisuwash systems.
Alipay online paying, overseas customers can adpot local payment system work together with Leisuwash systems.
Size Information
Company Introduction
Shenzhen Deric company
is a professional company that supply high-quality car wash machines. The company provides better prices with same high quality machines. Looking forward to cooperation with customers all over the world.
Our Services & Strength
* Training of the installation and maintainance.
* Engineers are available to service machinery overseas.
* Engineers are available to service machinery overseas.
*
Inquiry and consulting support.
* Sample testing support.
* Sample testing support.
Packing&Shipping
FAQ
( minimum sizes for wash bay, devices room not included )
Leisuwash DG: 9100×4150×3350mm
2. What’s average time for each car washing?
It’s depends on how many the wash steps, complete wash steps with under chassis wash, pre-soaking, high pressure wash, shampoo, wax,
air dry will takes 6~8 mins, the time could be shorten if remove some of steps.
3. How about the air drying result of automatic car wash machine DG ?
Uses design of air fluid mechanics principle to achieve long-distance high-pressure air cylinder, can reach 90% drying result, the stability with safety are much more better than the profiling air drying in brush wash machine.
4. What’s the cost for washing one car ?
For example in our city Hangzhou, water with electricity cost for one car is about 2RMB, chemicals cost about 1RMB, total 3RMB equals USD0.5
Electricity consumption for one complete wash is about 1KWH.
Water consumption is about 50L per circle ( one car wash takes 2~3 circles )
Chemicals consumption 20~50ml each kind per car. ( adjustable )
5. What’s power supply required for running automatic car wash machine DG ?
Leisuwash car wash machines require 3 phase industry power supply, in China the standard is 380V/50Hz, if customer require different voltage or frequency, we have to customize motors from Siemens company, and change accordingly fans, low-voltage electrical cables, control units, etc. But must be 3 phase, not 2 phase.
6. How to make installation and after sale service for automatic car wash machine DG ?
* If there’s an exclusive distributor available in your region, you need to buy from distributor and distributor will support your installation, training and after sale service.
* If a distributor can’t be found in your region, we can dispatch technician to support your installation and training, but the
traveling expense should be on customer’s account, this will include visa cost, air tickets cost, hotel with restaurant cost, and customer need to pay for technician salary USD150/day. One machine installation takes about 7 days. ( we provide one technician and customer provide two men to assist )
* Customer is possible to install the machine by themselves, we will have detailed installation and maintenance manual send together with machine.
7. What need to be prepared before machine installation ?
* 3 phase industry power supply, 25Kw.
* Water supply, with a water tank. ( 2000 liters )
* Air compressor with air volume more than 0.67m³/min, could provide stable air pressure more than 0.8Mpa.
* Floor cement thickness need to be more than 20cm, if not enough then need to make six concrete columns for mounting support
frames, floor horizontal error less than 3cm.
* Scaffold 2 pcs.
* Electric Hammer 1 pc, configurated 10, 14, 16 drill each one piece.
* Electric Welder 1 pc.
* Polisher 1 pc.
* Infrared Level 1 pc.
* Rough twine 10 meters.
* Hand Electric Drill 1 pc.
8. What’s the warranty of car wash machine DG?
We offer 3 years extended warranty for complete machine, all spare parts included, within warranty period, if any parts break down, we will compensate new parts at free charge, but warranty doesn’t cover courier expense.
Normally we will ask customers keep some spare parts in stock for machine maintenance, and the compensation spare parts will be sent together with next sea shipment. If customer require to send by courier way, the courier cost should on customer’s account. Meanwhile, warranty is not valid in any of below situation:
* Human damage or operate the machine not follow instruction or under abnormal circumstance.
* Damage due to force majeure, such as wars, floods, earthquakes, lightning, abnormal voltage.
9. What’s shipping volume of car wash machine DG ?
* Leisuwash Model DG: Polywood case for main machine: 3900*1455*3100mm, Polywood case for accessories: 1260*1260*920mm, Polywood case for water pump system: 1340*900*600mm, Polywood case for control box: 470*570*1550mm, Rails: 6pcs ( 330*240*4200 mm) , Frames: 6pcs,
Total Shipping weight about 3220kgs, total Shipping volume about 21CBM.
Because of the 9 meters rails are longer than 20’Ft container, so our machine need to be shipped by 40’Feet container.
10. How to make transportation and how much of it ?
We will deliver containers to destination port by boat, the shipping terms can be EXW, FOB or CIF, the average shipping cost for one machine around USD500~1000 depends on how far the destination port from us. ( dispatching port Ningbo or Shanghai )
11. What is leading time of automatic car wash machine DG ?
If customer require same as China standard three phase industry voltage 380V/50Hz, we can provide fast delivery within two weeks, if different with China standard, the delivery schedule will be 30 days.
Leisuwash DG: 9100×4150×3350mm
2. What’s average time for each car washing?
It’s depends on how many the wash steps, complete wash steps with under chassis wash, pre-soaking, high pressure wash, shampoo, wax,
air dry will takes 6~8 mins, the time could be shorten if remove some of steps.
3. How about the air drying result of automatic car wash machine DG ?
Uses design of air fluid mechanics principle to achieve long-distance high-pressure air cylinder, can reach 90% drying result, the stability with safety are much more better than the profiling air drying in brush wash machine.
4. What’s the cost for washing one car ?
For example in our city Hangzhou, water with electricity cost for one car is about 2RMB, chemicals cost about 1RMB, total 3RMB equals USD0.5
Electricity consumption for one complete wash is about 1KWH.
Water consumption is about 50L per circle ( one car wash takes 2~3 circles )
Chemicals consumption 20~50ml each kind per car. ( adjustable )
5. What’s power supply required for running automatic car wash machine DG ?
Leisuwash car wash machines require 3 phase industry power supply, in China the standard is 380V/50Hz, if customer require different voltage or frequency, we have to customize motors from Siemens company, and change accordingly fans, low-voltage electrical cables, control units, etc. But must be 3 phase, not 2 phase.
6. How to make installation and after sale service for automatic car wash machine DG ?
* If there’s an exclusive distributor available in your region, you need to buy from distributor and distributor will support your installation, training and after sale service.
* If a distributor can’t be found in your region, we can dispatch technician to support your installation and training, but the
traveling expense should be on customer’s account, this will include visa cost, air tickets cost, hotel with restaurant cost, and customer need to pay for technician salary USD150/day. One machine installation takes about 7 days. ( we provide one technician and customer provide two men to assist )
* Customer is possible to install the machine by themselves, we will have detailed installation and maintenance manual send together with machine.
7. What need to be prepared before machine installation ?
* 3 phase industry power supply, 25Kw.
* Water supply, with a water tank. ( 2000 liters )
* Air compressor with air volume more than 0.67m³/min, could provide stable air pressure more than 0.8Mpa.
* Floor cement thickness need to be more than 20cm, if not enough then need to make six concrete columns for mounting support
frames, floor horizontal error less than 3cm.
* Scaffold 2 pcs.
* Electric Hammer 1 pc, configurated 10, 14, 16 drill each one piece.
* Electric Welder 1 pc.
* Polisher 1 pc.
* Infrared Level 1 pc.
* Rough twine 10 meters.
* Hand Electric Drill 1 pc.
8. What’s the warranty of car wash machine DG?
We offer 3 years extended warranty for complete machine, all spare parts included, within warranty period, if any parts break down, we will compensate new parts at free charge, but warranty doesn’t cover courier expense.
Normally we will ask customers keep some spare parts in stock for machine maintenance, and the compensation spare parts will be sent together with next sea shipment. If customer require to send by courier way, the courier cost should on customer’s account. Meanwhile, warranty is not valid in any of below situation:
* Human damage or operate the machine not follow instruction or under abnormal circumstance.
* Damage due to force majeure, such as wars, floods, earthquakes, lightning, abnormal voltage.
9. What’s shipping volume of car wash machine DG ?
* Leisuwash Model DG: Polywood case for main machine: 3900*1455*3100mm, Polywood case for accessories: 1260*1260*920mm, Polywood case for water pump system: 1340*900*600mm, Polywood case for control box: 470*570*1550mm, Rails: 6pcs ( 330*240*4200 mm) , Frames: 6pcs,
Total Shipping weight about 3220kgs, total Shipping volume about 21CBM.
Because of the 9 meters rails are longer than 20’Ft container, so our machine need to be shipped by 40’Feet container.
10. How to make transportation and how much of it ?
We will deliver containers to destination port by boat, the shipping terms can be EXW, FOB or CIF, the average shipping cost for one machine around USD500~1000 depends on how far the destination port from us. ( dispatching port Ningbo or Shanghai )
11. What is leading time of automatic car wash machine DG ?
If customer require same as China standard three phase industry voltage 380V/50Hz, we can provide fast delivery within two weeks, if different with China standard, the delivery schedule will be 30 days.
