factory direct sales farm insect hydraulic conditioner hay mower Grass squeezing Disc lawn mower

factory direct sales farm insect hydraulic conditioner hay mower Grass squeezing Disc lawn mower

FOB Reference Price: Get Latest Price

≥1 Sets

US $5990

≥5 Sets

US $5900

≥10 Sets

US $5890

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Use:: Lawn Mower

Place of Origin:: Hebei, China

Brand Name:: Shuoxin

Fitted with:: protective cover

Apply:: farm

Blade:: can repllacement

Structure:: simple

Application:: lawn mow

Color:: yellow red

Key words:: Rotary type

Scope:: crops

Drive type:: transmission shaft

Quick Details

Weight (KG):: 820

Marketing Type:: New Product 2023

Type:: Rotary disc, Disc mower

Use:: Lawn Mower

Place of Origin:: Hebei, China

Brand Name:: Shuoxin

Fitted with:: protective cover

Apply:: farm

Blade:: can repllacement

Structure:: simple

Application:: lawn mow

Color:: yellow red

Key words:: Rotary type

Scope:: crops

Drive type:: transmission shaft

Products Description

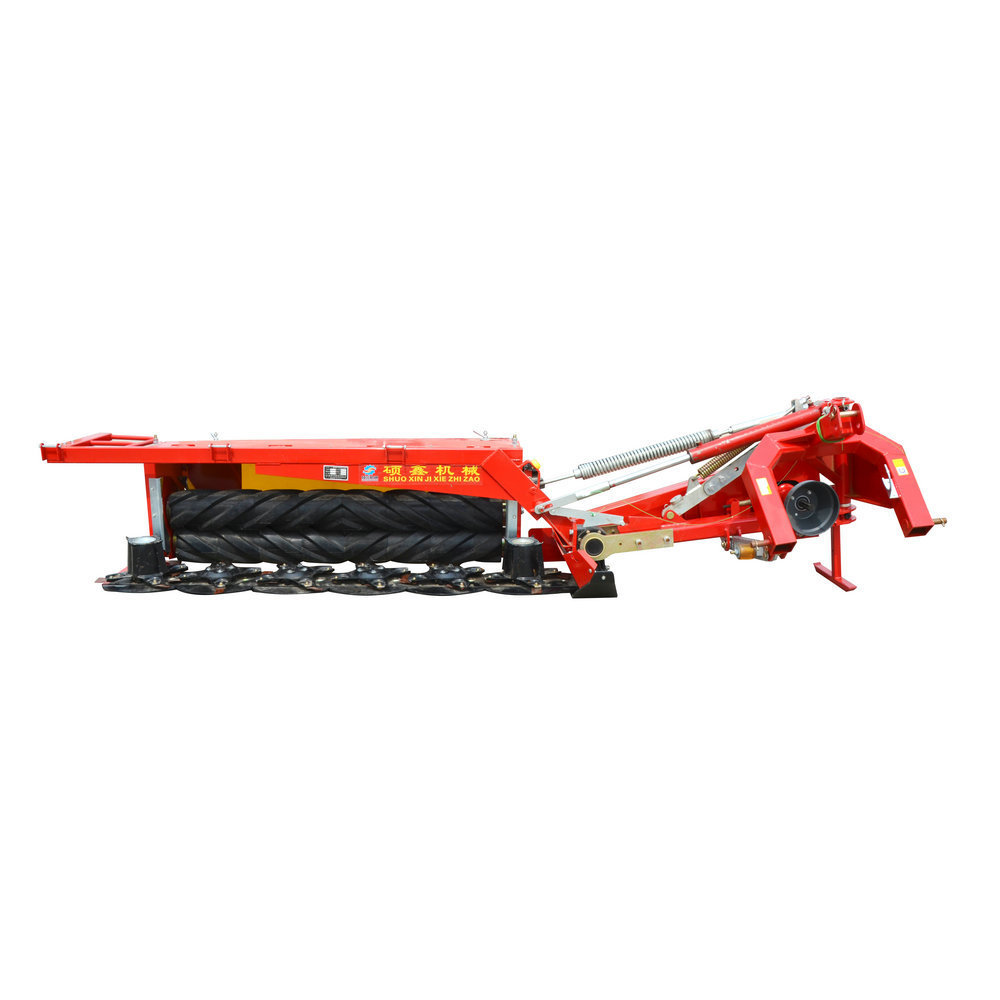

Disc Mower with crusher/ Squeeze Mower

Animal feed which is clean and rich in terms of energy is the main principle of a profitable stock breeding.

The compressed rollerss group equalizes drying time of the leaf and stem through squeezing out the sap of the crop with the help of helical rubber compressing system in order to help the cut crop wither and dry faster.

Through taking out crop’s sap without wasting its nutritional value, the machine helps the crop to be collected from the field in a short time without dropping leaves.

Squeeze Disc Mower range

consists of 5 discs and 6 discs. Cutting width covers 2.1/2.4 meters.

Width 2.1 Meters With 5 Discs

Width 2.4 Meters With 6 Discs

Details Images

Why choose an Squeeze Mower with crush roller conditioner?

When using the crush roller , the hard stalks are squeezed through the rubber rolls and the delicate, nutrient-rich leaves are protected.

In disc mowers, thanks to the rubber squeezing rollers, the cut grass is notched by crushing (without cutting). Thanks to these notches, the herb dries faster without losing its nutritional values.

The time for the farmer to go to the next process is reduced in this way.

Plants that yield more than one crop per season, such as alfalfa, can be moved to the next irrigation earlier, as the time to remove them from the ground is shortened.

Independent Shaft for the Crusher Rollers

Tight Connection between Rollers

Steel R oller A xle Centre Part

Thick Rubber Roller

3 point linkage mounted & PTO shaft

3 point linkage mounted for hanging and PTO shaft as power support

Heavy 4 belts drive systems & Steering shaft drive

used to power Disc Mowers avoids expensive maintence common to most mower types, and enables long periods of low cost operation.

Iron Belt protection cover

Iron with painting cover to protect the 4 belts

Manganese steel blade

High Strength stainless steel rust resistance knives

Product Paramenters

Model	9G-2.1	9G-2.4
Number of Disc	5	6
Knives/disc	2	2/3
Working Width(m)	2.1	2.4
Dimension(mm)	42001600800	46001600800
Weight(kg)	780	820
Hydraulic	Standard		Optional
Iron Cover	Standard		Optional
Crusher Rollers	Standard
Matched Power(HP)	60-90	100-140
working rate ha	1.6	2

Our Advantages

Advantages of Squeeze Mower

What does The Crusher offer over conventional conditioning rollers?

Full Contact the entire width

Fully conditioned stems – faster dry down

Less leaf loss – more nutrition

Excellent feed-ability into baler

Self cleaning design

Designed for maximum rubber

Trueness – no vibration

No clogging

Bolt on replacement for most models

Recommendations for Choosing the Right Mower		Recommendations for Choosing the Right Mower
Field Size	For larger fields, a drum mower may be more efficient due to its wider cutting width.
Terrain	For rough terrain, the disc mower may be easier to maneuver and transport.
Vegetation	For heavier vegetation, the disc mower may be less prone to clogging and provide a cleaner cut.
Budget	For those on a budget, the drum mower may be a more cost-effective option.
Maintenance	For those with the time and resources for regular maintenance, the disc mower may provide greater longevity and durability.

Comparison of Drum Mower and Disc Mower		Recommendations for Choosing the Right Mower
Cutting Mechanism	The drum mower uses horizontally mounted drums while the disc mower uses rotating discs perpendicular to the ground.
Weight	The drum mower is typically heavier than the disc mower, making it more difficult to maneuver and transport.
Clogging	The disc mower is less prone to clogging than the drum mower.
Cost	The disc mower is typically more expensive than the drum mower.
Maintenance	The disc mower requires more frequent maintenance and replacement of cutting discs and knives than the drum mower.
