Quick Details
-
Place of Origin:
-
Shandong
-
Brand Name:
-
MAGICK
-
Pulse Width:
-
10m
-
Wavelength:
-
1080(+-10)
-
Focal Spot Diameter:
-
1070NM
-
Dimensions:
-
1700*1200*700mm
-
Weight (KG):
-
280 KG
-
Marketing Type:
-
New Product 2023
-
Welding mode:
-
Manual Handheld
-
Usage:
-
Welding
-
Function:
-
Metal Part Laser Welding
Quick Details
-
Max. Output Power:
-
3000W
-
Use:
-
Metal welding
-
Laser Source Brand:
-
RAYCUS
-
Place of Origin:
-
Shandong
-
Brand Name:
-
MAGICK
-
Pulse Width:
-
10m
-
Wavelength:
-
1080(+-10)
-
Focal Spot Diameter:
-
1070NM
-
Dimensions:
-
1700*1200*700mm
-
Weight (KG):
-
280 KG
-
Marketing Type:
-
New Product 2023
-
Welding mode:
-
Manual Handheld
-
Usage:
-
Welding
-
Function:
-
Metal Part Laser Welding

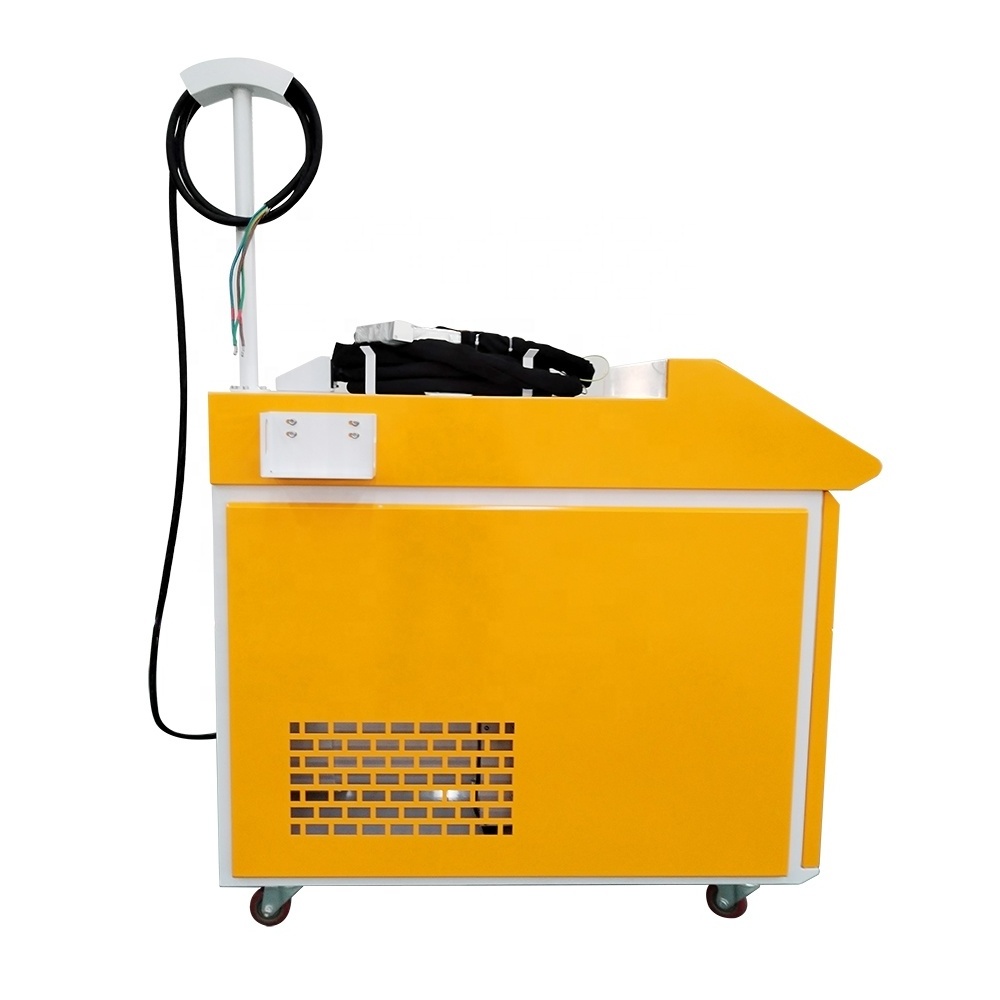

PRODUCT DISCRIPTION
✦
Fast welding speed, beautiful welding seam, less spatter!
✦
Simple operation, novices can get started quickly!
✦
Warranty for 2 years, full guidance!
✦
Thin plate welding, not easy to weld through, more accurate!
SPECIFICATION
|
Model
|
MK-HW1000/HW1500/HW2000W
|
|
Laser power
|
1000/1500/2000W
|
|
Laser wavelength
|
1080+-10nm
|
|
Beam quality
|
1.3m²
|
|
Work patterns
|
Continuous
|
|
Power required
|
AC220V / 380V
|
|
Output fiber length
|
5/10/15m (Optional)
|
|
Cooling method
|
Water Cooling
|
|
Cooling water temperature
|
5-45℃
|
|
Average consumed power
|
2500/2800/3500/4000W
|
|
Laser Energy Stability
|
<2%
|
|
Air humidity
|
10-90%
|
1. About Fiber Cable Length
Usually standard length is 10M, if you have other needs, we support shortening or lengthening.
2. Auxiliary gas: nitrogen or argon
If the welding surface effect is required to be white and bright, nitrogen or argon is required
If there is no requirement for the welding surface, add compressed air freeze Dryer, air is ok.
3. About wire feeder
It's the machine standard configuration, we will send to you together with the whole machine.
4. Machine warranty
Our laser welding machine warranty is 2 years, we have professional after sale group, 24 hour online
Usually standard length is 10M, if you have other needs, we support shortening or lengthening.
2. Auxiliary gas: nitrogen or argon
If the welding surface effect is required to be white and bright, nitrogen or argon is required
If there is no requirement for the welding surface, add compressed air freeze Dryer, air is ok.
3. About wire feeder
It's the machine standard configuration, we will send to you together with the whole machine.
4. Machine warranty
Our laser welding machine warranty is 2 years, we have professional after sale group, 24 hour online
Functions Of Each Parts
Fiber laser generator MAX 1000w
MAX 1000W single module CW fiber laser has high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation.
Controller system Gefast Three in one
Support continuous welding, cleaning, spot welding, cutting, automatic welding control, password authorization and other functions.
Super (Gefast)Laser Welding Head
Hand-held laser welding, laser cleaning, laser cutting integrated system.The working mode can be freely switched according to different application scenarios, providing diversified solutions for different application needs of users.
Water Chiller
Special field hand-held welding laser chiller can meet the cooling needs of 1500W hand-held laser welding machine; the temperature control accuracy can reach ±0.5°C, and the dual-temperature design can meet the cooling requirements of the laser body and welding head at the same time.
Applications Industry and Samples
Fiber Laser welding machine is suitable for welding gold, silver, titanium, nickel, tin, copper, aluminum and other metals and their alloy materials. It can achieve the same precision welding between metals and dissimilar metals. It has been widely used in
aerospace, shipbuilding, and instrumentation. , Mechanical and electrical products, automobiles and other industries.
aerospace, shipbuilding, and instrumentation. , Mechanical and electrical products, automobiles and other industries.
Welding Material Parameter
for your reference, different materials, different welding parameters, limited by the section, directly display a part.
If You want to know more about the parameter, please contact us directly, 24 hours online
If You want to know more about the parameter, please contact us directly, 24 hours online
FAQ
A) How could I get a sample?
B) Sample time? Existing items:
C) Whether you could make our brand on your products?
D) Whether you could make your products as our requirements?
E) How to guarantee the quality of your products?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B) Sample time? Existing items:
Within 3-5 days.
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
D) Whether you could make your products as our requirements?
Yes, The products can be customized if you can meet our MOQ.
E) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
