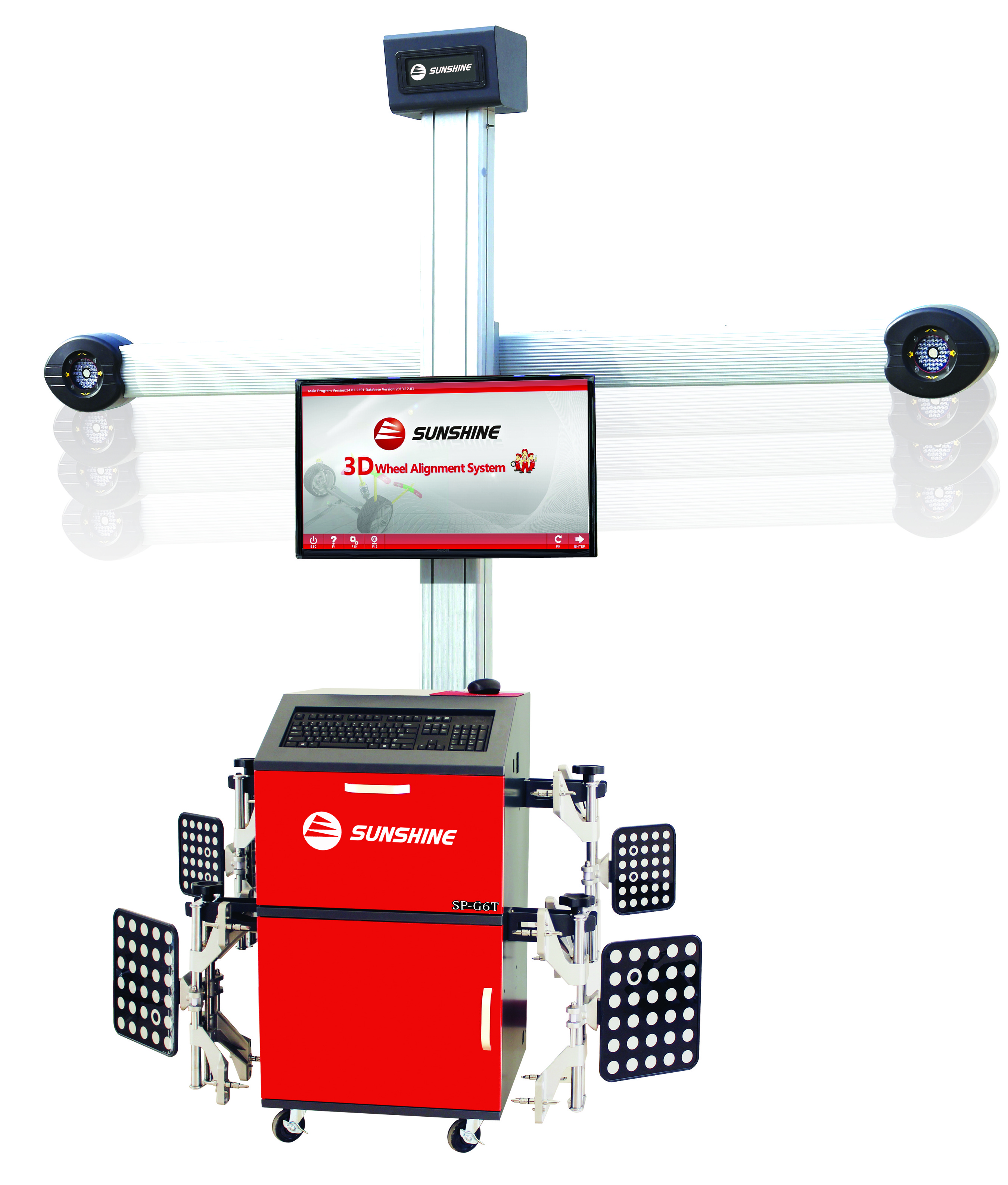

Wheel Alignment Equipment High Precise SP-G6T 3D Test Wheel Balancing Alignment Machines Used Customised CE / ISO9001 Sunshine

Wheel Alignment Equipment High Precise SP-G6T 3D Test Wheel Balancing Alignment Machines Used Customised CE / ISO9001 Sunshine

FOB Reference Price: Get Latest Price

≥1 Sets

US $4900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Max. Wheel Weight:: 0

Place of Origin:: Shandong, China

Brand Name:: Sunshine

Model Number:: SP-G6T

Warranty:: 1 Years

Certification:: CE / ISO9001

Keywords:: 3D Four Wheel Alignment

Function:: Test Wheel Balancing

Color:: Customised

Application:: Alignment Machines Used

Feature:: 3D wheel alignment

Product Name:: 3D Wheel Alignment Machine

Quick Details

Power:: 100w

Power Supply:: 220V, 50JZ/60HZ

Balancing Speed:: 0

Max. Wheel Weight:: 0

Place of Origin:: Shandong, China

Brand Name:: Sunshine

Model Number:: SP-G6T

Warranty:: 1 Years

Certification:: CE / ISO9001

Keywords:: 3D Four Wheel Alignment

Function:: Test Wheel Balancing

Color:: Customised

Application:: Alignment Machines Used

Feature:: 3D wheel alignment

Product Name:: 3D Wheel Alignment Machine

Product description

Platform Choice:
1.scissor lift(recommend):The ideal platform for 3D alignment,the length is more than 4000mm;
2.Four post lift:require the distance between the left and right posts is more than 2700mm.

Products Advantages:

Automatic tracking beam,technician can make measurement and adjustment on different of lifting levels . 6.4MP high accuracy camera.

with 32''LED TV and 19″LCD display, fully shows glamour of 3D technology. Self-developed ultimate 3D software, showing honour of high-level customer.

Adopt exclusive height target plate and software, precise measurement of vehicle body height.

Camera automatic tracking:

Precise measurement of vehicle body height

Suitable for checking plenty of vehicle models.

Standard Configuration:

Deluxe cabinet, Electric movable post, DELL computer , Mini Target plates, Three-fingers clamp, Brake fixer, Steering wheel fixer,Wedge pads, Aluminum alloy turntables ,Turntable transition blocks, Exclusive height target plate.

Parameters measurement such as camber, Caster, Kingpin inclination, Toe-in & Toe-out, Set back, Thrust angle.

Technical data

Measurement item	Display accuracy	Camber	Caster	Kingpin Inclination	Toe-in & Toe-out	Set back	Thrust angle	Wheel Deviation	Axis Deviation
Accuracy	1´/0.01°0.1mm	±2´	±6´	±6´	±2´	±2´	±2´	±2mm	±2mm
Measurement range	1´/0.01°0.1mm	±10°	±20°	±23°	±20°	±5°	±5°

Software Features
Basic Functions:
parameters measurement such as camber, Caster, Kingpin inclination, Toe-in & Toe-out, Set back, Thrust angle
Extension Functions:

Removing Tire Adjustment(Purchasing Rim adapter),

Body Dimension Measurement,

Steering Wheel Adjustment,

Engine Bay Adjustment,

Toe Curvature Measurement(Purchasing B5 Tool Kits),

Lock Toe Adjustment,

Camber Measurement of Zero Toe,

Scrub Radius Measurement,Rolling Radius Measurement,

Body Height Measurement

Automatic tracking beam
