# HMA0808A20
This 8x8 HDMI matrix routes 8 Ultra HD sources to eight 4K Ultra HD displays with HDMI inputs. Each source can be routed to any display, using the front-panel buttons or the IR Remote Control. The matrix can also be controlled via RS-232, IP interface.
- Product Details
- {{item.text}}
Quick Details
-
Input:
-
8 HDMI
-
Output:
-
8 HDMI
-
Feature:
-
Smart EDID management
-
Control:
-
IR receiver, front keypad and PC
-
Support:
-
8 configurable user preset
-
Material:
-
Metal
-
HDCP version:
-
Not compatible
-
Function:
-
memorized after power down
Quick Details
-
Model Number:
-
HMA0808A20
-
Product name:
-
8x8 HDMI Matrix
-
Resolution:
-
3840*2160@30Hz
-
Input:
-
8 HDMI
-
Output:
-
8 HDMI
-
Feature:
-
Smart EDID management
-
Control:
-
IR receiver, front keypad and PC
-
Support:
-
8 configurable user preset
-
Material:
-
Metal
-
HDCP version:
-
Not compatible
-
Function:
-
memorized after power down
Products Description

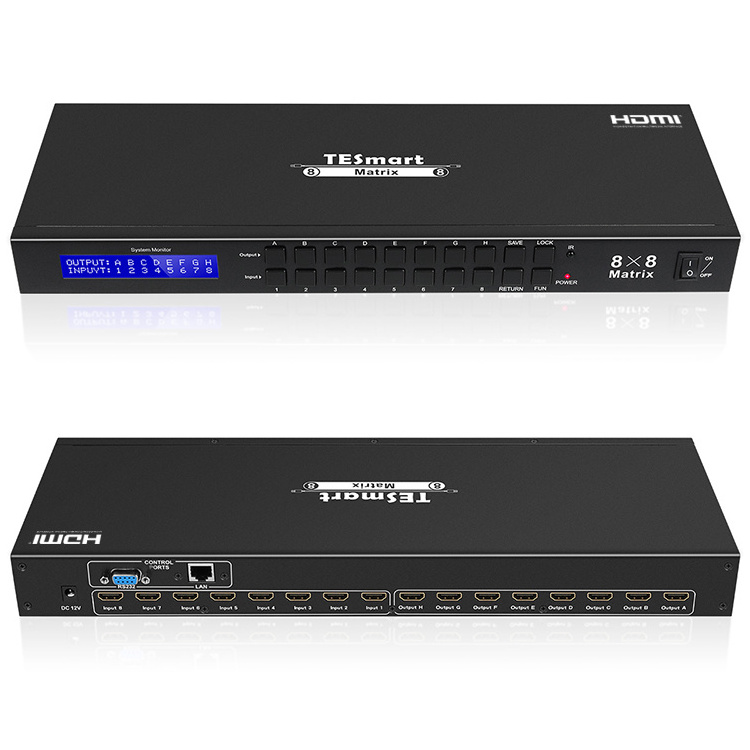

8x8 HDMI Matrix
Features:
⭐Max. resolution up to 3840*2160@30Hz.
⭐Each HDMI output can share same input or select standalone input.
⭐Supports PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio format.
⭐Smart EDID management, make it compatible with most display devices.
⭐Matrix status could be memorized after power down, automatically restore previous matrix status after next power on.
⭐Easy control matrix via IR receiver, front keypad and PC (via LAN or RS232 port).
⭐Easy to view real time inputs and outputs status via LCD display.
⭐Supports 8 configurable user preset connections.
⭐Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters.
⭐Not compatible with HDCP protocol.
Packing List
1 * 8x8 HDMI Matrix
1 * IR Remote control
2 * Rack-ears
1 * DC 12V 2A Power Adapter
1 * User manual
Specification
|
HMA0808A20
|
|
8x8 HDMI Matrix
|
|
|||
|
Functionality
|
|
|
|
|||
|
Port selection
|
Front panel buttons
|
|
Yes
|
|||
|
|
Console commands
|
|
RS232 / IP
|
|||
|
|
IR remote control
|
|
Yes
|
|||
|
LCD Display
|
|
24x2 characters
|
|
|||
|
OSD
|
|
No
|
|
|||
|
Smart EDID
|
|
Yes
|
|
|||
|
Technical
|
|
|
|
|||
|
Resolution
|
|
Up to 3840x2160@30Hz/ 1080P@60Hz 3D
|
|
|||
|
HDCP
|
|
No
|
|
|||
|
Data rate
|
|
10.2 Gbps
|
|
|||
|
Input
|
|
8*HDMI Type A, 24/26 AWG HDMI cable up to 10M
|
|
|||
|
Output
|
|
8*HDMI Type A, 24/26 AWG HDMI cable up to 20M
|
|
|||
|
ESD protection
|
|
Human body model - ±8kV (Air-gap discharge)
|
|
|||
|
Mechanical
|
|
|
|
|||
|
Chasing material
|
|
Metal
|
|
|||
|
Product Dimensions
|
|
440(L) x 150 (W) x 45 (H) mm
|
|
|||
|
Item Weight
|
|
2000 g
|
|
|||
|
Power supply
|
|
DC 12V 2A
|
|
|||
|
Operating/Storage temperature
|
|
0 to 70 degree/-40 to 85 degree
|
|
|||
|
Operating Humidity
|
|
10 to 90% RH
|
|
|||
