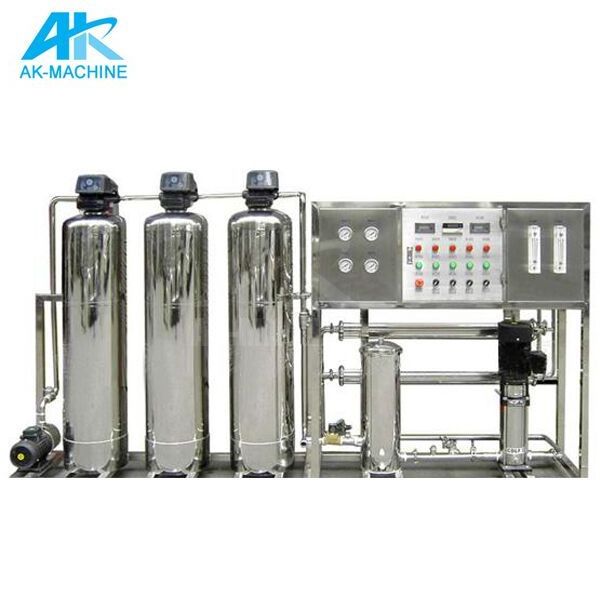

RO Filter Water Purifier Treatment System / Sand Filter Water Treatment Machine With Pure Water Treatment Application

RO Filter Water Purifier Treatment System / Sand Filter Water Treatment Machine With Pure Water Treatment Application

FOB Reference Price: Get Latest Price

≥1 Sets

US $4500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 500KG

Size:: 1.8*0.8*1.7

Power:: 12KW

Application:: RO Filter Water Purifier Treatment System

Capacity:: 1000LPH

Certification:: CE ISO

Model:: RO-1000

Processing:: Sand Filter Water Treatment Machine

MOQ:: 1 Set

Filter Type:: Stainless Steel Filter Housing

Advantage:: Simple Installation

Technology:: water treatment application

After Warranty Service:: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location:: Italy, Germany, Viet Nam, Peru, Indonesia, Mexico, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, Kazakhstan, Ukraine, Uzbekistan

After-sales Service Provided:: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support

Quick Details

Place of Origin:: Jiangsu

Brand Name:: AK-MACHINE

Material:: Wooden Case, Stainless Steel 304

Weight:: 500KG

Size:: 1.8*0.8*1.7

Power:: 12KW

Application:: RO Filter Water Purifier Treatment System

Capacity:: 1000LPH

Certification:: CE ISO

Model:: RO-1000

Processing:: Sand Filter Water Treatment Machine

MOQ:: 1 Set

Filter Type:: Stainless Steel Filter Housing

Advantage:: Simple Installation

Technology:: water treatment application

After Warranty Service:: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location:: Italy, Germany, Viet Nam, Peru, Indonesia, Mexico, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, Kazakhstan, Ukraine, Uzbekistan

After-sales Service Provided:: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support

Products Description

RO Filter Water Purifier Treatment System / Sand Filter Water Treatment Machine With Pure Water Treatment Application

Production Capacity	250L-10000L per hour
TDS range	500-700（one stage）
Water resouce1	river water,well water,
Water resouce2	underground water,rain water,tap water
Process system	RO Reverse osmosis
Machine Material	Stainless Steel 304
Application	drinking water table water juice soft drink

Raw water→raw water tank → raw water booster pump→mechanical filter→activated carbon filter →precise filter →high-pressure pump
→Reverse Osmosis Components→pure water tank→pure water

Details Images

Raw water pump

We use high quality CNP pump as raw water pump.Requested access to the system's raw water has a stable flow and pressure, its
purpose is to prevent water fluctuations have an impact on the system operation to ensure the stability of the system into the
water.

pretreatment process

1.Silica sand filter:It can remove the suspended solids and gluten particles in the water, thus reduce turbidity of water.
2.Active carbon filter:It can remove the pigment, smell and a large number of biological organisms in the water. 3.Sodium ion
exchanger :It can remove calcium and magnesium ions in the water, so as to soften the water. 4.Precision filter:It can ensure that
granularity of the water into reverse osmosis membrane is less than 0.1 um.

quartz sand filter

Raw water into the filter for a simple mechanical filter, mainly to remove suspended solids in water, colloidal particles and
other large impurities in the water when the water pressure and the pressure difference over 10Psi (0.7kg/cm2) or water SDI> 5,
the need for backwashing . In general, before running back wash once a day.

activated carbon filter

Activated carbon is used wood, coal, shell (nuclear) and other carbonaceous material through chemical or physical method
activation made. It has a very large number of pores and specific surface area, which has a strong physical adsorption capacity,
the effective adsorption of organic pollutants in water. Primarily to remove organic matter in raw water, chlorine, odor, color,
etc., so that the original residual chlorine in water ≤ 0.1mg / l, effective protection of RO membrane from chlorine damage to
parts of activated carbon

water softer

The sodium ion exchange softening is used to remove water calcium and magnesium ions , preparation of demineralized water of ion
exchange . The composition of the water hardness , calcium, magnesium , and softening in the ion exchange resin to exchange the
water calcium and magnesium ions by sodium ion exchange , so that the water is not easy to form carbonate scale and sulfate scale
, resulting in softened water

Precision Filter

The precision filter, also known as cartridge filter housing,
is used to prevent impurities like particles from entering high pressure pump and reverse osmosis membrane module.
The filtration precision ranges form 0.10μm to 60μm and it is free from influences feed pressure fluctuation.

RO main machine

This system uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids
in raw water, sediment particles, organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a
reverse osmosis desalination plant to remove the raw water Most of the dissolved salts, bacteria, hot stream and so on, to ensure
finished water quality standards.

ozone mixing tower and generator

Ozone generator is used to produce ozone and provide raw materials for mixing tower. The ozone mixing tank is a kind of water
treatment equipment. It is to fully mix water and ozone, thus achieving purposes of sterilization, retaining freshness and
avoiding secondary pollution for the producing of mineral pure water.
