Quick Details
-
Marketing Type:
-
New Product 2023
-
Production Capacity:
-
99
-
Power:
-
92kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
new curber
-
Dimension(L*W*H):
-
6800*2650*3000mm
-
Maximum side paving height:
-
1300mm
-
Maximum paving width:
-
2000mm
-
Paving speed:
-
0~15m/min
-
Travel speed:
-
0~35m/min
-
Engine model:
-
YCF36125-T482
-
Rated power/speed:
-
92kW/2200r/min
-
Diesel tank capacity:
-
360L
-
Climbing capacity:
-
≥ 25%
-
Vibrating rod interface:
-
7
-
Vibrating rod frequency:
-
0~200Hz
Quick Details
-
Max. Paving Thickness:
-
300CM
-
Weight:
-
14000 kg
-
Engine Brand:
-
YUCHAI
-
Marketing Type:
-
New Product 2023
-
Production Capacity:
-
99
-
Power:
-
92kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
new curber
-
Dimension(L*W*H):
-
6800*2650*3000mm
-
Maximum side paving height:
-
1300mm
-
Maximum paving width:
-
2000mm
-
Paving speed:
-
0~15m/min
-
Travel speed:
-
0~35m/min
-
Engine model:
-
YCF36125-T482
-
Rated power/speed:
-
92kW/2200r/min
-
Diesel tank capacity:
-
360L
-
Climbing capacity:
-
≥ 25%
-
Vibrating rod interface:
-
7
-
Vibrating rod frequency:
-
0~200Hz
Product Overview

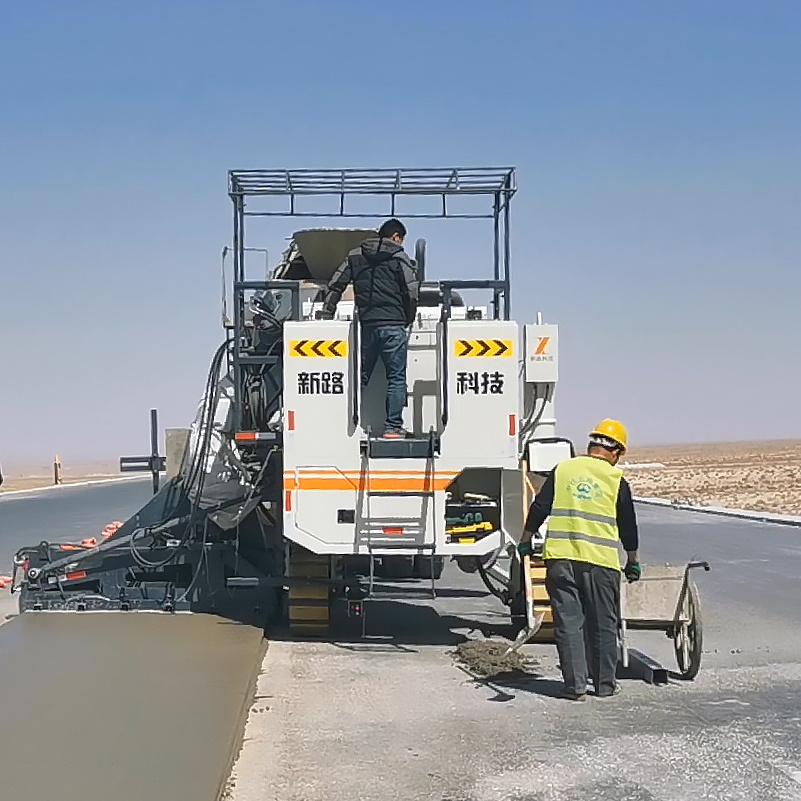

NC1300S concrete slip form paver
NC1300S concrete slip form paver One machine is multi-purpose and can realize various mold configuration modes. It is widely used in the construction fields of road drainage ditches, drainage channels, curbs, shoulder stones, concrete guardrails, cement concrete structures, farmland water conservancy ditches, etc., replacing the traditional process and significantly improving the construction quality and speed of cement concrete structures.
The machine has a large power reserve, full electronic control, full hydraulic power drive, proportional control, three-track walking, and is equipped with automatic steering and automatic leveling control system. It can complete the vibration, paving, extrusion and other technological processes of cement concrete structures at one time.
Product Specifications
The NC1300S excels in curbing, sidewalk, barrier, ditches, paving, tunnel, agricultural and specialized applications.
|
No
|
Item
|
Item
|
Data
|
|
|
1
|
Basic performance parameters
|
Maximum side paving height
|
1300mm
|
|
|
|
|
Maximum paving width
|
2000mm
|
|
|
|
|
Paving speed
|
0~15m/min
|
|
|
|
|
Travel speed
|
0~35m/min
|
|
|
2
|
Powertrain
|
Engine model
|
YCF36125-T482
|
|
|
|
|
Rated power/speed
|
92kW/2200r/min
|
|
|
|
|
Diesel tank capacity
|
360L
|
|
|
3
|
Walking system
|
Track width
|
300mm
|
|
|
|
|
Track length
|
1600mm
|
|
|
|
|
Climbing capacity
|
≥ 25%
|
|
|
4
|
Outrigger steering lifting device
|
Minimum turning radius
|
4200mm
|
|
|
|
|
Outrigger hydraulic lifting stroke
|
915mm
|
|
|
|
|
Outrigger mechanical adjustment stroke
|
280mm
|
|
|
5
|
Hydraulic system
|
Load sensitive dual-pump hydraulic system, proportional control walking, outrigger turning and lifting, vibrating rod and auger
feeding |
|
|
|
6
|
Electrical control system
|
Configure two longitudinal slope sensors, one transverse slope sensor and one steering sensor; Electronic automatic control is
adopted for longitudinal slope, cross slope and steering |
|
|
|
7
|
Auger conveyor
|
Twister speed
|
0~80r/min
|
|
|
|
|
The size of the auger feeding device is 3700mm long, and the blade diameter is 340mm
|
|
|
|
8
|
Vibrating compaction system
|
Hydraulic vibrator interface
|
6
|
|
|
|
|
Vibrating rod frequency
|
0~200Hz
|
|
|
9
|
High-pressure flushing device
|
Hydraulic driven high pressure ceramic plunger pump
|
|
|
|
|
|
water tank capacity
|
240L
|
|
|
10
|
Mold and mold fixture
|
Hydraulic horizontal stroke of mold fixture
|
770mm
|
|
|
|
|
Hydraulic vertical stroke of mold fixture (double oil cylinder)
|
410mm
|
|
|
|
|
Mechanical vertical stroke of mold fixture
|
240mm
|
|
|
11
|
Overall dimension and weight (transportation status)
|
Transport dimension (long × wide × High)
|
6800×2650×3000mm
|
|
|
|
|
Operating Weight
|
14000Kg
|
|
