Quick Details
-
Warranty:
-
2 Years
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
HUILIDE
-
Model Number:
-
HDSL
-
Product name:
-
16mm PEX QUICK EASY RING Pex Expansion Ring
-
Material:
-
PEXA
-
Application:
-
Connection PPSU fittings to PEX pipe
-
Color:
-
Nature and customized
-
Standard:
-
ISO15875.3 / ASTM F1960
-
Feature:
-
Corrosion Resistant,easy installation
-
Packing:
-
Carton
-
Size:
-
16-32mm
-
Working Temperature:
-
95 deg
-
Lifespan:
-
more than 50 years
Quick Details
-
Technics:
-
Forged
-
Shape:
-
Equal
-
Head Code:
-
round
-
Warranty:
-
2 Years
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
HUILIDE
-
Model Number:
-
HDSL
-
Product name:
-
16mm PEX QUICK EASY RING Pex Expansion Ring
-
Material:
-
PEXA
-
Application:
-
Connection PPSU fittings to PEX pipe
-
Color:
-
Nature and customized
-
Standard:
-
ISO15875.3 / ASTM F1960
-
Feature:
-
Corrosion Resistant,easy installation
-
Packing:
-
Carton
-
Size:
-
16-32mm
-
Working Temperature:
-
95 deg
-
Lifespan:
-
more than 50 years
Products Description

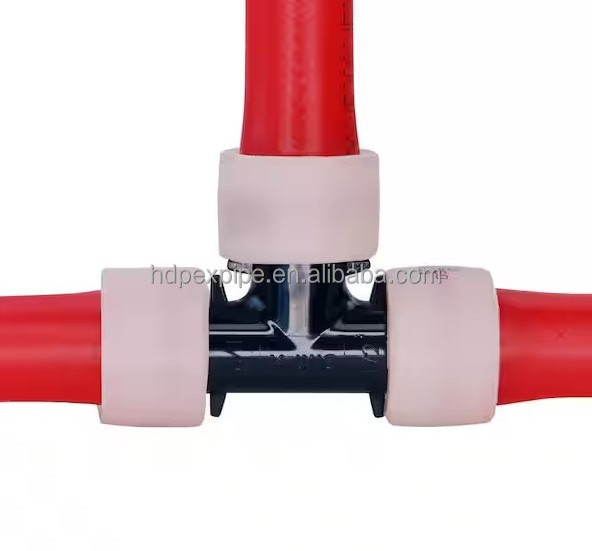

PE-Xa Expansiosn Rings for cold expansion fittings are designed with a stop edge , they are used in
conjunction with a PEX expansion tool (expander) when installing PE-Xa type pipes with
expansion style brass or poly PEX fittings. The characteristic of our PE-Xa rings are high cross
linking degree up to 85%,compatible with our PE-Xa pipes very well.
conjunction with a PEX expansion tool (expander) when installing PE-Xa type pipes with
expansion style brass or poly PEX fittings. The characteristic of our PE-Xa rings are high cross
linking degree up to 85%,compatible with our PE-Xa pipes very well.
Made to ISO15875.3 / ASTM F1960 standard.
Specifications:
|
Code
|
Size
|
|
HDSL01
|
DN16
|
|
HDSL02
|
DN20
|
|
HDSL03
|
DN25
|
|
HDSL04
|
DN32
|
|
Size
|
Inner Diameter
|
Thickenss
|
Height
|
Material
|
Application
|
|
3/8''
|
12.34 ± 0.10 mm
|
3.12 ± 0.15 mm
|
13.72 ± 0.51 mm
|
PEX
|
PEX Tubing
|
|
1/2''
|
16.08 ± 0.08 mm
|
3.12 ± 0.13 mm
|
16.00 ± 0.51 mm
|
PEX
|
PEX Tubing
|
|
3/4''
|
22.40 ± 0.10 mm
|
3.12 ± 0.13 mm
|
22.0 ± 0.51 mm
|
PEX
|
PEX Tubing
|
|
1''
|
28.80 ± 0.10 mm
|
3.63 ± 0.15 mm
|
27.99 ± 0.76 mm
|
PEX
|
PEX Tubing
|
|
2''
|
54.71 ±0.10 mm
|
5.99 ± 0.30 mm
|
49.99 ± 1.01 mm
|
PEX
|
PEX Tubing
|
Physical and chemical characteristics:
|
Item
|
Requirements
|
Test parameter
|
|
|
|
|
||||
|
|
|
Hydrostatic tension
|
|
Test temperature
|
|
Time
|
||||
|
Hydrostatic resistance
|
No leakage,no crack
|
12.0
|
|
20
|
|
1
|
||||
|
|
|
4.8
|
|
95
|
|
1
|
||||
|
|
|
4.7
|
|
95
|
|
22
|
||||
|
|
|
4.6
|
|
95
|
|
165
|
||||
|
|
|
4.4
|
|
95
|
|
1000
|
||||
|
Thermal stability
|
No leakage,no crack
|
2.5
|
|
110
|
|
8760
|
||||
|
Longitudinal retraction rate
|
≤3%
|
Temperature
|
|
120℃
|
|
|
||||
|
|
|
en≤8mm
|
|
1h
|
|
|
||||
|
|
|
8mm＜en≤16mm
|
|
2h
|
|
|
||||
|
|
|
en＞16mm
|
|
4h
|
|
|
||||
|
|
|
Test quantity
|
|
3
|
|
|
||||
|
5000 times thermal cycle
|
No leakage,no crack
|
Temperature of cold water
|
Temperature of hot water
|
System pressure
|
Time/cycle of cold water
|
Time/cycle of hot water
|
||||
|
|
|
20℃
|
90℃
|
0.6Mpa
|
15min
|
15min
|
||||
Product Application
Applications:
1.Plumbing pipe for cold and hot water
2.Floor radiant heating system
3.Industrial installation
4.Air conditioning installation
5.Livestock facilities
6.Refrigeration installation and water treatment facilities
7.Irrigation installation for garden and greenhouse
Raw Materials
|
Material Features
|
|
|
|
Density
|
0.951 g/cm3
|
|
|
Thermal conductivity
|
0.4 W/m·k
|
|
|
VICAT softening temperature
|
130-132 ℃
|
|
|
Maximum temperature of function
|
110 ℃
|
|
|
Coefficient of linear thermal expansion
|
0.15 mm/moK
|
|
Installation Instructions
