Quick Details
-
Model Number:
-
SUW-25
-
Type:
-
Solenoid valve, SOLENOID VALVES
-
Brand Name:
-
MIT-UNID-CNS
-
Orifice:
-
25mm
-
Fluid Temp:
-
Standard:-5~80℃,Option:-5~130℃
-
Operating Pressure:
-
Standard:0-7Bar,Option:0-20Bar
Quick Details
-
Port Size:
-
1 ''
-
Warranty:
-
1 years
-
Place of Origin:
-
CHN
-
Model Number:
-
SUW-25
-
Type:
-
Solenoid valve, SOLENOID VALVES
-
Brand Name:
-
MIT-UNID-CNS
-
Orifice:
-
25mm
-
Fluid Temp:
-
Standard:-5~80℃,Option:-5~130℃
-
Operating Pressure:
-
Standard:0-7Bar,Option:0-20Bar
About Us
Products Description
|
Model
|
|
SUW-25
|
|
|
|||
|
1Pipe Size
|
|
1 " DN25
|
|
|
|||
|
Control Mode
|
|
Normally Closed
|
|
|
|||
|
Valve Body
|
|
Stainless Steel SS316
|
|
|
|||
|
Conncetion
|
|
Thread,Standard:BSPT,Optional:BSP,NPT
|
|
|
|||
|
Voltage
|
|
DC:12V,24V,36V;AC:24V,36V,110V,220V,380V,440V
|
|
|
|||
|
Fluid Temp
|
|
Standard:-5～80℃;Optional:-5~130℃
|
|
|
|||
|
Operating Pressure
|
|
Standard:0-7Bar;Optional:0-20Bar
|
|
|
|||
|
Feature
|
|
Direct-acting,Able to be Operated without Pressure
|
|
|
|||
|
Applicable Fluid
|
|
Standard:Water,Air,Light Oil;ptional:Vacuum,Gas
|
|
|
|||
|
Certificate
|
|
CE,CSA
|
|
|
|||
|

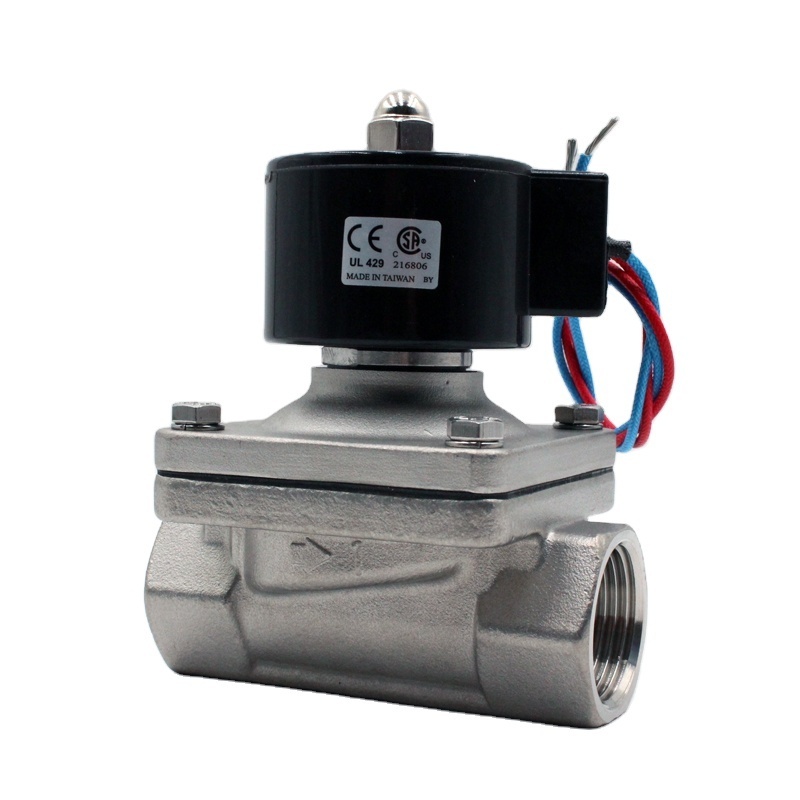

Product Introduction
|
|
SUW-15~50 series is direct,multiplex connected diaphragm,conductive and normally closed solenoid valve, large flow, threaded port.
The models are SUW-15, SUW-20, SUW-25, SUW-35, SUW-40, and SUW-50,espectively. The corresponding pipe diameters are 1/2 ", 3/4", 1 ", 1-1/4", 1-1/2 ", and 2". The valve body of this series of solenoid valves is made of stainless steel, and the diaphragm is NBR. You can also customize the diaphragm made of VITON, SILICONE, and EPDM, which is suitable for water, air, light oil, It can be customized for vacuum use or high-pressure type. |
|
|
|||
