Quick Details
-
Part name:
-
track chain pin press
-
Fit machines:
-
C45-PC400,E70-D9L,D20--D155
-
Colors:
-
Black,Yellow
-
Usage:
-
track repair,track pin puller
-
Fit link pitch:
-
135,171,175,190,203,216,228mm
-
Warranty time:
-
2000~3000 hours
-
Certification:
-
ISO9001-2008
-
Delivery Time:
-
Within 15 days after contract established
-
Packing:
-
standard exported pallet or box
Quick Details
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YSG
-
Part name:
-
track chain pin press
-
Fit machines:
-
C45-PC400,E70-D9L,D20--D155
-
Colors:
-
Black,Yellow
-
Usage:
-
track repair,track pin puller
-
Fit link pitch:
-
135,171,175,190,203,216,228mm
-
Warranty time:
-
2000~3000 hours
-
Certification:
-
ISO9001-2008
-
Delivery Time:
-
Within 15 days after contract established
-
Packing:
-
standard exported pallet or box
Product Description

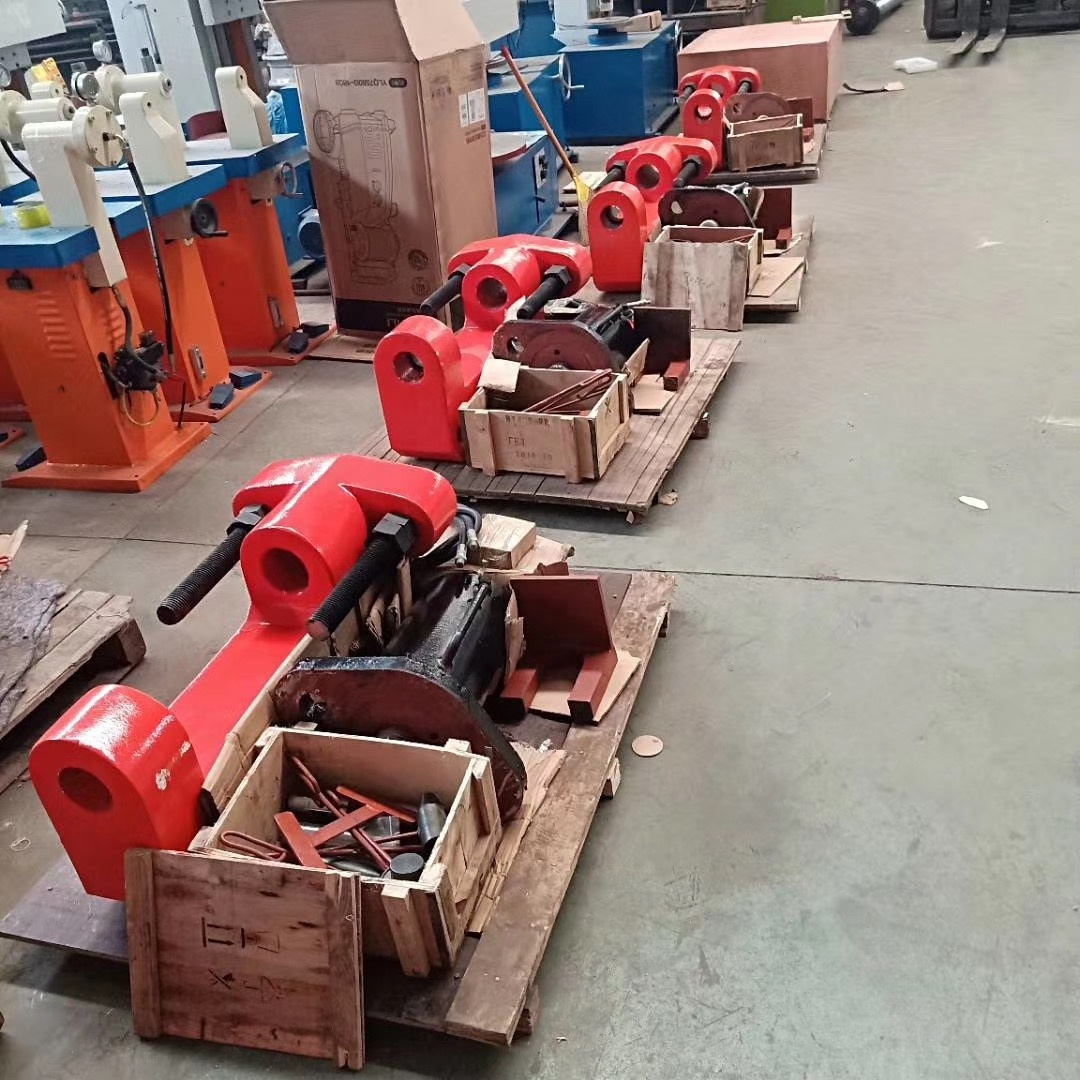

The track link pin press is a special tool by utilizing the conversion from hydraulic energy into mechanical energy to
dis-assembly the track pin of a crawler excavator. Manual, electrical or manual and electrical pump is used as a power source to move the hydraulic jack forward so that the pin can be removed smoothly. Instead of gas cutting and hammering, it ensures that the track is intact. It is an ideal special tool for track excavator maintenance and assembly. Hydraulic system of electrically driven track press: hydraulic system (pump station) is installed on the right side of the host. The entire hydraulic control system drives the high-pressure pump to input the pressure oil through the motor. After the solenoid reversing valve, the oil is respectively input to enable the cylinder plunger to reciprocate up and down. In the neutral position,the system is unloaded and the oil flow goes into the tank. The press is electro-hydraulic controlled. Extra hand pump can be equipped for field operation without power supply.
dis-assembly the track pin of a crawler excavator. Manual, electrical or manual and electrical pump is used as a power source to move the hydraulic jack forward so that the pin can be removed smoothly. Instead of gas cutting and hammering, it ensures that the track is intact. It is an ideal special tool for track excavator maintenance and assembly. Hydraulic system of electrically driven track press: hydraulic system (pump station) is installed on the right side of the host. The entire hydraulic control system drives the high-pressure pump to input the pressure oil through the motor. After the solenoid reversing valve, the oil is respectively input to enable the cylinder plunger to reciprocate up and down. In the neutral position,the system is unloaded and the oil flow goes into the tank. The press is electro-hydraulic controlled. Extra hand pump can be equipped for field operation without power supply.
|
Part name
|
track link pin press、track pin pusher
|
|
Warranty
|
1 year
|
|
Finish
|
Smooth
|
|
Colors
|
Yellow or Black & Customized
|
|
Available fit machiners
|
PC20 to PC400 D20 to D155
|
|
Available Fit link pitch
|
90,101,135,171,175,190,203,216,228,260mm |
|
Delivery Time
|
Within 15 days after contract established
|
|
Packing
|
standard exported pallet or box
|
|
Condition
|
New
|
|
Payment
|
T/T or western union or other
|
|
Shipping
|
Normally by sea, by air, DHL,UPS,FEDEX,TNT,ETC for small package
|
