Quick Details
-
Brand Name:
-
Rakinda
-
Model Number:
-
QL10
-
Product Name:
-
Smart Door Lock
-
Unlocking method:
-
qr code, password, key, ic card
-
Low battery alarm voltage:
-
≤ 4.8V
-
Spare power supply:
-
Micro USB 5V
-
Standby power consumption:
-
≤50 uA
-
Battery:
-
4pcs No. 5 alkaline battery 1.5V
-
Image Sensor:
-
752X480
-
working frequency:
-
13.56MHZ
-
Lock cylinder:
-
Class B anti-theft lock cylinder
-
Material:
-
6063GB aluminum profile aluminum CNC
Quick Details
-
Door Type:
-
Wood door
-
Network:
-
bluetooth
-
Place of Origin:
-
China
-
Brand Name:
-
Rakinda
-
Model Number:
-
QL10
-
Product Name:
-
Smart Door Lock
-
Unlocking method:
-
qr code, password, key, ic card
-
Low battery alarm voltage:
-
≤ 4.8V
-
Spare power supply:
-
Micro USB 5V
-
Standby power consumption:
-
≤50 uA
-
Battery:
-
4pcs No. 5 alkaline battery 1.5V
-
Image Sensor:
-
752X480
-
working frequency:
-
13.56MHZ
-
Lock cylinder:
-
Class B anti-theft lock cylinder
-
Material:
-
6063GB aluminum profile aluminum CNC

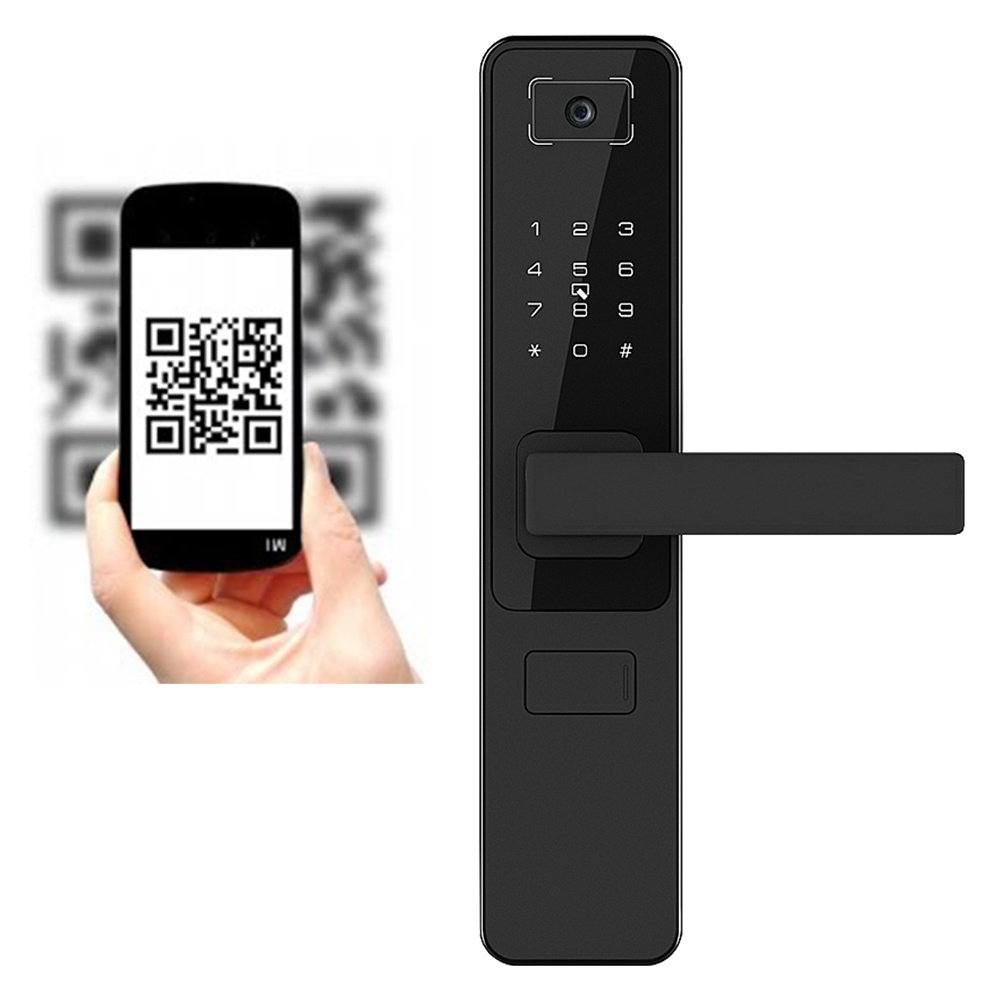

Hotel Home Qr Code Scanner Door Lock Automation System Electronic Digital Smart Door Lock
Product Description
Product Parameters
|
System Parameter |
|
| Supply voltage | DC 4.5 -6V |
| Low battery alarm voltage | ≤ 4.8V |
| Spare power supply | Micro USB 5V |
| Standby power consumption | ≤50 uA |
| Average trouble-free working time | ≥25000h |
| battery | 4pcs No. 5 alkaline battery 1.5V |
| anti-static | Touch ±8KV,Air ±15KV |
| Working humidity | 10% ~ 95%RH |
| Operating temperature | -20℃ ~60℃ |
|
Machine Parameter |
|
| data encryption | National secret encryption algorithm |
| Unlocking method | QR code, password, NFC, emergency key, remote APP, combination unlock |
| Material | 6063GB aluminum profile aluminum CNC |
| Lock cylinder | Class B anti-theft lock cylinder |
| USB Emergency Power Supply | Micro USB 5V1A |
|
2D Code Unlock Function |
|
| Image Sensor | 752X480 |
| 2D code recognition | 2D PDF417,QR CODE,DATA MATRIX,Support mobile phone mirror recognition |
|
NFC Lock Function |
|
| Identification method | RFID ( ISO 14443A,14443B) |
| working frequency | 13.56MHZ |
| Customs lock | Support (cards in accordance with ISO 14443A, 14443B) |
| Door Card capacity |
QR code, NFC, password total 100 ,
3 group administrator accounts 3 groups of ordinary users |
|
APP |
|
| APP | Support wechat applet |
| Electronic key sharing | Support |
| Remote control | Support |
| Alarm message reporting | Support |
|
Others |
|
| Double security door opening method | Support (2d code, password, nfc , any two of the same or different combinations) |
| Flood control alarm | Support |
| Reset | Hidden reset button |
| Trial error self-locking function | Support, any kind of unlocking mode for 5 consecutive errors, the system will alarm and force lock for 2 minutes. |
| Wireless power switch | Support |
