◎ Meet the EN50155 railway industry standard requirements. Designed for railway transportation applications
◎ With 8 × 10/100/1000M M12 gigabit ports
◎ Optional function: bypass function(1- 2 port) for power-off protection.
◎ Redundant dual 24/48VDC power inputs. Built-in overcurrent protection, Reverse connection protection.
◎ Support one-way relay alarm function.
◎ -40 to 75℃ operating temperature range (WT models)
◎ No fan, low consumption, industrial design standard, industrial grade electronic components,environmental protection & lead-free production
◎ High strength metal housing, support wall mounting.
◎ IP Rating up to IP40 (Optional IP67 waterproof housing).
◎ Without packet loss in 72 hours full load flow test.

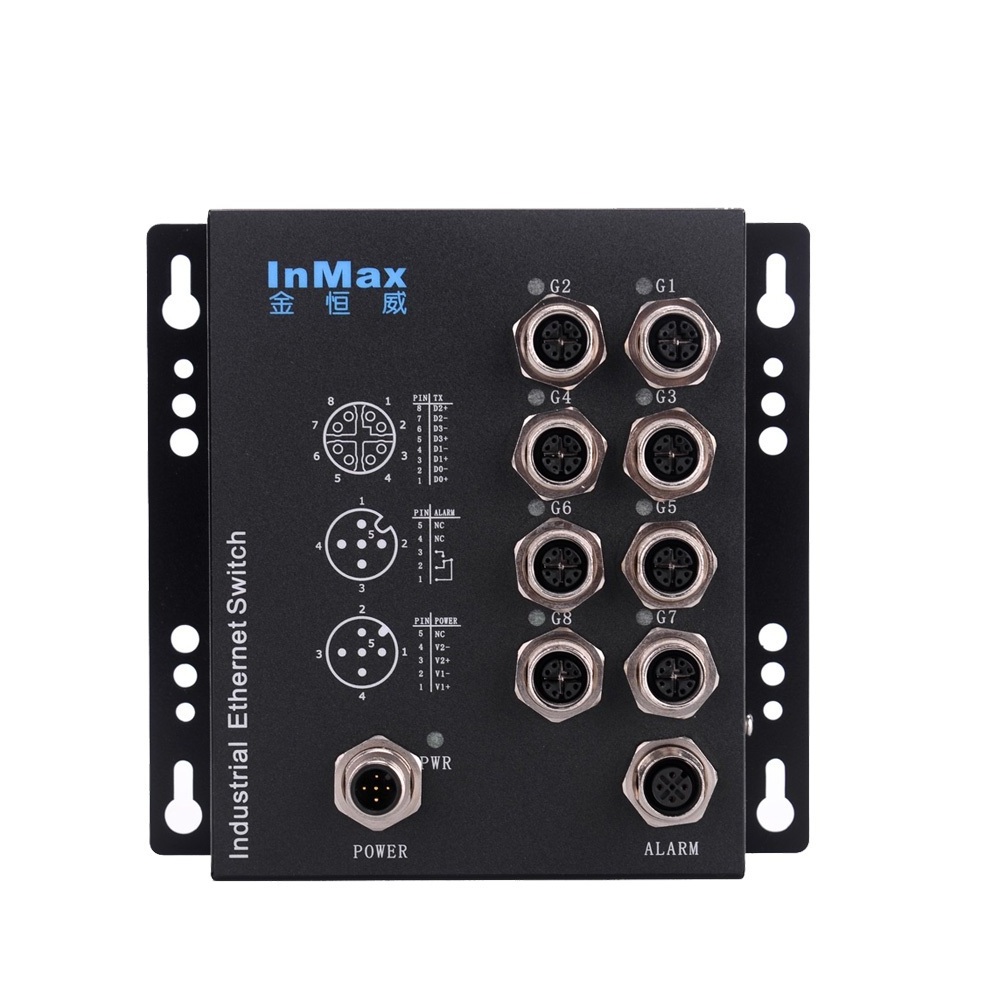

The M508B series M12 unmanaged Gigabit Ethernet switches are designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock.
The M508B series Ethernet switches provide 8 Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x standard, 10 / 100/1000M speed adaptive, full duplex / half duplex communication and MDI / MDI-X automatic detection, to provide you with an economical industrial Ethernet solutions.
No fan, low power consumption design, working function more steady, and without packet loss in 72 hours full load flow test.
It accords with FCC, CE, RoHS standard and industrial design requirement. It can work in -40 to 75℃ working temperature and electromagnetic complex harsh working environment steadily, widely used in car PIS, CCTV, car security monitoring, smart factory, and provide reliable and quick solution for customers' Ethernet device connection.
|
Product Name
|
M12 8 Port Gigabit Railway Industrial Ethernet Switch
|
|
M12 Ports
|
M12 8Pin X-Coded 1000M Gigabit connector
|
|
M12 Power Port
|
M12 5Pin Power port connector
|
|
Input Voltage
|
24VDC / 48VDC ( 18 - 75VDC )
|
|
IP Rating
|
IP40
|
|
Dimension
|
144 × 140 × 34 mm
|
|
Weight
|
900g
|
|
Operating Temperature
|
-40 to 75℃
|
ODM DB9 railway switch board
ODM M12 bus switch board
110VDC railway gigabit switch board
|
Optional Accessories
|
|
|
|
|||
10/100/1000 BASE-T RJ45 Interface, customized- length
10/100/1000 BASE-T RJ45 Interface, customized- length
10/100 BASE-T RJ45 Interface, customized- length
M12 A-code (8-pin male) Quick Connector
M12 X-code (8-pin male) Quick Connector
M23(6-pin male) Quick Connector
Our Workshop
Packing Details: 1pcs/box, 6 pcs/carton, size:36x34.7x21.5cm/carton , G.W:6kg/carton
Delivery Details : 3-5 days for samples if we have stock, 2-6 weeks for mass order
In 2017, the global focus on the 16th China Public Security Expo (CPSE), which is held in Shenzhen Exhibition Center. Shenzhen
Shenzhen InMax Technologies Co., Ltd. has launched a series of professional industrial Ethernet switches, to offer service to the safety city, smart city, intelligent transportation, and networking solutions.
InMax participated in this ITS fair, mainly to show the latest released rail vehicle industry Ethernet switches which meet the standard EN50155, and provided professional network communication solutions.
InMax network communication equipment are being widely used in urban road construction and vehicle communication data transmission in major cities.
