100A 200A 400 amp ac dc automatic transfer switch
100A 200A 400 amp ac dc automatic transfer switch
100A 200A 400 amp ac dc automatic transfer switch
100A 200A 400 amp ac dc automatic transfer switch
100A 200A 400 amp ac dc automatic transfer switch
100A 200A 400 amp ac dc automatic transfer switch
100A 200A 400 amp ac dc automatic transfer switch
100A 200A 400 amp ac dc automatic transfer switch

100A 200A 400 amp ac dc automatic transfer switch

FOB Reference Price: Get Latest Price
≥1 Sets
US $2000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Ai Power
Model Number:
SAT100 SAT400
Rated Current:
100A 200a 400a
Frame current:
4
Current:
100A 200A 400A
Poles:
4P
Voltage:
400V, 220V, 480V
Operation type:
Auto, Manual
Origin:
China.fujian
color:
white
Weight:
50kg
Operation:
Auto

Quick Details

Type:
PC
Number of Pole:
4
Place of Origin:
Fujian, China
Brand Name:
Ai Power
Model Number:
SAT100 SAT400
Rated Current:
100A 200a 400a
Frame current:
4
Current:
100A 200A 400A
Poles:
4P
Voltage:
400V, 220V, 480V
Operation type:
Auto, Manual
Origin:
China.fujian
color:
white
Weight:
50kg
Operation:
Auto
Product Description

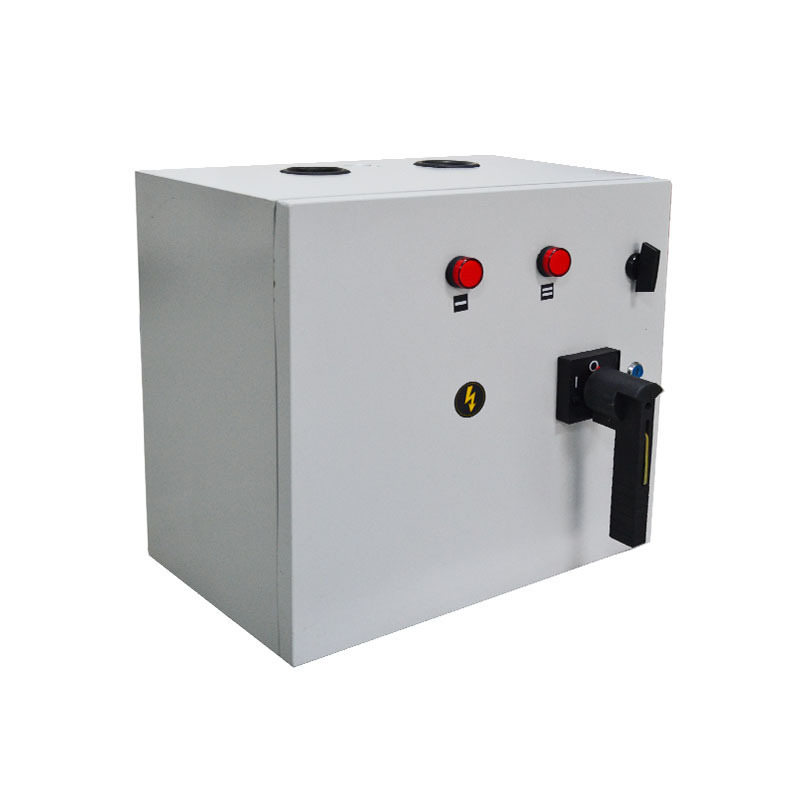

100A 200A 400 amp ac dc automatic transfer switch

The Soco mec or China brand ATS is all 3 phases 4 poles switches and a combination of two load-break switches mounted back to back electrically and mechanically interlocked. They provide manual switching or remote controlled source inversion or changeover under load of two low voltage power circuits. The ATS can transfer the load between generator and generator or between mains and generator in few seconds. It can automatically detect the voltage and frequency of mains power or generator power timely.  It has adopted high quality smartgen ATS controller.

Specification:

Manufacturer
XIAMEN AI POWER TECHNOLOGY CO., LTD.
ATS module Brand
Socomec
ATS model
SAT100, SAT200, SAT400
Capacity(A)
100, 200A, 400A
Voltage(V)
400V, 380V, 220V, 480V
Poles
4 poles
Type
Double Power
Type
PC Type
Product Details
ATS SPECIFICATION:

The AI SAT series automatic transfer switch is equipped with the following features:


1. Changeover Switch Module: The switch module used in the ATS is of high quality and reliability. It is designed specifically for emergency power supply and facilitates seamless transfer of the load between mains power and mains power or between mains
and generator within a few seconds.

2. Dual Voltage Compatibility: The ATS is capable of automatically detecting the voltage and frequency of both the mains power and generator power sources. This allows it to effectively switch between the two power sources as required.

100a 200a 400 amp ATS function:

1. Manual/Automatic Switch: The ATS is equipped with a manual/automatic switch, giving users the flexibility to choose the mode of operation. In automatic mode, the ATS will automatically transfer the load based on the power source availability and conditions.

2. Mains Working Condition Indicators: The ATS features three lights that indicate the working condition of the mains power. These lights provide visual feedback to users, allowing them to easily monitor the status of the mains power supply.

3. Generator Working Condition Indicators: Similarly, the ATS includes three lights that indicate the working condition of the generator. These lights help users keep track of the generator's status and ensure its proper functioning.

4. Smartgen ATS Controller: The ATS is equipped with a Smartgen ATS controller for monitoring and controlling the transfer switch operations. This intelligent controller enhances the functionality and efficiency of the ATS.

5. Silent Canopy Integration: The ATS can be conveniently placed inside the silent canopy of a generator set (genset). This integration helps in saving space and provides a compact solution for power management during emergencies.

It is worth noting that the technology and performance of the AI SAT series automatic transfer switch comply with the IEC60947-6-1 and GB14048.11-2002 standards, ensuring reliable and safe operation.

Ai Power ATS detail show:


AI Company

Advanced&Intelligent.

Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province.
Ai Power products adopts internationally and domestically reputed high-quality engines and alternators for our industrial diesel generator sets, gas diesel genset, marine generator, movable generator, lighting towers, generator spare parts and other high value-added electrical products, like ATS, synchronization system, etc.

FACTORY OVERVIEW


Packing & Delivery
FAQ

1. Can you accept small order?
A: Yes, we can accept trial order, it is the starting of business. But according to different product the price may be higher as normal quantity.

2. What is your company product range?
A: We are a professional turbocharger supplier, OEM and ODM are welcome.

3. Do you inspect the product? How?
A: Yes, each step of production and finished products will be carried out inspection by QC before shipping.

4. What is your payment terms?
A: T/T 30% advance payment, the balance 70% shall be paid before shipment, L/C at sight.

5. What about your factory production capacity?
A: 200pcs per month.

6.What kind of transactions you can accept.
A: We can accept FOB, CIF, CFR.
