Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V 50-60HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Bolang
-
Dimension(L*W*H):
-
1230*780*600
-
Weight:
-
130 KG
-
Function:
-
Bottle Washing Filling Capping
-
Marketing Type:
-
Hot Product 2022
Quick Details
-
Machinery Capacity:
-
1000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Milk, Water, Oil, Juice, liquid
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V 50-60HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Bolang
-
Dimension(L*W*H):
-
1230*780*600
-
Weight:
-
130 KG
-
Function:
-
Bottle Washing Filling Capping
-
Marketing Type:
-
Hot Product 2022
Our Product Advantages
1
.
We have many high
quality and reliable suppliers
.
2
.
We have
young and powerful sales team
, and have enough exported experience.
3.
Our products are of excellent quality and
fast processing speed
.
4.
Rich experience
, more than 1,500 global customers, more than 20 years of factory history.
5.
Rich product categories, products
support OEM and customer customization
.
6.
One-year warranty, can
provide overseas
installation and debugging services.
7.We all hope all of our clients will enjoy doing business with us. We look forward to be your reliable partner.
Product Description

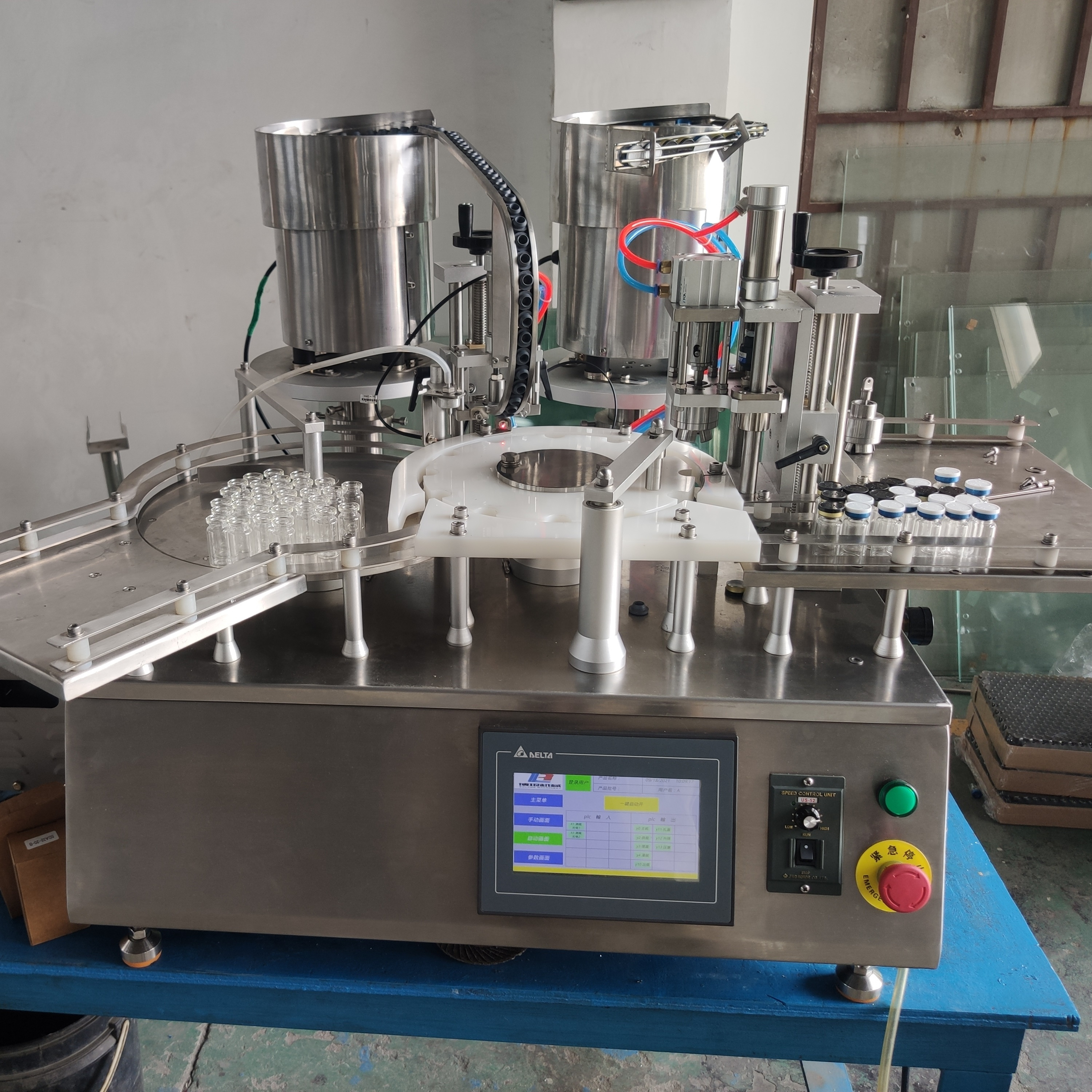

2022 new automatic
desktop
vials liquid injection filling sealing machine
Product Function
1.This machine is the main machine of freeze-dried products or liquid filling line of vials.
It has the functions of automatic feeding,auotomatic filling,automatic vacuum suction and pressure plug,and automatic sealing.
2.
The whole machine adopts advanced technology such as frequency conversion speed regulation,programmable controller and touch operation interface.
3.
Liquid filling is accomplished by plunger pump or peristaltic pimp with accurate measurement;
bottle wheel positioning and plugging is absolutely reliable;it has functions of no bottle filling,no plug alarm and automatic shutdown protection to ensuare the normal operation of production.
|
Production capacity
|
1000 vials / hour
|
|
Applicable bottles
|
10ml vials (cutomized)
|
|
Number of filling
|
single
|
|
Capacity
|
1ml ~ 100ml (adjustable)
|
|
Capacity
|
0 ~ 2%
|
|
Number of compression
|
single head
|
|
Tamping method
|
half plug or full plug (adjustable)
|
|
Power
|
220V 50Hz /60hz
|
|
Power
|
1Kw
|
|
Dimensions
|
1230 × 780 × 600
|
Main device component configuration
|
No.
|
Name
|
Model or Material
|
Supplier
|
|
1
|
PLC
|
DVP20SS11T2
|
Taiwan Delta
|
|
2
|
touch screen
|
DOP-B05S100
|
Taiwan Delta
|
|
3
|
inverter
|
FR-A740-0.75K-C
|
Taiwan Delta
|
|
4
|
peristaltic pump
|
314D
|
CHONGQING
|
|
5
|
sensor
|
BW200-DDT
|
Korea Autonics
|
|
6
|
Plug arrangement
|
500 (304 #)
|
Shanghai Dinghua
|
|
7
|
other electrical components
|
|
France Schneider
|
|
8
|
Feed bottle turntable
|
components
|
Nantong Bo Lang
|
|
9
|
bottle conveying system
|
components
|
Nantong Bo Lang
|
|
10
|
filling system
|
components
|
Nantong Bo Lang
|
|
11
|
Send plug system
|
components
|
Nantong Bo Lang
|
|
12
|
plug system
|
components
|
Nantong Bo Lang
|
|
13
|
drive mechanism
|
components
|
Nantong Bo Lang
|
|
14
|
rack, table
|
assembly (A3)
|
Nantong Bo Lang
|
|
15
|
side panels, panel
|
components (304 #)
|
Nantong Bo Lang
|
|
16
|
dust cover
|
304 # and glass
|
Nantong Bo Lang
|
