Quick Details
-
Jacket:
-
SHF1
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Huadong
-
Model Number:
-
BFOI
-
Rating Voltage:
-
0.6/1kv
-
Insulation:
-
XLPE
-
Sheath:
-
SHF1
-
Conductor:
-
stranded plain annealed copper wire
-
standard:
-
IEC 60092
-
Sheath Color:
-
Black or as request
-
ARMOR:
-
BRAID OF PLAIN ANNEALED COPPER WIRE
-
Outer sheath:
-
PVC/PCP/PO(SHF1 SHF2)/CSP
-
Standards implemented:
-
IEC60092-353
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
ship board, SHIPBOARD
-
Conductor Material:
-
Copper
-
Jacket:
-
SHF1
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Huadong
-
Model Number:
-
BFOI
-
Rating Voltage:
-
0.6/1kv
-
Insulation:
-
XLPE
-
Sheath:
-
SHF1
-
Conductor:
-
stranded plain annealed copper wire
-
standard:
-
IEC 60092
-
Sheath Color:
-
Black or as request
-
ARMOR:
-
BRAID OF PLAIN ANNEALED COPPER WIRE
-
Outer sheath:
-
PVC/PCP/PO(SHF1 SHF2)/CSP
-
Standards implemented:
-
IEC60092-353

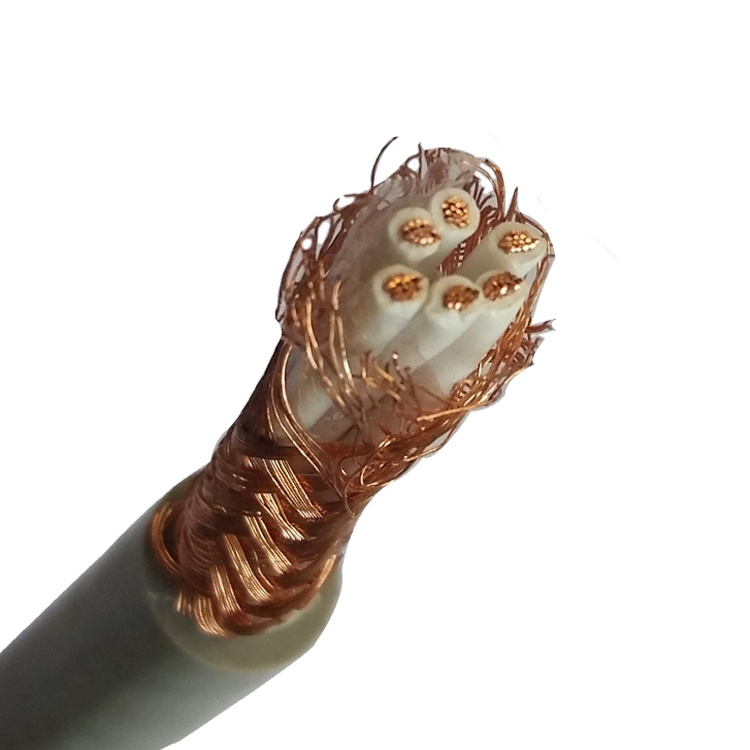

LV Power cable BFOI 3X4mm2 3x50mm2 3x240mm2 XLPE insulation 90Temperature SHF1 Halogen free cable
Rating voltage: 0.6/1kv
International S tandards applied
IEC602 2 8 IEC60092-350 IEC60092-351 IEC60092-3 53 IEC60092-359
IEC60332-1 IEC60332-3 -22 IEC60331 IEC60754 -2 IEC60134 -2
Application Standard
-Design guide:IEC 60092-350 & IEC 60092-353
-Insulation material:IEC 60092-351,XLPE
-Sheath material:IEC 60092-359,SHF1
-Flame retardant:IEC 60332-1 & IEC 60332-3
-Halogen content:IEC60754-1
-Smoke emission:IEC61034
-Cold ben/impact: 22.2
-Max.rated conductor temperature:90℃
Marine cables Specifications
Cores: 1, 2, 3, 4, 5, 7, 8, 10, 12, 14, 16,19, 24, 27, 30, 33, 37,44
Nominal Cross-section Areas: 1 .0 mm 2 , 1.5mm 2 , 2.5mm 2 , 4.0 mm 2 , 6.0 mm 2 , 10 mm 2 , 1 6 mm 2 , 25 mm 2 , 35 mm 2 , 5 0 mm 2 , 70 mm 2 ,95 mm 2 , 1 20 mm 2 , 150 mm 2 , 185 mm 2 , 240 mm 2 , 300 mm 2
Marine cables Application
This marine cables are intended for power,lighting of shipboard or offshore building .
It is also available for power plant, chemical works and mines,etc.
1.What is the marine cable price?
We need to know cable type or cable structure, size and quantity.
2. What is the MOQ?
The MOQ of our marine cable is 100M each size.
3. What is the production time?
Normally in 20 days.
4.What is your trade terms?
EXW FOB CFR CIF DAP
5.What is your acceptable payment terms?
Usually by TT. Other payment way also acceptable.
Production process & inspection
