Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
15DTS-BK4
-
Mechanical Life:
-
10 Years
-
communication protocol:
-
MODBUS
-
baud rate:
-
9600/19200
-
Material:
-
Toughened glass, steel support, fire protection PC
-
Fixed screw center distance:
-
60mm
-
working temperature:
-
-10℃--60℃
Quick Details
-
Max. Current:
-
5A
-
Max. Voltage:
-
DC 12V
-
Customized support:
-
OEM ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
15DTS-BK4
-
Mechanical Life:
-
10 Years
-
communication protocol:
-
MODBUS
-
baud rate:
-
9600/19200
-
Material:
-
Toughened glass, steel support, fire protection PC
-
Fixed screw center distance:
-
60mm
-
working temperature:
-
-10℃--60℃

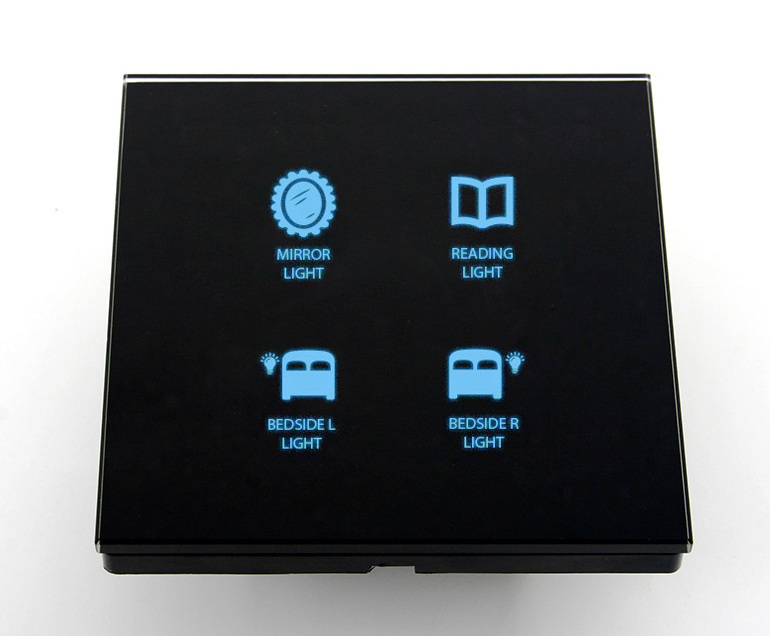

4 way 12V DC touch switch RS485 Modbus Protocol smart Hotel light touch switch
4mm luxury glass panel
Luxury glass panel, crystal, anti scratch, waterproof, anti leakage, easy to clean. Founder of the design to look more beautiful, around the panel, are used chamfering processing, more safety to use.
Flame retardant base
High quality PC (polycarbonate), impact resistance, heat resistance, flame retardant, mechanical properties, in line with international fire safety standards.
Stable structure
High quality cold rolled steel plate bracket, through the insulation coating processing, with high strength, not easy to deformation, and convenient installation.
Color, pattern can be customized
A variety of colors (magnetic white, silver, champagne, gold) for choice, function keys can be customized according to different requirements of a unique icon.
Modular design
Standardized and modular design, unified design, implementation of the functional combination of freedom, and convenience to the installation.
Good heat dissipation design
Switch bottom box adopts straddle design and switch circuit design for open space, sufficient heat, thus extending the service life of the switch.
Press type connection mode
Connection mode of the column pressing connection, so the utility model has the advantages of convenient connection, also can make the line better convergence, use rise more convenient.
Power off memory function
After power off, the product will still retain the original settings, not because of power failure and need to re set, the operation is more simple.
Technical data
Input voltage: 12V
Communication protocol: Modbus
Baud rate: 9600/19200, 8 data bits, no parity, 1 stop bit
Product size: 86*86*42mm
Fixed screw center distance: 60mm (86mm button box)
Operating temperature: -10℃--60℃
Working humidity: 0 - 95%
