Quick Details
-
Model Number:
-
HM-RS-KCD1-3
-
Mechanical Life:
-
100000 cycles
-
stroke:
-
2.00mm
-
elecctrical life:
-
2000cycles
-
contact resistance:
-
50MΩ max at initial 100MΩ max after life test
-
Dielectric strength:
-
500VDC/1MIN
-
materials:
-
plastics,alloy copper gold plating
-
capacitance:
-
5PFMAX
-
insulation resistance:
-
100MΩ ,500VDC
-
Non-swtiching rating/ switching rating:
-
100MA.50VDC/25MA 24VDC
-
operating temp/storage temp:
-
-20°C-70°C/-40°Cto 85°C
-
Certification:
-
ROHS
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HM
-
Model Number:
-
HM-RS-KCD1-3
-
Mechanical Life:
-
100000 cycles
-
stroke:
-
2.00mm
-
elecctrical life:
-
2000cycles
-
contact resistance:
-
50MΩ max at initial 100MΩ max after life test
-
Dielectric strength:
-
500VDC/1MIN
-
materials:
-
plastics,alloy copper gold plating
-
capacitance:
-
5PFMAX
-
insulation resistance:
-
100MΩ ,500VDC
-
Non-swtiching rating/ switching rating:
-
100MA.50VDC/25MA 24VDC
-
operating temp/storage temp:
-
-20°C-70°C/-40°Cto 85°C
-
Certification:
-
ROHS

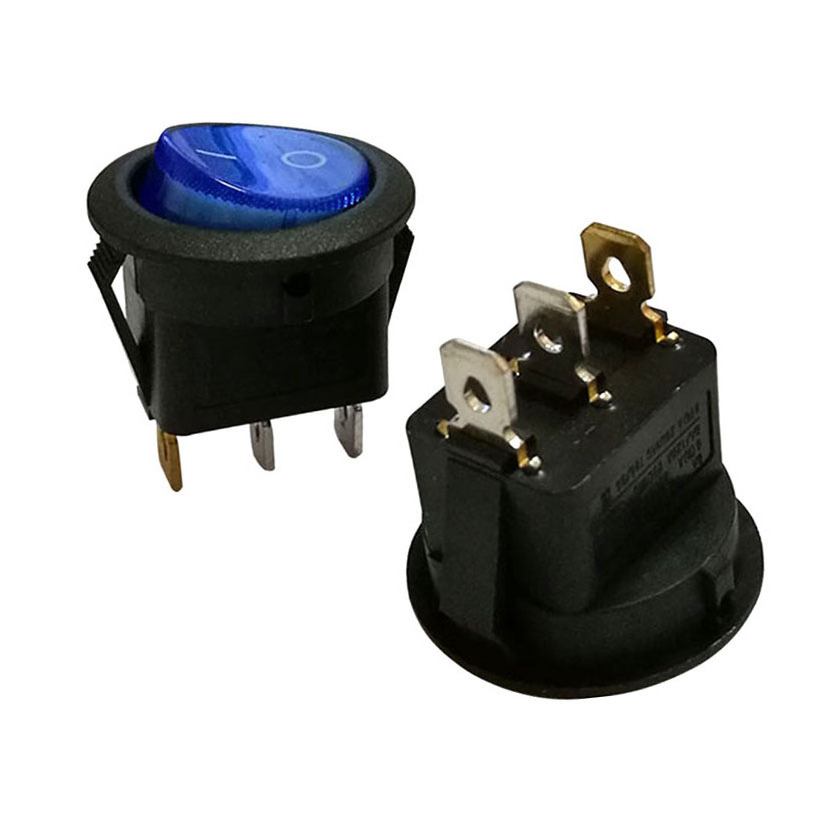

3 pins brass on-off toggle key waterproof blue light rocker switch RS-KCD1-3
|
type |
on/off round rocker switch dc 10a 12v car boat motorcycle |
|
C ircuit Diagram |
4pin on off |
|
rating |
10A 125VAC; 6A 250VAC |
|
contact resistance |
< 35MΩ |
|
insulation resistance |
500VDC 1000MΩ Minute |
|
Dielectric strength |
1500VAC, 1 Minute |
|
operating temperature |
-25°C~+85°C |
|
electrical life |
10000 CYCLES |
|
material |
N ylon 66 copper silver-contacts |
|
Application |
Used for electronic equipment and appliance |
|
O perating force |
3-8N |
