Quick Details
-
Brand Name:
-
Hualong
-
Weight (KG):
-
900 kg
-
Carryig capcity:
-
1000 kg
-
Mode of arm rotation:
-
Manual
-
Colum heigth:
-
4400 mm
-
Arm length:
-
4500 mm
-
Steel wire hoist loading capacity:
-
1000 kg
Quick Details
-
Max. Lifting Height:
-
customizable
-
Span:
-
customizable
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Hualong
-
Weight (KG):
-
900 kg
-
Carryig capcity:
-
1000 kg
-
Mode of arm rotation:
-
Manual
-
Colum heigth:
-
4400 mm
-
Arm length:
-
4500 mm
-
Steel wire hoist loading capacity:
-
1000 kg

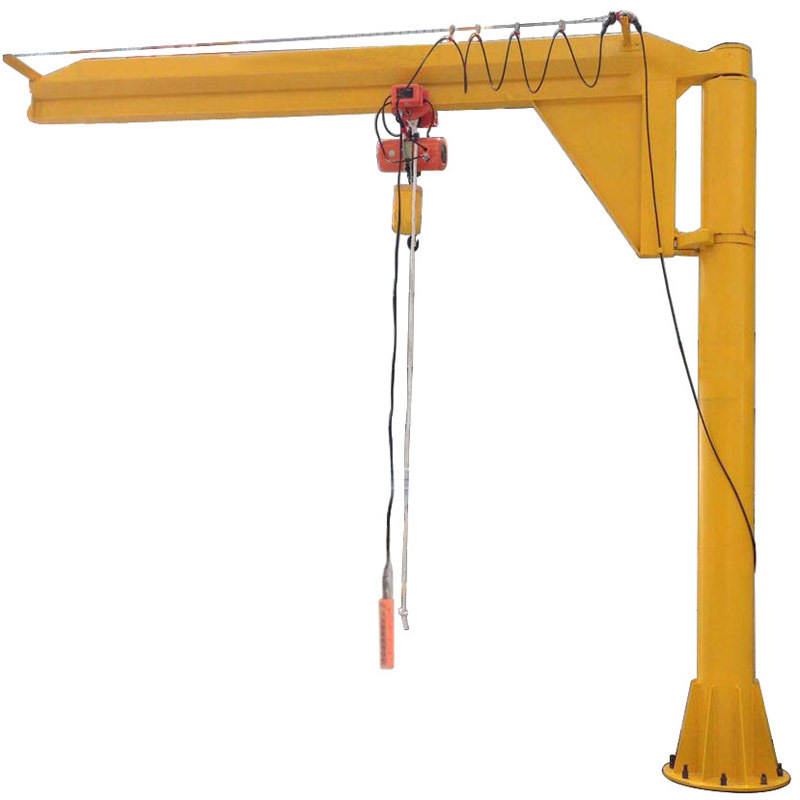

Column Mounted Jib Crane
HSC-1000 is a kind of crane that fixed on the ground, which is mainly consisted of up-pillar, down pillar, main beam bar, electric hoist, rotating mechanism and electric system, etc. It’s versatile and easy to operate.
Jib crane provides a space-saving and economical solution for lifting and moving items for assembly within a smaller radius.
This free standing Jib crane can be supplied with manual slew at standard or with motorized slew for option.
|
TECHNICAL DATA
|
|
|
|
|||
|
Model No.
|
|
HSC-1000
|
HSC-2000
|
|||
|
Lifting Capacity
|
kg
|
1000
|
2000
|
|||
|
Colum Height
|
mm
|
4400
|
4400
|
|||
|
Arm Length
|
mm
|
4500
|
4500
|
|||
|
Slewing angle
|
°
|
0-360
|
0-360
|
|||
|
Mode of arm rotation
|
Manual (or motorized for option)
|
|
|
|||
|
Weight
|
kg
|
900
|
1200
|
|||
Application
Main Features
1) Small space occupied, easy installation.
2) Si mple structure, operate convenience.
3) Turning agile, wide working conditions.
4) Energy-saving, time-saving, effort-saving, safe and reliable operation.
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
