Application:
Trimless channel letter, Liquid acrylic channel letter, Aluminum epoxy channel letter.
Applied Material:
Flat aluminum
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
70
-
Applied Material:
-
Flat aluminum
-
Material Width:
-
20-100mm
-
Material Thickness:
-
0.3mm-0.8mm
-
Voltage:
-
220V/50-60HZ/1P
-
Power Supply:
-
600w
-
Machine Size:
-
1400mm(L)*400mm(W)*700mm(H)
-
Machine Weight:
-
70kgs
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DAHE
-
Year:
-
2022
-
Weight (KG):
-
70
-
Applied Material:
-
Flat aluminum
-
Material Width:
-
20-100mm
-
Material Thickness:
-
0.3mm-0.8mm
-
Voltage:
-
220V/50-60HZ/1P
-
Power Supply:
-
600w
-
Machine Size:
-
1400mm(L)*400mm(W)*700mm(H)
-
Machine Weight:
-
70kgs
Product Description

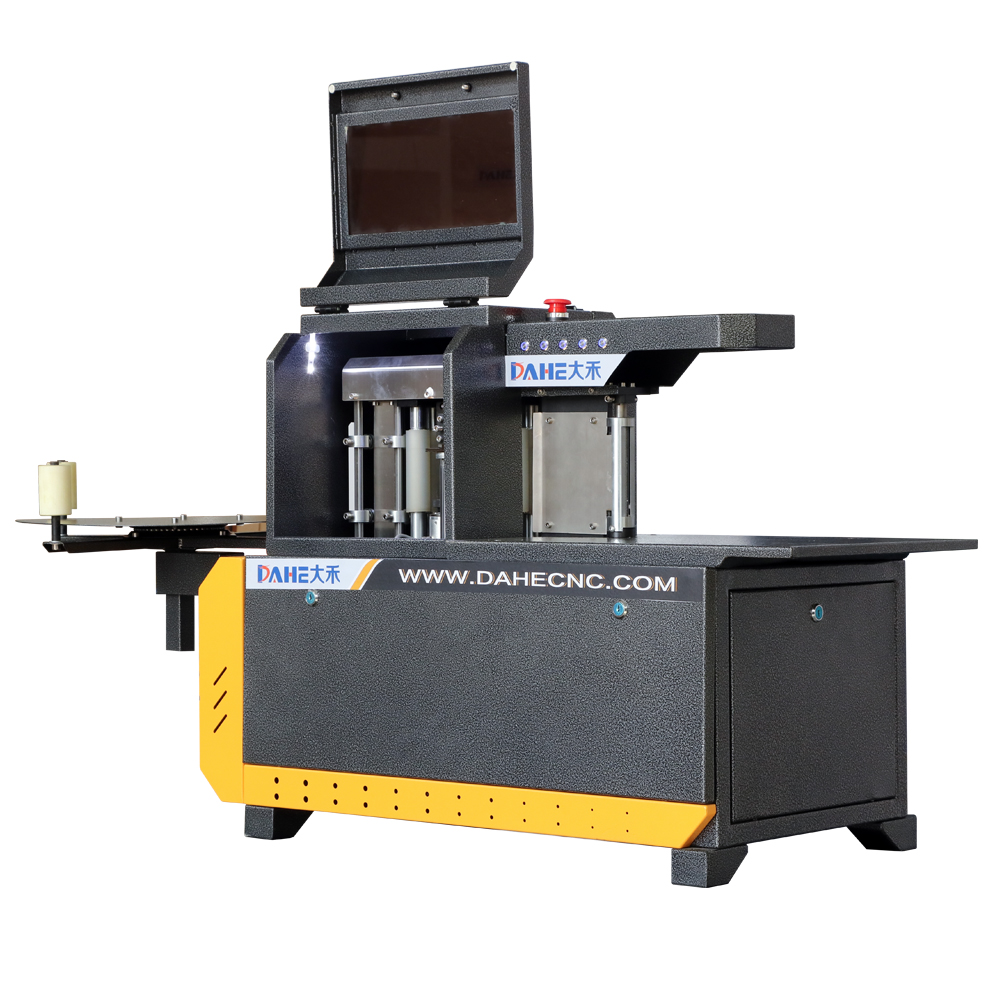

DH-3100 LED Channel letter bending machine
(Whatsapp: +86 18866771200)
Specification
|
TECHNICAL DATA
|
|
|
|
Model
|
DH-3100
|
|
|
Applied Material
|
Flat aluminum coil
|
|
|
Material Width
|
20-100mm
|
|
|
Material Thickness
|
0.3-0.8mm
|
|
|
Feeding Speed
|
2-5m/min
|
|
|
Bending Mode
|
Double rod linkage
|
|
|
Minimum Bending Radius
|
4mm
|
|
|
Motor
|
Servo motor: 1pc
Stepper motor: 1pc |
|
|
Power
|
600w
|
|
|
Voltage
|
220v 50/60hz 1p
|
|
|
Air Pressure
|
0.6Mpa
|
|
|
Supported File Format
|
DXF PLT AI
|
|
|
Control Software
|
Original Leetro Software CBS
|
|
|
Machine Weight
|
70kgs
|
|
|
Gross weight
|
90kgs
|
|
|
Machine Size
|
1400mm(L)*400mm(W)*700mm(H)
|
|
1.Fully automatic feeding, automatic slotting and automatic bending according to the characteristics of the font.
2.The feeding adopts feeding feedback of closed-loop encoder, which effectively avoids size inaccuracies caused by material sliding.
3.Material grooving adopts a planer imported from Japan, which has low cutting sound, wear-resistant, not easy to break, and easy to replace.
4.The slotting method adopts high-precision guide rail and pneumatic system, ultra-hard white steel blade slotting method, low cost and good effect.
5.The bending system adopts a high-precision servo system, which effectively increases the speed of the arc.
6.Humanized operating software, fixed grooving depth, durable tool, and constant depth.
7.Special specifications can be customized.
2.The feeding adopts feeding feedback of closed-loop encoder, which effectively avoids size inaccuracies caused by material sliding.
3.Material grooving adopts a planer imported from Japan, which has low cutting sound, wear-resistant, not easy to break, and easy to replace.
4.The slotting method adopts high-precision guide rail and pneumatic system, ultra-hard white steel blade slotting method, low cost and good effect.
5.The bending system adopts a high-precision servo system, which effectively increases the speed of the arc.
6.Humanized operating software, fixed grooving depth, durable tool, and constant depth.
7.Special specifications can be customized.
MACHINE DETAILS
Feeding Tray
Material can move smoothly,suitable for different width aluminum coils.
Rubber roller feeding, gear belt drive.
High-quality encoder
high reliability, long life, strong
anti-interference performance. Used in conjunction with high-speed precision motors, its high-precision performance makes the feeding control more precise.
anti-interference performance. Used in conjunction with high-speed precision motors, its high-precision performance makes the feeding control more precise.
Imported Planer
low cutting sound, wear-resistant, not easy to break, and easy to replace.
Bending Tool
Control system
The control card and software are genuine Leetro control system. The software operation is simple and easy to learn, ensuring zero error when the machine calculates the size. The control board runs stably and has strong anti-interference ability.
SAMPLES
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
AFTER-SALES SERVICE
1. Free training at our factory.
2. Lifetime free online after-sales service.
3. English speaking engineer provides online after sales service and abroad installation and training.
2. Lifetime free online after-sales service.
3. English speaking engineer provides online after sales service and abroad installation and training.
4. Engineer goes to customer country for training.
