Quick Details
-
Voltage:
-
110V/220V, 110V-240V 50/60Hz 150W
-
Dimension(L*W*H):
-
123*38*90cm
-
Weight:
-
115 KG
-
Product name:
-
Paper Sorting Gathering Machine And Paper Collator Collating Machine
-
Stations:
-
6/10/12/20/24
-
Applicable paper:
-
120*120-330*490mm
-
Capacity of each tray:
-
28mm (300 sheets of 70g/m2)
-
Capacity of paper delivery tray:
-
65mm (900 sheets of 70g/m2)
-
Paper thickness:
-
Top and bottom tray: 50-210gsm, other tray: 50-120g/m2
-
Max.Speed:
-
3500/hour (A4); 3200/hour (A3)
-
LCD Display:
-
Feed error, Double feed, Jam, No paper, Stacker full
-
Stacker:
-
Straight, Crisscross
Quick Details
-
Type:
-
Paper Collating Machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yingsheng
-
Voltage:
-
110V/220V, 110V-240V 50/60Hz 150W
-
Dimension(L*W*H):
-
123*38*90cm
-
Weight:
-
115 KG
-
Product name:
-
Paper Sorting Gathering Machine And Paper Collator Collating Machine
-
Stations:
-
6/10/12/20/24
-
Applicable paper:
-
120*120-330*490mm
-
Capacity of each tray:
-
28mm (300 sheets of 70g/m2)
-
Capacity of paper delivery tray:
-
65mm (900 sheets of 70g/m2)
-
Paper thickness:
-
Top and bottom tray: 50-210gsm, other tray: 50-120g/m2
-
Max.Speed:
-
3500/hour (A4); 3200/hour (A3)
-
LCD Display:
-
Feed error, Double feed, Jam, No paper, Stacker full
-
Stacker:
-
Straight, Crisscross
Product Description

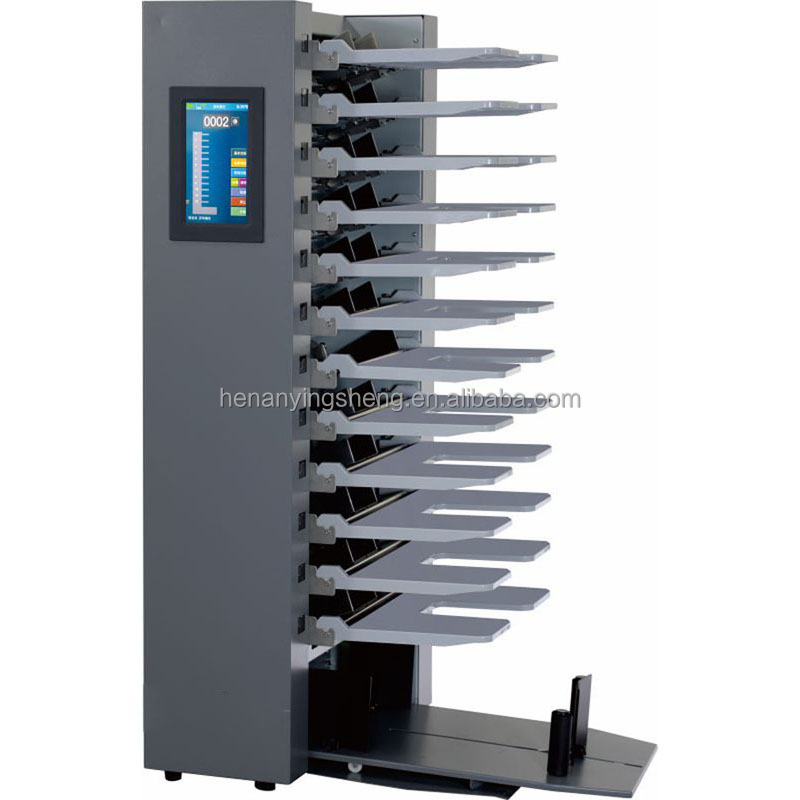

YS412 is a high speed, easy to operate friction collator with accurate and fast feeding. Simply press the key on the touch screen to start collate hundreds of sets of sheet in minutes.
YS412 can be online with DFS series booklet maker forms an in-line bookletmaking system. Meanwhile YS412 can connect any other YS series collator which can be added for up to 24 collating stations.
Feature At A Glance
1. Exchange touch screen interface between Chinese and English.
2.Multiple pagination modes, with interstitial function, you can choose not to insert the page, you can also choose to insert only the cover or insert the cover and back cover.
3. Speed adjustable.
4. Two ways of paper output before and after, the front paper output has the function of pendulum paper, and the rear paper output can be docked with other supporting equipment, which is convenient for users to choose.
5. Accurate paper detection function, do not miss any error. Double sheet, paper jam, no paper, feeding failure and other problems The machine automatically stops and alarms.
Specification
|
Product Name
|
6 Bins/10 Bins/12 Bins Paper Collator Collating Machine And Paper Sorting Gathering Machine
|
|
Stations
|
6/10/12/20/24
|
|
Applicable paper
|
120*120-330*490mm
|
|
Capacity of each tray
|
28mm (300 sheets of 70g/m2)
|
|
Capacity of paper delivery tray
|
65mm (900 sheets of 70g/m2)
|
|
Paper thickness
|
Top and bottom tray: 50-210gsm, other tray: 50-120g/m2
|
|
Max.Speed
|
3500/hour (A4); 3200/hour (A3)
|
|
Voltage
|
110V-240V 50/60Hz 150W
|
|
LCD Display
|
Feed error, Double feed, Jam, No paper, Stacker full
|
|
Stacker
|
Straight, Crisscross
|
|
Other Functions
|
Paper eject backwards, Total count
|
Packing & Delivery
1. Packing: Plywood Case for Each Machine.(Small machine or spare parts packed by carton）
2. Payment terms: T/T and Tradeassurance (50% deposit to start the production, 50% paid before delivery)
3. Delivery date：2-35 business days after receiving the payment.
4. Shipping way: By sea from Shanghai or Ningbo Port; By Express or railway are avaliable.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
