Quick Details
-
Brand Name:
-
DONGFU WIRE MESH
-
Model Number:
-
DF-PF
-
Service:
-
Customizable Specifications, Label Customization
-
Product name:
-
Palisade fence
-
Fence Panel Height:
-
1m - 6m
-
Fence Panel Width:
-
1m - 3m (2.75m as standard)
-
Pale Profile:
-
D-Section, W-Section, Angle Steel
-
Pale Head Styles:
-
Rounded, Rounded and notched, Single-spike, Splayed triple-spike, etc.
-
Horizontal Rails:
-
Rolled Steel Angle (RSA)
-
Fence Post:
-
RSJ Post, Square Post
-
Posts Fixing Ways:
-
Concrete In, Bolt Down
-
Accessories:
-
Straight Fish-Plates, Bolts and Nuts
-
Additional Security Measures:
-
Contact us to discuss options (eg barbed wire, razor wire, etc)
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, ECO FRIENDLY, FSC, Pressure Treated Timbers, Renewable Sources, Rodent Proof, Rot Proof, Tempered Glass, TFT, Waterproof
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DONGFU WIRE MESH
-
Model Number:
-
DF-PF
-
Service:
-
Customizable Specifications, Label Customization
-
Product name:
-
Palisade fence
-
Fence Panel Height:
-
1m - 6m
-
Fence Panel Width:
-
1m - 3m (2.75m as standard)
-
Pale Profile:
-
D-Section, W-Section, Angle Steel
-
Pale Head Styles:
-
Rounded, Rounded and notched, Single-spike, Splayed triple-spike, etc.
-
Horizontal Rails:
-
Rolled Steel Angle (RSA)
-
Fence Post:
-
RSJ Post, Square Post
-
Posts Fixing Ways:
-
Concrete In, Bolt Down
-
Accessories:
-
Straight Fish-Plates, Bolts and Nuts
-
Additional Security Measures:
-
Contact us to discuss options (eg barbed wire, razor wire, etc)

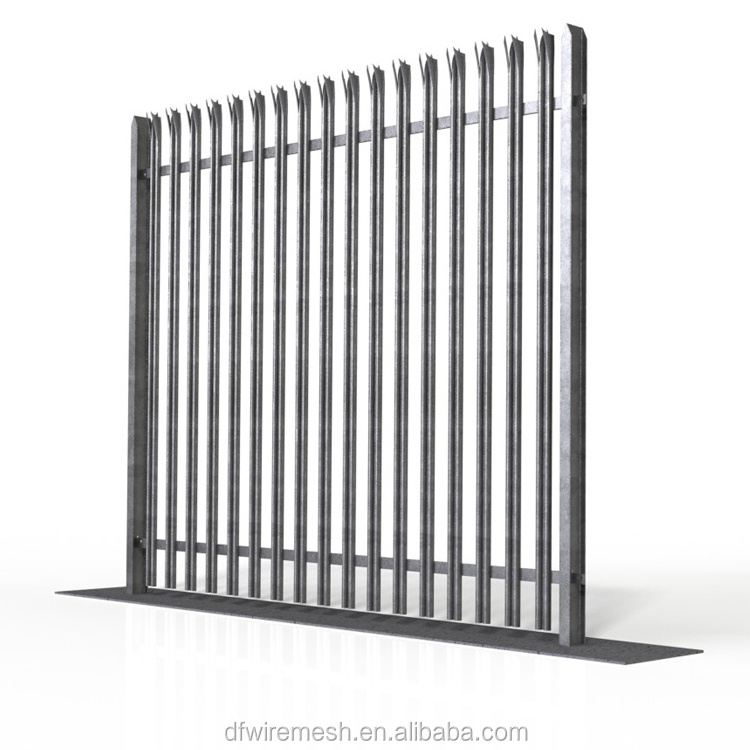

High Security Steel Palisade Fence
| Steel Palisade Fence Overview | |
| Main Material | Low Carbon Steel |
| Finish |
Galvanized,
Optional polyester powder coating in green, black, or other colors on request. |
| Fence Panel Height: | 1m - 6m |
| Fence Panel Width: | 1m - 3m (2.75m as standard) |
| Pale Profile: |
D-Section, W-Section, Angle Steel
Thickness: 2.0mm - 3.0mm |
| Pale Head Styles: | Rounded, Rounded and notched, Single-spike, Splayed triple-spike, etc. |
| Horizontal Rails: |
Rolled Steel Angle (RSA): 40mm × 40mm, 50mm × 50mm, 63mm × 63mm Thickness: 3mm - 6mm Styles: 2 Rails, 3 Rails |
| Fence Post: |
RSJ Post: 100mm×55mm, 100mm×68mm, 150mm×75mm
RSJ Post Thickness: 3.0mm - 6.5mm Square Post: 50mm×50mm, 60mm×60mm, 75mm×75mm, 80mm×80mm Square Post Thickness: 1.5mm - 4mm |
| Posts Fixing Ways: | Concrete In, Bolt Down |
| Accessories: |
Straight Fish-Plates: 30mm × 150mm × 7mm, 40mm × 180mm × 7mm
Bolts and Nuts: M8 × No.34 for pale fixing, M12 × No.4 for rail fixing |
| Additional Security Measures: | Contact us to discuss options (eg barbed wire, razor wire, etc) |
Steel Palisade Fencing, also known as European Style Fencing. In some countries people may not familiar with this type of fencing system, but many countries have already been using it to replace the traditional brick walls and heavy wire mesh fence, making the living environment beautiful, comfortable and fresh. “Palisade” is also called “Security Defense assembled pales”, it comes into people’s life because the pursuit of a better environment.
The most common specifications for Steel Palisade Fencing is 1.8M high and 2.5M wide. Preservative treatment of this type of fencing includes: electrostatic galvanized, hot dip galvanized, polyester powder coated, PVC coated, etc. Powder coated and PVC coated Steel Palisade Fencing due to its low price and durability are very popular among customers. Durable, strong corrosion-resistant, long service life are some of the characteristics of this type of fencing system.
Steel Palisade Fencing system can be custom made upon request. This fencing system is beautiful and practical, there are no mesh and frame structures, it makes the transportation and installation very easy. And the system is adaptable to different project scenarios. Steel Palisade Fencing is widely used at railway living areas. Some features of steel palisade fencing system lies in that they are attractive and durable, of broad vision, having various colors, of high strength and good rigidity.
