Quick Details
-
Brand Name:
-
HONZ
-
Model Number:
-
HZ-UVA3-6C
-
Voltage:
-
110V/220V
-
Gross Power:
-
35W
-
Dimensions(L*W*H):
-
630*800*580mm
-
Weight:
-
60kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Multifunction Portable Ballpoint Pen Inkjet Printing Machine
-
Printhead:
-
DX5 metal print head
-
Ink:
-
UV ink
-
Ink type:
-
CMYK+2White
-
Printer platform size:
-
320*800mm
-
printing working size:
-
280*600mm
-
Print Thickness:
-
0 -180mm
-
Application:
-
print wood, metal, PVC, card, phone cases, crystal, ceramic
-
Print Resolution:
-
5760*1440dpi
-
Ink Cartridge:
-
Continuous Ink Supply System (CISS)
-
Certification:
-
CE Certification
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HONZ
-
Model Number:
-
HZ-UVA3-6C
-
Voltage:
-
110V/220V
-
Gross Power:
-
35W
-
Dimensions(L*W*H):
-
630*800*580mm
-
Weight:
-
60kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Multifunction Portable Ballpoint Pen Inkjet Printing Machine
-
Printhead:
-
DX5 metal print head
-
Ink:
-
UV ink
-
Ink type:
-
CMYK+2White
-
Printer platform size:
-
320*800mm
-
printing working size:
-
280*600mm
-
Print Thickness:
-
0 -180mm
-
Application:
-
print wood, metal, PVC, card, phone cases, crystal, ceramic
-
Print Resolution:
-
5760*1440dpi
-
Ink Cartridge:
-
Continuous Ink Supply System (CISS)
-
Certification:
-
CE Certification
Mini Size a3 UV Printer Multifunction Portable Ballpoint Pen Inkjet Printing Machine

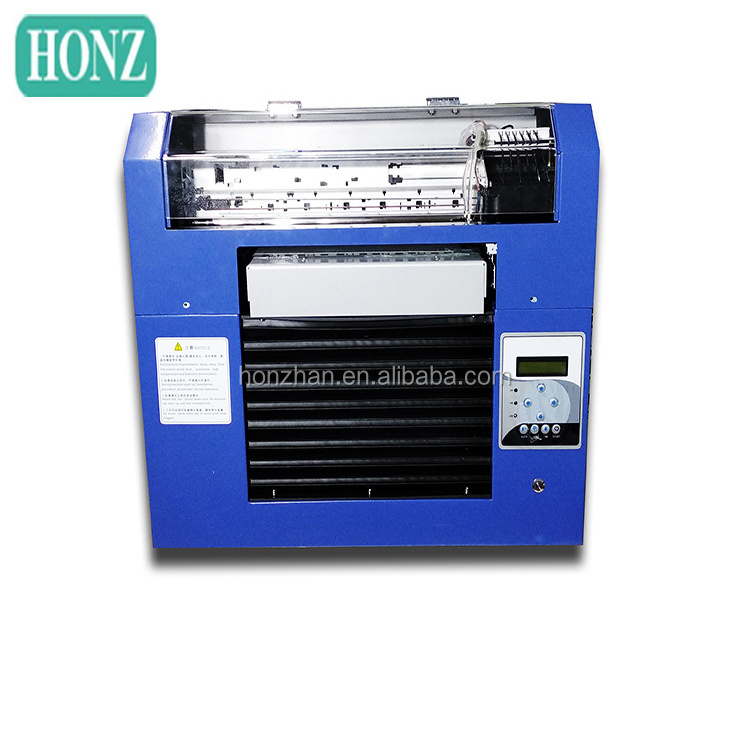

HZ-UVA3-6C UV flatbed printer description:
UV printer is combined inkjet print and LED UV curing , printed image can be dry directly after UV led light curing, and printed image have embossed effect.
UV led flatbed printer feature :
1. S imple operation , such as office home printer
2. M ulti-color inkjet printing , perfect color transition, amazing printing effect .
3. Printer use UV ink, low cost printing
4. printing speed is fast, can be mass production
5. Overcome up to 5mm thickness deviation of materials, bumps can be extended to 5mm, rough and incline can also be printed
HZ-UVA3-6C flatbed uv printer can print on a ny material , like wood, metal, PVC, card, phone cases , crystal, ceramic, glass, plastic etc . Printed image can be dry immediately after printing, can print out embossed effect, color no fade under the sun, scratch resistance, waterproof.
HZ-UVA3-6C uv led printer specification:
|
Model |
HZ-UVA3-6C |
|
Printer head |
DX5 metal print head |
|
Printing process |
Micro Piezo 240 nozzles*6 colors |
|
Minimum Ink Droplet Size |
1.5 Pico liters |
|
Print Resolution |
5760*1440dpi |
|
Printer platform size |
320*800mm |
|
printing working size |
280*600mm |
|
Print Thickness |
0 -180mm |
|
UV lamp power |
≤100W, multi- grades selective adjustment |
|
Print Speed |
Print a A4 size image needs 3 minutes with high resolution |
|
Height Adjustment |
Semi - automatic , height sensing, photoelectric shooting limit switch |
|
Ink consumption |
Approximately 10ml ink of each color to print one square meters image |
|
Ink type |
UV Ink |
|
Ink Color |
Cyan , Magenta , Yellow , Black , 2 white (CMYK+2White) |
|
Ink Cartridge |
Continuous Ink Supply System (CISS) |
|
Platform in and out |
Automatic , l aser positioning, accurate |
|
Platform lift |
Automatic, T-type screw |
|
Software |
acro rip / mengtai |
|
Working environment |
Temperature: 10°-35° C (50°-95° F) Humidity: 20%-80% RH |
|
Working voltage |
110V/220V AC |
|
power |
Max 35W |
|
data transmission |
USB 2.0 high speed |
|
Operation System |
Windows® 2000, XP, XP Professional X 64 and Windows Vista™, Windows 7, Macintosh® OS X 10.2.8, 10.3.9, 10.4.11, 10.5.x and 10.6.x |
|
Printer Weight |
Net Weight : 60 kg Gross Weight : 90 kg |
|
Machine Size |
Net size: 630*800*580mm Package size : 740*920*760mm |
HZ-UVA3-6C uv flatbed printer detail photos:
6 colors A3 size UV printer use DX5 print head, keep 2880*1440dpi printing resolution.
UV printer use uv ink, with white color uv ink, it can print on any colors of flat surface materials, like acrylic, ball pen, bottle, golf ball, wood, metal, PVC, card, phone cases , crystal, ceramic, glass, plastic, leather etc.
A3 size uv led printer ink cartridge use Continuous Ink Supply System (CISS). please see picture at below: Ink dampers, CISS, printer nozzles.
UV ink for flatbed uv printer use. Click picture for more UV ink details:
UV printer print on flat surface materials printing samples, keep high printing resolution.
UV LED flatbed printer use uv ink, printed image can be dry directly after UV led light curing, and printed image have embossed effect. Printing image realistic and achieve photo quality, waterproof, sun-resistant, abrasion-resistant and color does not fade.
In below picture, it is UV printer print on phone case, USB disk, acrylic, bottle, dial plate, PVC cards.
