Measuring the liquid, gas, or steam flow, liquid level, density, and pressure.
- Product Details
- {{item.text}}
Quick Details
-
Product Name:
-
Differential Pressure Transmitter
-
Model:
-
EJA430E
-
Brand:
-
Yoko gawa
-
Origin:
-
Japan
-
Output signal 1:
-
4~20mA Brain
-
Output signal 2:
-
4~20mA DC Hart5/Hart7
-
Output signal 3:
-
FF
-
Output signal 4:
-
PROFIBUS PA
-
Material:
-
Cast Aluminum Alloy
-
MAX work pressure:
-
0.5MPa
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yokogawa
-
Model Number:
-
EJA430E
-
Product Name:
-
Differential Pressure Transmitter
-
Model:
-
EJA430E
-
Brand:
-
Yoko gawa
-
Origin:
-
Japan
-
Output signal 1:
-
4~20mA Brain
-
Output signal 2:
-
4~20mA DC Hart5/Hart7
-
Output signal 3:
-
FF
-
Output signal 4:
-
PROFIBUS PA
-
Material:
-
Cast Aluminum Alloy
-
MAX work pressure:
-
0.5MPa
Product Overview

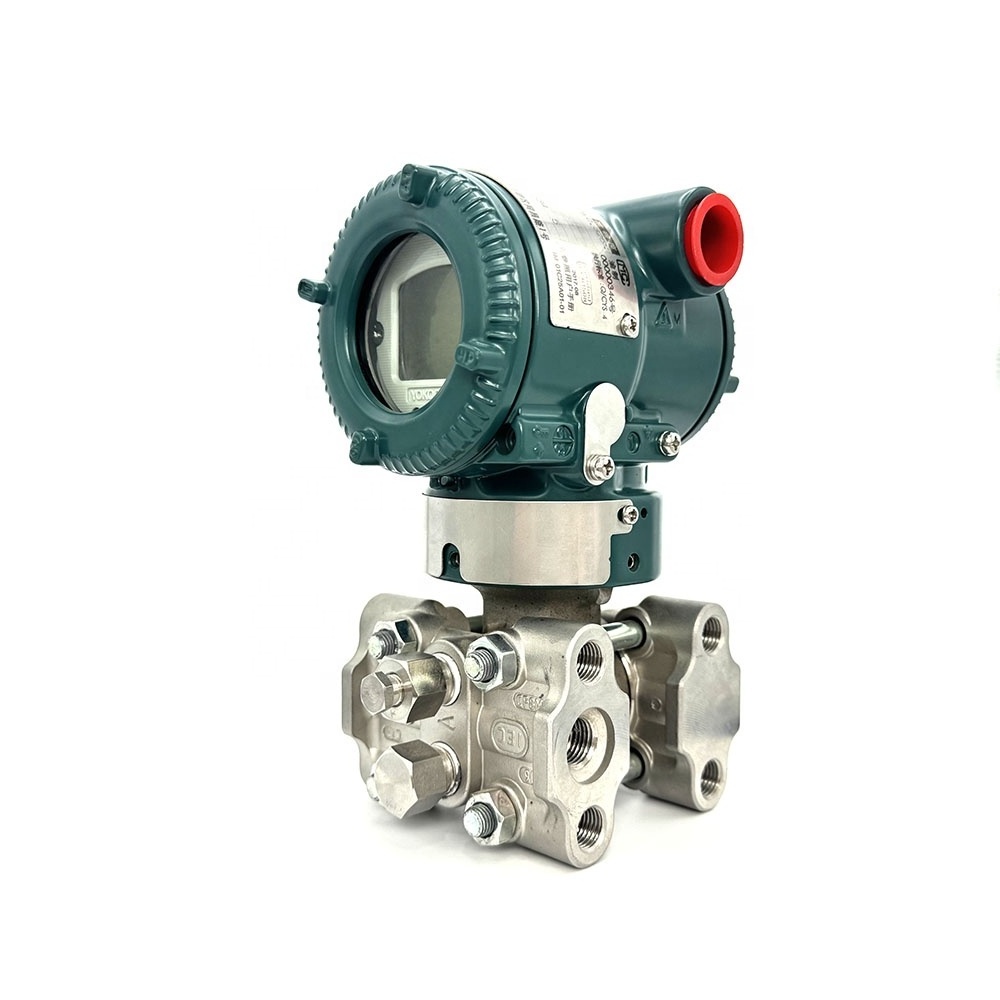

Yoko gama EJA430E
The high performance gauge pressure transmitter EJA430E features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam pressure.
The EJA430E outputs a 4 to 20 mA DC signal corresponding to the measured pressure.
It also features quick response, remote setup and monitoring via BRAIN or HART communications and self-diagnostics.
FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available.
EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certified as complying with SIL 2 for safety requirement.
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
Measurement Span/Range
|
|
MPa
|
Psi(/D1)
|
Bar(/D3)
|
Kgf/cm2 (/D4）
|
|
|
H
|
Span
|
5 to 500 kPa
|
20 to 2000 inH2O
|
0.05 to 5
|
0.05 to 5
|
|
|
|
Range
|
-100 to 500 kPa
|
-400 to 2000 inH2O
|
-1 to 5
|
-1 to 5
|
|
|
A
|
Span
|
0.03 to 3.5
|
4.3 to 500
|
0.3 to 35
|
0.3 to 35
|
|
|
|
Range
|
-0.1 to 3.5
|
-14.5 to 500
|
-1 to 35
|
-1 to 35
|
|
|
B
|
Span
|
0.14 to 16
|
20 to 2300
|
1.4 to 160
|
1.4 to 160
|
|
|
|
Range
|
-0.1 to 16
|
-14.5 to 2300
|
-1 to 160
|
-1 to 160
|
|
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
