Quick Details
-
Dimensions(L*W*H):
-
2200*800*1870mm
-
Weight:
-
400 KG
-
Flexo fabric label Printer:
-
Flexo fabric label Printer
-
Max Printing length:
-
300mm
-
Min Printing length:
-
106mm
-
Max Printing speed:
-
60m min
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Showroom Location:
-
None
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
UTECS
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
2200*800*1870mm
-
Weight:
-
400 KG
-
Flexo fabric label Printer:
-
Flexo fabric label Printer
-
Max Printing length:
-
300mm
-
Min Printing length:
-
106mm
-
Max Printing speed:
-
60m min
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Showroom Location:
-
None
-
Marketing Type:
-
Ordinary Product

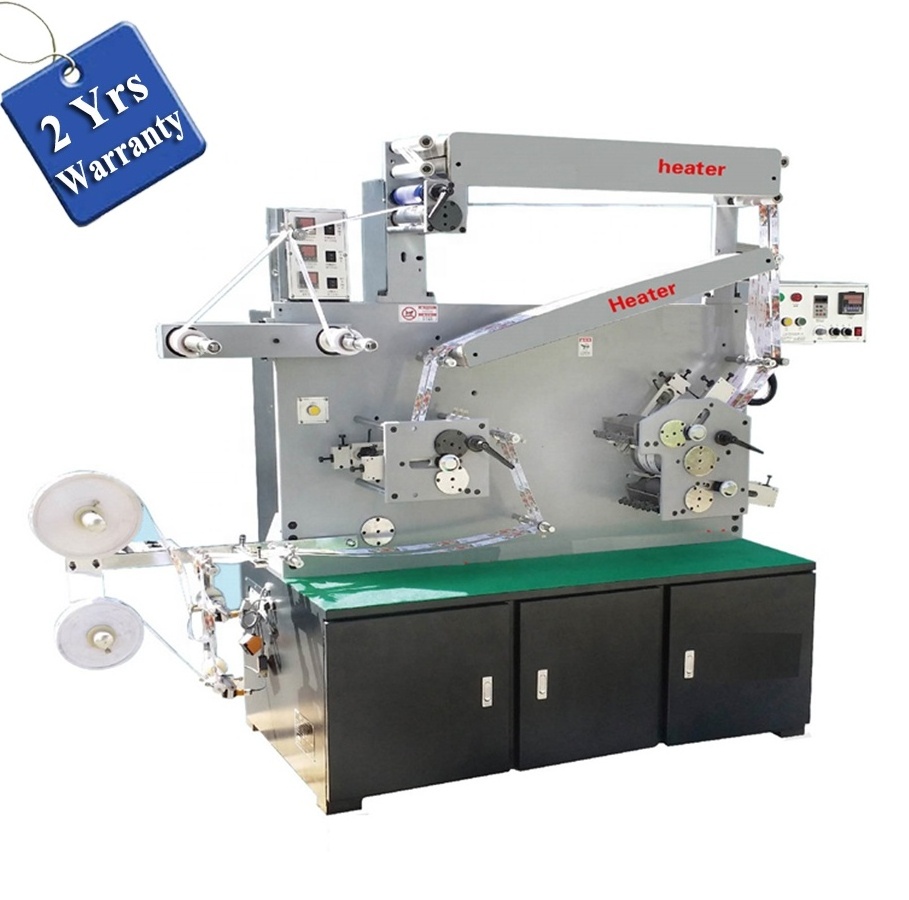

UGS21S 2 color front 1 back Automatic Flexo Fabric Label Printer, Rotary Textile Garment Satin Flexographic Printing Machine
Video demonstration only for reference
Video (2+1) : https://www.youtube.com/watch?v=U3BOi4Q4jmw
Video (4+1) : https://www.youtube.com/watch?v=1oJsoAW7pqo
Video (6+2) : https://www.youtube.com/watch?v=sRHf8sU7Q8c
This Flexo fabric label printer functions as flexo press for high color registration and definition requirement. This printer is suitable for variety of roll fabric materials like nylon ribbon, cotton ribbon, elastic ribbon, papers, labels, strapping belts and satins etc
Features:
1. The plate cylinders can be freely exchanged to fit different printing length.
2 The multiple printing result is vivid, firm and accurate registration.
3. Easy operation with reliable mechanic performance.
4. It can print white characters by white ink on the black roll materials
Parameters:
|
Model |
UGS21 |
UGS31 |
UGS42 |
UGS62 |
|
Print Colors |
2/1 |
3/1 |
4/2 |
6/2 |
|
Max Printing length |
300mm |
300mm |
300mm |
300mm |
|
Min Printing length |
106mm |
106mm |
106mm |
106mm |
|
Max Printing width |
150mm |
150mm |
150mm |
150mm |
|
Max Printing speed |
60m/min |
60m/min |
60m/min |
60m/min |
|
Power |
220V/50HZ/2.4kw |
220V/50HZ/3.2kw |
220V/50HZ/3.2kw |
220V/50HZ/3.2kw |
|
Weight |
400kg |
500kg |
600kg |
800kg |
|
Dimension |
2200x800x1870 |
2200x800x1870 |
2400x800x1870 |
2800x800x1870 |
|
Ceramic Anilox DPI: 150’ 180’ 300’ 500’ |
||||
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min print size in mm?
B: Material thickness and unwinding width
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service ?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679) . In addtion, we have professional engineer available for overseas service. .
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
