Quick Details
-
Feed Mechanism:
-
Drop Feed
-
Place of Origin:
-
Zhejiang, China
-
Power:
-
550W
-
Overall Dimensions:
-
56*18.5*34
-
Weight (KG):
-
43 KG
-
Needle:
-
DB*1 11-18#
-
Presser foot height:
-
5-13mm
-
M5 Rotating speed:
-
4000
-
M5-7 Rotating speed:
-
3500
-
M5-H Rotating speed:
-
3500
-
M5-7H Rotating speed:
-
3500
-
Package dimensions:
-
625*250*545mm
-
Product Size:
-
560*185*340
-
Product name:
-
Industrial Lockstitch Sewing Machine
-
sewing:
-
2
Quick Details
-
Type:
-
Industrial Sewing Machine
-
Max. Sewing Thickness:
-
5-13mm
-
Stitch Length:
-
5or7
-
Feed Mechanism:
-
Drop Feed
-
Place of Origin:
-
Zhejiang, China
-
Power:
-
550W
-
Overall Dimensions:
-
56*18.5*34
-
Weight (KG):
-
43 KG
-
Needle:
-
DB*1 11-18#
-
Presser foot height:
-
5-13mm
-
M5 Rotating speed:
-
4000
-
M5-7 Rotating speed:
-
3500
-
M5-H Rotating speed:
-
3500
-
M5-7H Rotating speed:
-
3500
-
Package dimensions:
-
625*250*545mm
-
Product Size:
-
560*185*340
-
Product name:
-
Industrial Lockstitch Sewing Machine
-
sewing:
-
2
Product display
Applicable garments & stitches
Machine features
Using independent servo drive motor, the machine stops the needle more accurate and faster response, with automatic cutting line and lifting the presser foot function, suitable for shirts, suits, knitting and other clothing
Product details
|

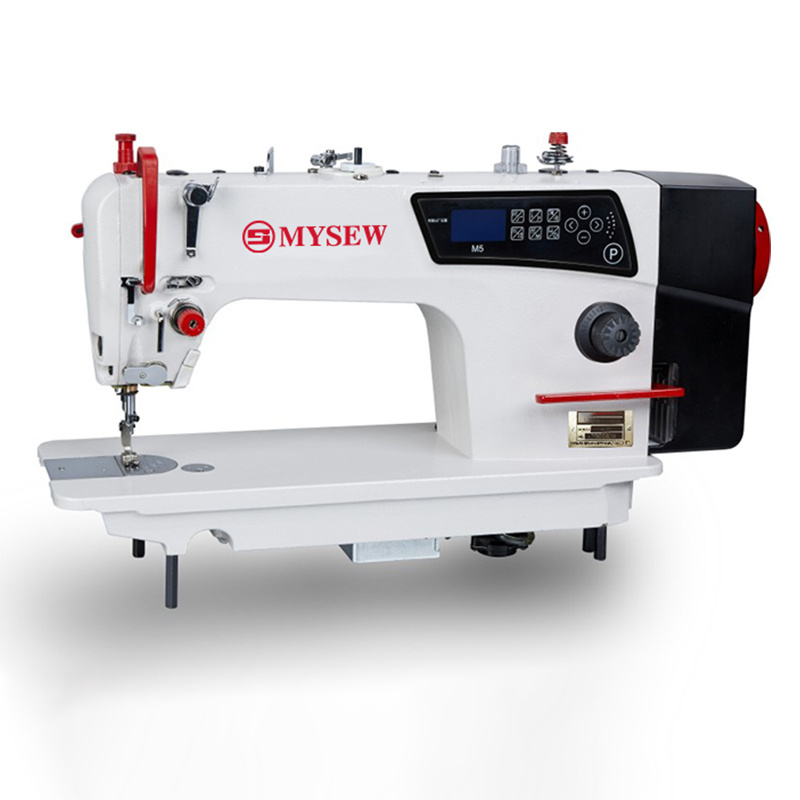

Lockstitch machine
|
M5
|
M5-7
|
M5-H
|
M5-7H
|
|
Needle
|
DB×1 11-18#
|
DB×1 11-18#
|
DB×1 11-18#
|
DB×1 11-18#
|
|
sewing
|
2
|
2
|
2
|
2
|
|
Number of needles
|
2
|
2
|
2
|
2
|
|
Needle spacing
|
5
|
7
|
5
|
7
|
|
Presser foot lift height
|
5-13
|
5-13
|
5-13
|
5-13
|
|
Rotating speed
|
4000
|
3500
|
3500
|
3500
|
|
power
|
550W
|
550W
|
550W
|
550W
|
|
Voltage
|
220V
|
220V
|
220V
|
220V
|
|
Machine size
|
560*185*340mm
|
560*185*340mm
|
560*185*340mm
|
560*185*340mm
|
|
Package dimensions
|
625*250*545mm
|
625*250*545mm
|
625*250*545mm
|
625*250*545mm
|
|
net weight
|
36.5KG
|
36.5KG
|
36.5KG
|
36.5KG
|
|
Gross weight
|
42.5KG
|
42.5KG
|
42.5KG
|
42.5KG
|
|
Standard motor
|
Servo drive motor
|
Servo drive motor
|
Servo drive motor
|
Servo drive motor
|
|
Automatic thread trimming
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Automatic presser foot lift
|
Yes
|
Yes
|
Yes
|
Yes
|
