1) Brand: Deepsea, Harsen, Smartgen, etc.
2) Adopt Genset controller with LCD display, taking microprocessor as the core.
3) The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generated
electricity /grid electricity.
4) The monitor and display on the genset’s water temperature, oil pressure, rotational speed, battery voltage, running hours,
accumulative total power and number of starts.
5) Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over
voltage, over frequency and phase failure etc.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 year, 1 year or 1000 hours
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WFP
-
Model Number:
-
WFP
-
Speed:
-
1500/1800rpm
-
Weight:
-
870kg
-
Engine:
-
Deutz, Ricardo, Weichai, Shangchai, Yuchai
-
Alternator:
-
Stamford, Marathon, Leroy somer,
-
Type:
-
open frame, silent type, trailer type, container type, portable type
-
Controller:
-
Smartgen, Deep sea, Harsen
-
Cooling System:
-
Closed circle water-cooled
-
Starting method:
-
Electrical Start
-
Power factor:
-
0.8/1
-
Color:
-
yellow, blue, green, red, also according to Customers' Requirement
-
Certificate:
-
ISO, CE, CCS, OEM
-
Certification:
-
CE ISO
Quick Details
-
Rated Voltage:
-
400/230V
-
Rated Current:
-
54A
-
Frequency:
-
50HZ /60HZ
-
Warranty:
-
1 year, 1 year or 1000 hours
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WFP
-
Model Number:
-
WFP
-
Speed:
-
1500/1800rpm
-
Weight:
-
870kg
-
Engine:
-
Deutz, Ricardo, Weichai, Shangchai, Yuchai
-
Alternator:
-
Stamford, Marathon, Leroy somer,
-
Type:
-
open frame, silent type, trailer type, container type, portable type
-
Controller:
-
Smartgen, Deep sea, Harsen
-
Cooling System:
-
Closed circle water-cooled
-
Starting method:
-
Electrical Start
-
Power factor:
-
0.8/1
-
Color:
-
yellow, blue, green, red, also according to Customers' Requirement
-
Certificate:
-
ISO, CE, CCS, OEM
-
Certification:
-
CE ISO
Product Description

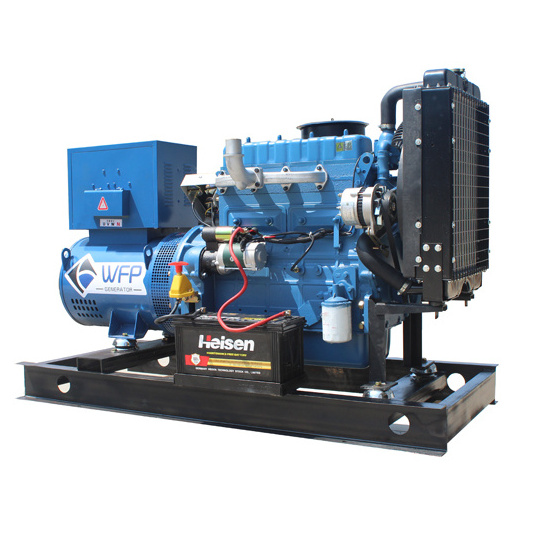

This series diesel generator set is powered by Weichai Ricardo series diesel engine. With the importing of technoloy of Ricardo
Company(U.K). The engine has the feature of low fuel consumption, good power performance, safety and good reliability. This series
generator set is used as prime or standby power supply in fieldwork, building, supermarket, industrial and mining factory, oil
field, highway, harbour countryside and so on.
Company(U.K). The engine has the feature of low fuel consumption, good power performance, safety and good reliability. This series
generator set is used as prime or standby power supply in fieldwork, building, supermarket, industrial and mining factory, oil
field, highway, harbour countryside and so on.
|
Quick Details
|
|
|
|
|||
|
Place of Origin:
|
Shandong, China
|
Brand Name:
|
WFP
|
|||
|
Model Number:
|
WP8GF
|
Rated voltage:
|
220/380V,230/400V,240/415V,120/240V
|
|||
|
Rated Current:
|
14.4A
|
Speed:
|
1500RPM/1800RPM
|
|||
|
Frequency:
|
50HZ/60HZ
|
Product Name:
|
Diesel generators
|
|||
|
Engine origin:
|
China Diesel generators
|
Type:
|
Silent (super Silent)or Open
|
|||
|
Certificate:
|
CE/ISO9001/ISO14001
|
Weight:
|
400KG
|
|||
|
Warranty:
|
12 months or working in 1000 hours, whaiever
|
Diesel generator power:
|
8KW
|
|||
|
Power efficiency:
|
0.8(Lag) Diesel generator
|
Dimensions L*W*H(mm)
|
1330*720*1160
|
|||
Specification
|
Generator Supply Scope
|
|
|
|
Engine
|
Brand new water cooled diesel engine
|
|
|
Alternator
|
100% copper wire brushless alternator, single bearing, IP21/22, H insulation class
|
|
|
Base Frame
|
Heavy duty steel base frame
|
|
|
Radiator
|
40℃ for open type, 50℃ for soundproof type
|
|
|
Vibration Damper
|
Vibration damper between Engine/Alternator and base frame
|
|
|
Silencer
|
Industrial silencer with flexible bellow and elbow
|
|
|
Filters
|
Standard Air filter, Oil filter, Fuel filter and oil-water separator
|
|
|
Battery
|
Electric start and 24V charger. 12/24V storage batteries
|
|
|
Fuel Tank
|
Average 8 hours base fuel tank
|
|
|
Tool Kits & Manuals
|
Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc.
|
|
Recommend Products
Optional automatic control digital system
Title goes here.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
