Quick Details
-
Brand Name:
-
KUNMIN
-
Voltage:
-
110/220/380V
-
Dimension(L*W*H):
-
1400*800*1350mm
-
Year:
-
2023
-
Power (kW):
-
0.75
-
Weight (KG):
-
200 KG
-
Name:
-
rubber mixing machine
-
Batch capacity:
-
1KG
-
Size:
-
120*350mm
-
Drum speed:
-
22R/min
-
Fction ratio of rollers:
-
1:1.25
-
Max gap:
-
5mm
-
Application:
-
Rubber
-
Keywords:
-
lab rubber mixing mill machine
-
Working life:
-
20 years
-
Packing:
-
Packed in standard export plywood wooden case.
Quick Details
-
Diameter of Roll(mm):
-
120 mm
-
Length of Roll(mm):
-
350 mm
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
KUNMIN
-
Voltage:
-
110/220/380V
-
Dimension(L*W*H):
-
1400*800*1350mm
-
Year:
-
2023
-
Power (kW):
-
0.75
-
Weight (KG):
-
200 KG
-
Name:
-
rubber mixing machine
-
Batch capacity:
-
1KG
-
Size:
-
120*350mm
-
Drum speed:
-
22R/min
-
Fction ratio of rollers:
-
1:1.25
-
Max gap:
-
5mm
-
Application:
-
Rubber
-
Keywords:
-
lab rubber mixing mill machine
-
Working life:
-
20 years
-
Packing:
-
Packed in standard export plywood wooden case.

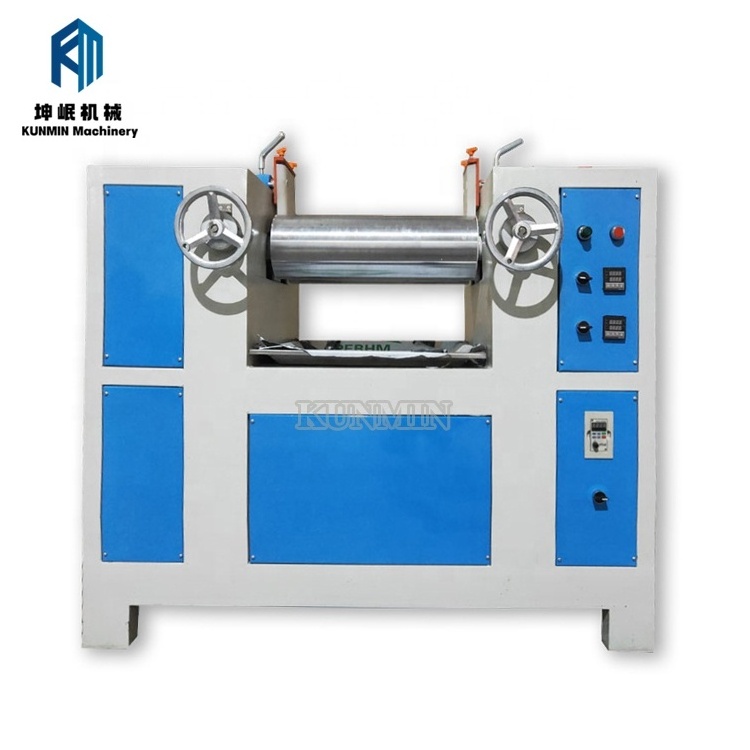

Beautiful Appearance And Easy Lab Laboratory Roller Rubber Mixing Mill Mixer Machine
The electric heating rubber machine is specially used for rubber industry and plastic products mixing and batching experiment machine.
Product Selling Points
Feature:
1. The roller is made of alloy chilled cast iron (including separation cast or integrated alloy type). Their surfaces are hard and wear resistance 2.Rollers are divided into the hollow roll and drilled roll. The hollow roll(hollow roll inner cavity is bored , usually spraying in bored cavity is adopted for heating and cooling ). The hollow roll surface can be machined into smooth roll , whole smooth roll ,partial grooved roll, welded up alloy roll and so on . For high cooling or heating speed , circumferential drilled roll can be selected 3.The roll is supported on both end by double row spherical bearings . Large machine adopts double bearing . so it has advantages of running smoothly , energy saving , low noise and long service life 4.All series mill are equipped with safety device according to the new station stands , in order to protect the main parts from damaged 5.The roll bearing lubrication : grease lubrication and oil lubrication for order 6.The driving part adopts nylon pin coupling to prevent main parts from being damaged due to overload of transmission part 7.The reducer adopts the hardened gear teeth surface reducer . It has low noise , high transmission efficiency and long service life 8.The base is integral type, the transmission mode is closed transmission , so it is safe and easy for use 9.The user can select the stock blender according to the process
1. The roller is made of alloy chilled cast iron (including separation cast or integrated alloy type). Their surfaces are hard and wear resistance 2.Rollers are divided into the hollow roll and drilled roll. The hollow roll(hollow roll inner cavity is bored , usually spraying in bored cavity is adopted for heating and cooling ). The hollow roll surface can be machined into smooth roll , whole smooth roll ,partial grooved roll, welded up alloy roll and so on . For high cooling or heating speed , circumferential drilled roll can be selected 3.The roll is supported on both end by double row spherical bearings . Large machine adopts double bearing . so it has advantages of running smoothly , energy saving , low noise and long service life 4.All series mill are equipped with safety device according to the new station stands , in order to protect the main parts from damaged 5.The roll bearing lubrication : grease lubrication and oil lubrication for order 6.The driving part adopts nylon pin coupling to prevent main parts from being damaged due to overload of transmission part 7.The reducer adopts the hardened gear teeth surface reducer . It has low noise , high transmission efficiency and long service life 8.The base is integral type, the transmission mode is closed transmission , so it is safe and easy for use 9.The user can select the stock blender according to the process
Advantage:
1.It has the characteristics of light weight, small volume, simple structure, convenient operation, low power consumption, and convenient use and maintenance.
2.This machine is mainly composed of transmission device, working host part, roller distance, adjusting device, emergency braking device and so on.
Product Paramenters
