Quick Details
-
Brand Name:
-
Tepsung
-
Model Number:
-
ZTE-310-S
-
Accuracy Class:
-
class 1.0
-
Output Voltage:
-
make as customer requirements
-
Operating Temperature:
-
-25~70℃
-
Dimensions:
-
contact us
-
Type:
-
STS Prepayment Meter
-
Display:
-
LCD display
-
Frequency:
-
50HZ/60HZ
-
OEM:
-
Support
-
Warranty:
-
18mths
-
Color:
-
Grey
-
Application:
-
Shopping Mall Construction Hotel
-
Package:
-
1 Pc/box
-
Material:
-
Polycarbonate
-
Certificate:
-
STS
Quick Details
-
Phase:
-
Three Phase
-
Measuring Energy Range:
-
0-999999.99
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Tepsung
-
Model Number:
-
ZTE-310-S
-
Accuracy Class:
-
class 1.0
-
Output Voltage:
-
make as customer requirements
-
Operating Temperature:
-
-25~70℃
-
Dimensions:
-
contact us
-
Type:
-
STS Prepayment Meter
-
Display:
-
LCD display
-
Frequency:
-
50HZ/60HZ
-
OEM:
-
Support
-
Warranty:
-
18mths
-
Color:
-
Grey
-
Application:
-
Shopping Mall Construction Hotel
-
Package:
-
1 Pc/box
-
Material:
-
Polycarbonate
-
Certificate:
-
STS
Product Description

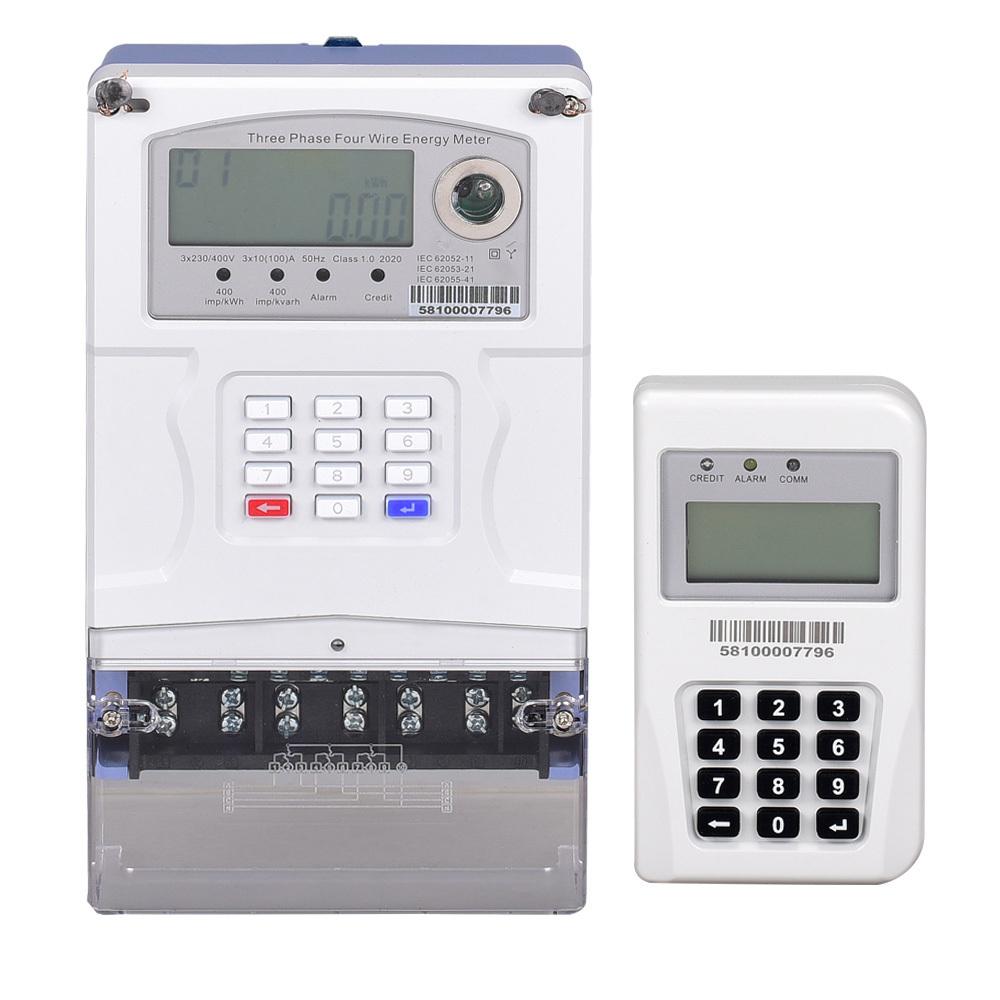

The integrated keypad of three phase electricity meter is offered to enter recharge TOKEN and check information by short codes.
The CIU is installed inside customer’s house, when the meter is kept away from customer’s reach in locked boxes or houses.
Product Presentation
Function and features
Basic Functions
✽ Meter Recharge By Inputting TOKEN
✽ Active energy measurement
✽ MD(maximum demand measurement)
✽ Auto scroll mode display
✽ Build-in relay control
✽ Event log
✽ Low Credit Alarm
Communication:
The meter is available with AMI system through LORA-RF or PLC module on request.
TOU Tariff:
Meters can be set TOU Tariff by inputting corresponding TOKEN. Utilities can set step price on request.
Anti-Tamper Functions:
Meter will automatically close the valve after detection of magnetic field and open cover event.
Overdraft Collection：
Electricity Overdraft can be collected day by day or month by month.
Information Inquiry:
Consumer could check the data like Credit Remain, Total Purchased and Total Credit by inputting the short code.
How to recharge the prepaid meters ???
Operation of vending software:
1. Login vending system
2. Meter number registration
3. Customer information registration
4. Price Setting
5. Open Account
6. Vending/Topping up meters
7. Get the Token
8. Input Token to meter with keypad
9. Recharging successfully
Technical Parameters
|
Nominal Voltage
|
3×220/380V,3x230/400V,3x240/415V
|
|
Working Voltage Range
|
70%~120%Un
|
|
Nominal Frequency
|
50-60Hz
|
|
Basic Current (Ib)
|
10A
|
|
Maximum Current (Imax)
|
100A
|
|
Starting Current (Ist)
|
30mA
|
|
Active Energy Constant
|
400imp/kWh
|
|
Active Energy Accuracy
|
Class 1.0
|
|
Reactive Energy Accuracy
|
Class 2.0
|
|
Power Consumption in Voltage Circuit
|
<2W <8VA
|
|
Power Consumption in Current Circuit
|
<1VA
|
|
Operation Temperature Range
|
-25℃-70℃
|
|
Storage Temperature Range
|
-40℃-85℃
|
|
Item
|
Optional value
|
|
Tamper & Events
|
Power failure
|
|
|
Power over threshold
|
|
|
Current reverse event
|
|
|
Terminal cover open event
|
|
|
Meter cover open event
|
|
|
Relay open/close event
|
|
Event recording
|
Recently 100 times events
|
|
Token Records
|
Recharge token
|
|
|
Technical token
|
|
Token recording
|
Recently 50 times for each type of token
|
