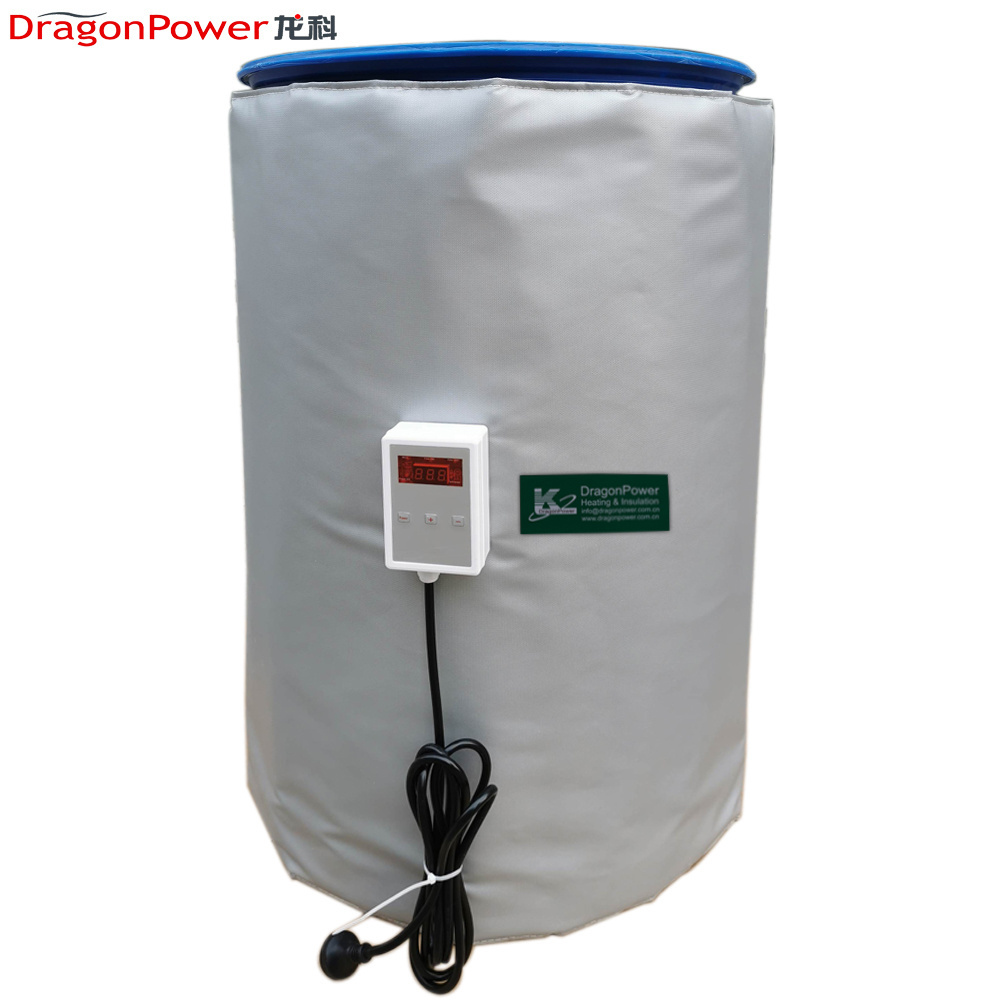

plastic drum insulation cover/ tank heater/ heating blanket for 200 liter drum

plastic drum insulation cover/ tank heater/ heating blanket for 200 liter drum

plastic drum insulation cover/ tank heater/ heating blanket 2000W/1600W is a kind of thin film which heats upon electrified, in a standard thickness of 1.5mm, Adopting nickel chrome wires or 0.05 mm~0.10mm thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting and insulating materials on both sides, and completed in high-temperature die forming and aging heat treatment. Due to its high reliability, the product is highly competitive when comparing with other electric heating film products which normally have paste materials such as graphite paste or resistor paste, etc. coated on insulation materials. As a kind of soft red film which can be applied closely on different curved surfaces, the silastic heater can be fabricated in varies shapes and powers.plastic drum insulation cover/ tank heater/ heating blanket 2000W/1600W

plastic drum insulation cover/ tank heater/ heating blanket 2000W/1600W

Features for plastic drum insulation cover/ tank heater/ heating blanket 2000W/1600W:

1. Fast heating with a coefficient of heat conductivity of only 1W/m.k. Due to its small thermal capacity, prompt turn on/off can be achieved.

2. High thermal efficiency: The temperature of electric heating film itself is only tens of centidegrees higher than that of the liquid when heating, which is 2-3 times energy saving than ordinary electric stoves.

3. Water, acid and alkali resistance, high-strength of electric insulation.

4. High mechanical strength with 100kg/cm² mechanical pressure.

5. Small size: Small space occupied when applying this heating product.

6. Easy application: Its self-insulation and free-of-open-fire property greatly help simplify the techniques of heat preservation and thermal insulation.

7. Its wide range of temperature,-60°C~250°C, can not be simply achieved by other electrical appliances.

8. Long service time: Under normal use, the product almost can be permanently and continuously used because nickel and chrome materials are durable to any corrosion, and the silastic has a high surface resistance up to 100kg/cm², which is uncomparable for any other electric heaters.

9. Made in any size, the temperature of the product can be precisely adjusted by temperature controller.

plastic drum insulation cover/ tank heater/ heating blanket 2000W/1600W Technical parameters:

Technical Data of plastic drum insulation cover/ tank heater/ heating blanket 2000W/1600W:

1. Temperature range: -40.00~250.00°C

2. Electric resistance precision: ±10%( bigger value selected)

3. Power density: 0.10~1.50w/cm²

4. Mechanical pressure: 100.00kg/cm²

5. Minimum bending radius: 3.20mm

1. Industrial equipment, pipelines, barrels, tanks, etc.

2. In/Outdoors telecommunication equipment

3.Thermal imaging of imaging equipment

4. Case protection under cold and moist environment

Packaging: insulation drum heater is packaged in Plywood cases

Shipment : 1.small quantity by DHL,FEDEX 2.Bulk goods by Sea Freight.
