Quick Details
-
Voltage:
-
220V/380V/50HZ, 220V/380V/50HZ
-
Power:
-
6 KW, 6 KW
-
Dimension(L*W*H):
-
2600*1200*1750 mm
-
Weight:
-
2800 kg, 2800 KGS
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
ZBJ-OC12 Machines for Manufacturing Paper Cups
-
Size Range:
-
3-12 oz (Mould exchangeable)
-
Raw Material:
-
180-300g/m2 (one side or two side PE coated paper
-
Productivity:
-
70-90 pcs/min
-
Packing size:
-
2600mm*1200mm*1750mm
-
Working Air Source:
-
0.4-0.5 m^3/min
Quick Details
-
Production Capacity:
-
60-70 pcs/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
QC
-
Voltage:
-
220V/380V/50HZ, 220V/380V/50HZ
-
Power:
-
6 KW, 6 KW
-
Dimension(L*W*H):
-
2600*1200*1750 mm
-
Weight:
-
2800 kg, 2800 KGS
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
ZBJ-OC12 Machines for Manufacturing Paper Cups
-
Size Range:
-
3-12 oz (Mould exchangeable)
-
Raw Material:
-
180-300g/m2 (one side or two side PE coated paper
-
Productivity:
-
70-90 pcs/min
-
Packing size:
-
2600mm*1200mm*1750mm
-
Working Air Source:
-
0.4-0.5 m^3/min
SAMPLE DISPLAY
Products Description

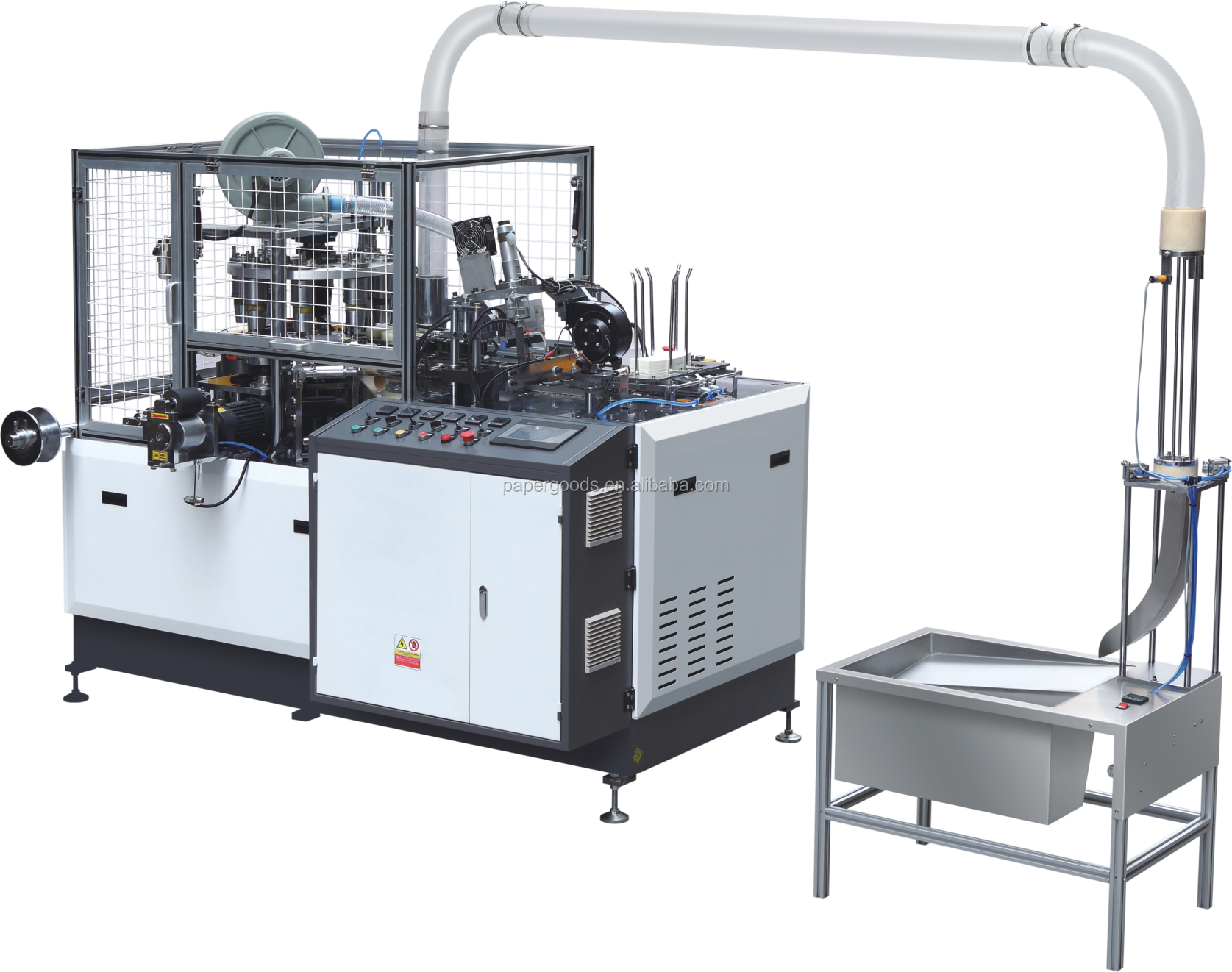

Paper cup machine zbj-oc12
*Speed 70~80 cup/minute
*HMI&PLCProgramcomputer control, easy operate, fault auto-stop and easy solution.
AdoptOpenCam(8divideforthe dividingmoving.compare with index gear box, easy maintenance, stable and reliable
easy
replace broken parts.
*Mainmechanism andmovementcontro byguality gears and shaft/axis. which is more efcient than chain axis
* Only ONE main tumtable. more effcient and reliable.
* Self lubricate (automatic oll lubricate).
*11 sensors detect all steps, any fault auto stop.
*Quality bearing and electronic element, long life
Product Paramenters
|
Number
|
Parameter
|
numeric value
|
|
1
|
Model
|
0C12
|
|
2
|
Speed
|
70-80pcs/min
|
|
3
|
Cam Type
|
Open cam
|
|
4
|
Machine Type
|
Paper Cup Machine
|
|
5
|
Cup Size
|
3-160z
|
|
6
|
Working Power
|
3.5KW
|
|
7
|
Power
|
8KW
|
|
8
|
Weight
|
2500KG
|
|
9
|
Machine Size|L*W*H
|
2250x1230x1950mm
|
