Quick Details
-
Output Speed:
-
280~~7rpm
-
Warranty:
-
one year
-
Weight (KG):
-
9 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Chenxin
-
Ratio:
-
5 10 15 20 25 30 40 50 60 80 100 160 180 200
-
installation:
-
foot mounted/flange mounted
-
output shaft:
-
18 22 28 32 40 50
-
Input type:
-
inline motor
-
motor:
-
three phsae
-
Material:
-
Aluminium
-
power model:
-
standard model or brake model
-
Quality Guarantee:
-
One year
-
Certificate:
-
ISO9001:2008
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
3.2N.M~~1230N.M
-
Input Speed:
-
1400rpm
-
Output Speed:
-
280~~7rpm
-
Warranty:
-
one year
-
Weight (KG):
-
9 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Chenxin
-
Ratio:
-
5 10 15 20 25 30 40 50 60 80 100 160 180 200
-
installation:
-
foot mounted/flange mounted
-
output shaft:
-
18 22 28 32 40 50
-
Input type:
-
inline motor
-
motor:
-
three phsae
-
Material:
-
Aluminium
-
power model:
-
standard model or brake model
-
Quality Guarantee:
-
One year
-
Certificate:
-
ISO9001:2008

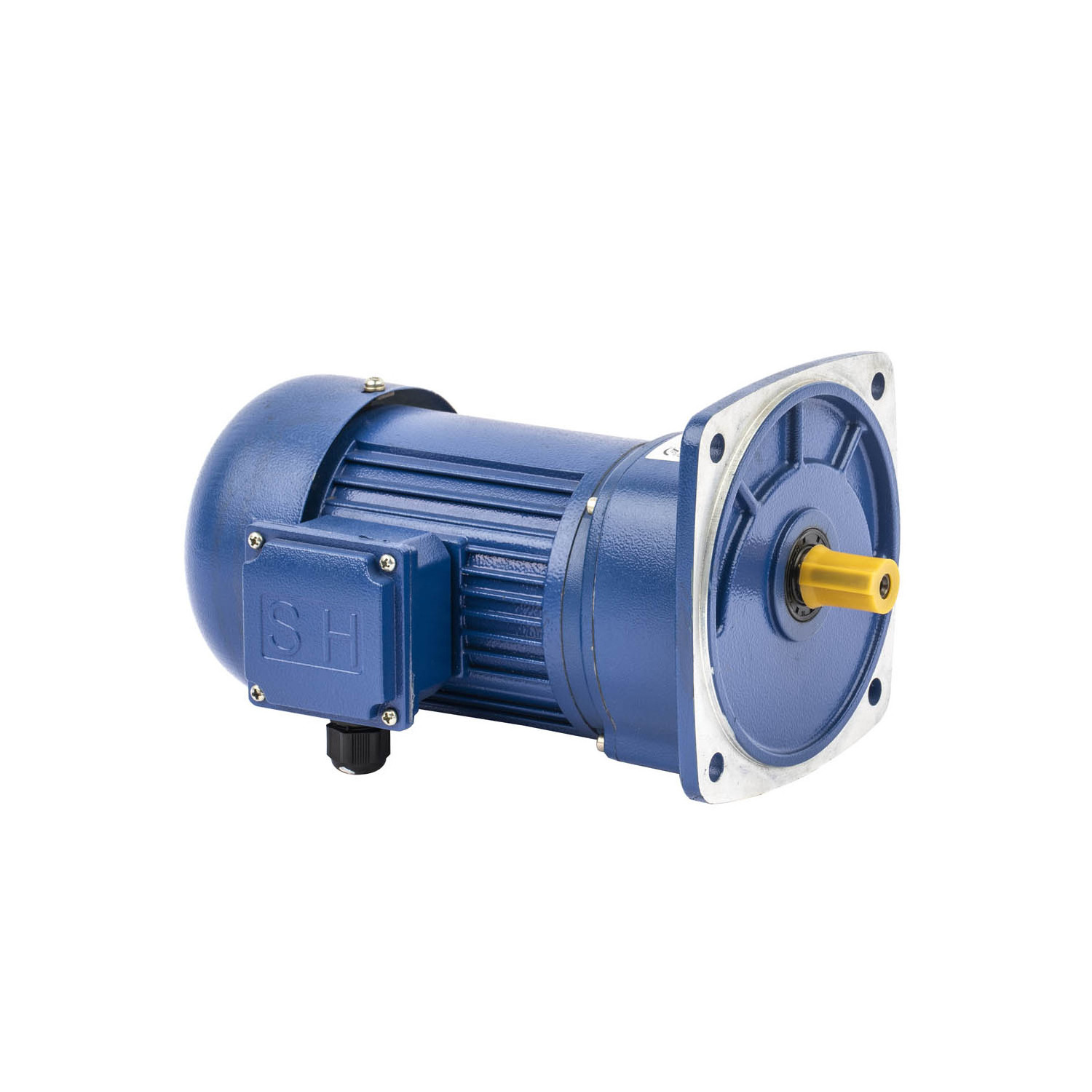

G3 Series helical
Geared motor
Products Description
We produce speed reducers in strict accordance with ISO9001 standard to provide our customers with high quality gearboxes at competitive prices. Our gearboxes are equipped with accessories from international famous brands, such as oil seal from SKF brand,lubricant from Shell brand, and bearing from NSK brand. The housing and gear are produced in our company under stringent quality control. All our products are available in large stocks, and we can also provide you with customized reducer solutions, pleasefeel confident to contact us.
|
powerkw
|
outputshaft
|
G3lS
|
UDL
|
primary outline and dimension-mount
|
|
|
|
|
|
|||||
|
|
|
|
|
A
|
B
|
F
|
I
|
J
|
O
|
|||||
|
0.18 |
Ø18
|
5,10,15,25
|
1.6~8.2
|
459.5
|
120
|
220
|
11
|
16.5
|
4
|
|||||
|
|
Ø22
|
30,40,50,60,80,100
|
1.4~7.0
|
485.5
|
120
|
220
|
11
|
19
|
4
|
|||||
|
|
Ø28
|
100,120,160,200
|
1.4~7.0
|
499
|
120
|
220
|
11
|
23.5
|
4
|
|||||
|
0.37
|
Ø22
|
5,10,15,25
|
1.4~7.0
|
494
|
141
|
220
|
11
|
19
|
4
|
|||||
|
|
Ø28
|
30,40,50,60,80,100
|
1.4~7.0
|
510.5
|
141
|
220
|
11
|
23.5
|
4
|
|||||
|
|
Ø32
|
100,120,160,200
|
1.4~7.0
|
583.5
|
141
|
220
|
13
|
28.5
|
4
|
|||||
|
0.75 |
Ø28
|
5,10,15,25
|
1.4~7.0
|
649.5
|
160
|
220
|
11
|
23.5
|
4
|
|||||
|
|
Ø32
|
30,40,50,60,80,100
|
1.4~7.0
|
678.5
|
160
|
220
|
13
|
28.5
|
4
|
|||||
Taizhou Sihai Machinery Co., Ltd.
History:
More than 20 years of experience in the manufacture of reducer products.Scale: Cover working area of 13300 square. meters,have more than 113 employees.
Technology: A group of professional . technical engineers and a strong R&D team.
Management: Scientific ERP management and strict quality control system.
Equipment: 50 CNC lathes,6 machining. centers, 6 gear grinding machines, 2 high-speed.hard hobbing machines, 12 gear hobbing
machines. 10 CNC cylindrical grinding machines,4 CNC internal grinding machines 1spectrometer, high-speed gear shaping 1 machine,
2 gear measuring centers 1 coordinate measuring instrument.
lnnovation: Continuously diversify products range to satisfy customers'needs.Production capacity: 1000 pcs/day.
Long-term supplier of world-class companies: t he main markets are in Southea st Asia, Europe, Middle East.
Marketing model: All export business.
Technology: A group of professional . technical engineers and a strong R&D team.
Management: Scientific ERP management and strict quality control system.
Equipment: 50 CNC lathes,6 machining. centers, 6 gear grinding machines, 2 high-speed.hard hobbing machines, 12 gear hobbing
machines. 10 CNC cylindrical grinding machines,4 CNC internal grinding machines 1spectrometer, high-speed gear shaping 1 machine,
2 gear measuring centers 1 coordinate measuring instrument.
lnnovation: Continuously diversify products range to satisfy customers'needs.Production capacity: 1000 pcs/day.
Long-term supplier of world-class companies: t he main markets are in Southea st Asia, Europe, Middle East.
Marketing model: All export business.
FAQ
Q1:Are you a manufacturer or a trader?
A1:We are manufacturers. . If it is convenient for you, we can first hold a video conference to visit our factory, or you can follow our factory through tips，and you are also welcome to visit our factory in China.
Q2:How to choose a reducer that meets our requirements?
A2:Tell me the reducer information, or provide the reducer related parameter diagram, or give me some clear photos of the reducer and related equipment. I would appreciate it if you could tell me the type of reducer you used initially.
Q3:What is the quality of your products?
A3:Quality is always the foundation of our company.I suggest you buy a sample to evaluate the quality.Taizhou Sihai Machinery Co.,Ltd.Engaged in research and development, design and production of reducer for more than 20 years.
Q4. Can I get 3D and 2D drawings?
A4: Of course you can, we have standard drawings. In addition, the input size of the gearbox can be customized according to different motors. We will manufacture different drawings according to your needs
Q5. How long will it take for the lead time?
A5: Generally we keep many customized items in stock, if the stock is low, we need ten to 15 to 20 days. The time to customize the product will be longer, it may take 20 to 45 days.
