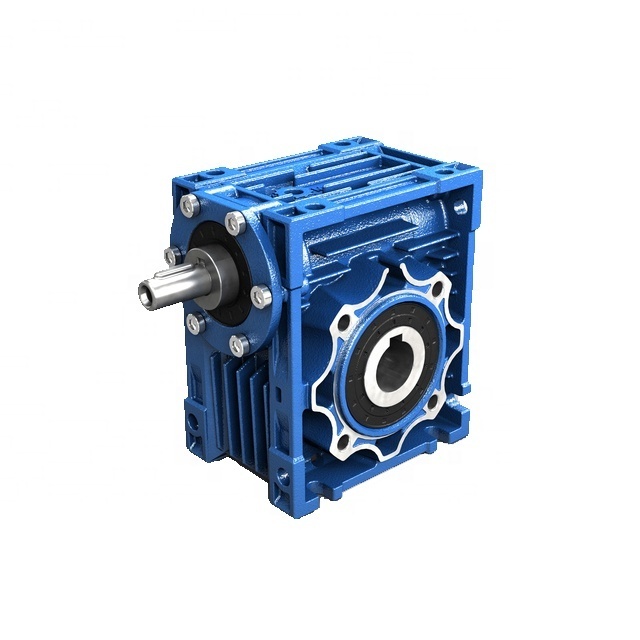

High torque worm wheel small gear reduction boxes

High torque worm wheel small gear reduction boxes

FOB Reference Price: Get Latest Price

≥100 Sets

US $1000

≥1000 Sets

US $999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Output Speed:: 14~186.7rpm

Warranty:: 100

Weight (KG):: 75 KG

Place of Origin:: Jiangsu, China

Brand Name:: GUOMAO

Quality Control System:: ISO 9001-2008

Certificate:: CCC

Color:: As your requiement

Model Number:: NMRV

Gear accuracy:: less than 6

Mounting Position:: Horizontal (foot mounted) or Vertical (flange mounted)

Worm:: 20Cr steel, carburization and nitriding treatment

Housing:: die-cast aluminum alloy,cast iron

Worm wheel:: special wearable nickel bronze alloy

Price:: competitive

Quick Details

Gearing Arrangement:: Worm

Output Torque:: 2.6-1195N.M

Input Speed:: 1400 Rpm

Output Speed:: 14~186.7rpm

Warranty:: 100

Weight (KG):: 75 KG

Place of Origin:: Jiangsu, China

Brand Name:: GUOMAO

Quality Control System:: ISO 9001-2008

Certificate:: CCC

Color:: As your requiement

Model Number:: NMRV

Gear accuracy:: less than 6

Mounting Position:: Horizontal (foot mounted) or Vertical (flange mounted)

Worm:: 20Cr steel, carburization and nitriding treatment

Housing:: die-cast aluminum alloy,cast iron

Worm wheel:: special wearable nickel bronze alloy

Price:: competitive

High torgue worm wheel small gear reduction boxes

Production description

A:Structure Features

1. High quality die casting aluminum alloy housing, suitable for universal mounting.

2. Heat sink design for cooling provides great surface area and higher thermal ca p acity

t han the casting iron housings.

3. 025 to 150, with power scope from 60W to15KW.

4. Larger speed ratio range. Each single frame size has 12 ratios from 5:1 to 100:1.

5. Hardened worm with fine grinding has the features of higher efficiency and big output torque.

6. Low noise and stable running, can adapt long term work condition in terrible environments.

7. Light weight, high mechanical strength.

8. Modularization combination PCRW and DRW extend the ration RW reducers from i=5:1 to 3200:1.

B: Main materials

Housing:

die-cast aluminum alloy (frame size: 025 up to 90) , cast iron(frame size: 110 to 150).

Worm: 20Cr steel, carburization and nitriding treatment(the hardness of tooth is HRC60).

Worm wheel: special wearable nickel bronze alloy.

C: Paint

Aluminum alloy housing:

1. Shot blasting and special antiseptic treatment on the alumin u m alloy surface.

2. After phosphating, coated with blue RAL5010 baking finished.

D: Cast iron housing :

painted with RAL5010 blue baking finished.

Details

Packing & Delivery

About us

Guomao Reducer Group Co., Ltd. is a comprehensive public company which specialize in "GUOMAO"Brand Series reducer,gearbox and gearmotors. W e have our own factory with more than 3500 workers and more than 20000 designs of fashion geared motor,annual sales volume over 3 billion RMB .
