Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles which with the same
density as waste water to moke the whole float to the surface thus achieve the goal of separation.
- Product Details
- {{item.text}}
Quick Details
-
Size:
-
3300mm*1800mm*2000mm
-
Power:
-
1.25kw
-
Weight (KG):
-
2000 kg
-
Material:
-
standard, Carbon steel
-
Application:
-
Solid-liquid Separation
-
Certification:
-
CE ISO9001
-
Voltage:
-
220V / 380V
-
Color:
-
Customized
-
Brand:
-
BETTER
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Egypt
-
After-sales Service Provided:
-
Field maintenance and repair service
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BETTER
-
Weight:
-
2T
-
Size:
-
3300mm*1800mm*2000mm
-
Power:
-
1.25kw
-
Weight (KG):
-
2000 kg
-
Material:
-
standard, Carbon steel
-
Application:
-
Solid-liquid Separation
-
Certification:
-
CE ISO9001
-
Voltage:
-
220V / 380V
-
Color:
-
Customized
-
Brand:
-
BETTER
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Egypt
-
After-sales Service Provided:
-
Field maintenance and repair service
Tips：
If you can't find the model you need or don't know which one you need, please send us an inquiry for details Click to contact us>>
If you can't find the model you need or don't know which one you need, please send us an inquiry for details Click to contact us>>
Product Description
Yw series Dissolved Air Floatation Machine is mainly used for solid-liquid or liquid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles which with the same density as waste water to moke the whole float to the surface thus achieve the goal of separation.
|
Model
|
Capacity(m³/h)
|
|
YW-5
|
4 - 5
|
|
YW-40
|
30 - 40
|
|
YW-105
|
90 - 105
|
|
YW-200
|
175 - 200
|
|
YW-300
|
280 - 300
|
-
-
Description of application effect
-
(1) Remove oil and TSS.
(2) Separate small particles and algae in groundwater.
(3) Recover valuable products in industrial sewage such as paper pulp.
(4) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.

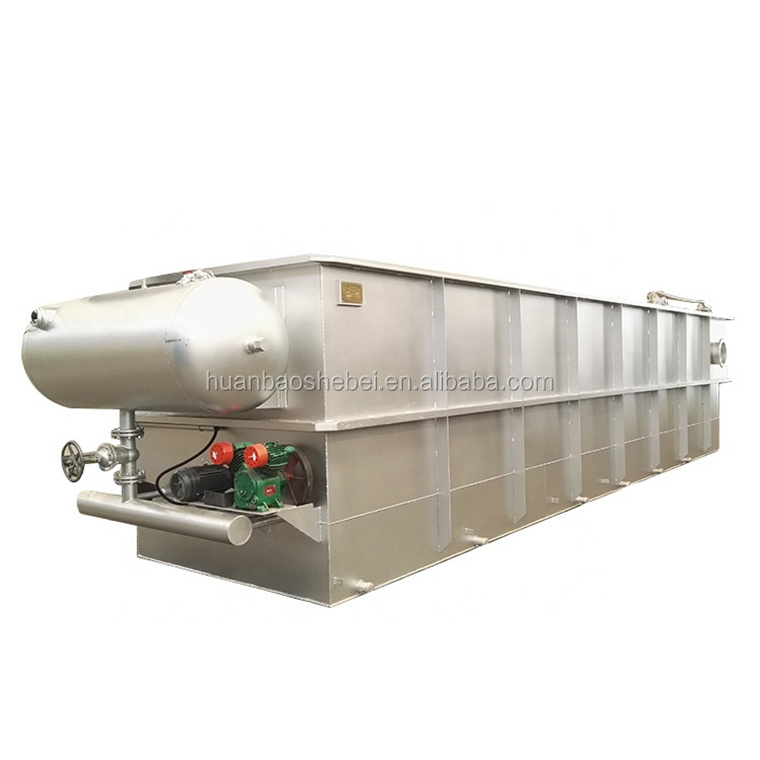

Here are the detailed pictures of our dissolved air floatation machine.
Size Chart of This Design
|
Model
|
Capacity
（m³/h）
|
Dissolved Gas Water
（m³/h）
|
Main Dynamo Power
（kw）
|
Dissolved Air Tank Size
（mm）
|
|
YW-5
|
4-5
|
1.5-2
|
3
|
400*1000
|
|
YW-10
|
8-10
|
2-3
|
4
|
500*1512
|
|
YW-50
|
40-50
|
15-20
|
7.5
|
600*1880
|
|
YW-150
|
120-150
|
60-80
|
22
|
700*1980
|
|
YW-300
|
280-300
|
120-180
|
37
|
1000*2900
|
Technical support
1. 3D operation video
2. English manual book
3. Technical drawing
4. Experienced engineers guide
