Quick Details
-
Filling Accuracy:
-
±2g
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JSM
-
Dimension(L*W*H):
-
38*23*49CM
-
Weight:
-
8 KG, 8KG
-
Product name:
-
Semi-automatic Tea Sugar Salt Filling Machine
-
Volatge:
-
110V/220V
-
Hopper volume:
-
Diameter:20CM, Height:22CM
-
Filling range:
-
1-99g, 1-200g
-
Power:
-
50W
-
Filing speed:
-
10-25 times/min(depending on materials and weight)
-
Precision:
-
±1g(Depending on the items)
-
Size:
-
38*23*49CM
-
Keywords:
-
Tea Sugar Salt Filling Machine
Quick Details
-
Machinery Capacity:
-
500BPH
-
Packaging Material:
-
Paper
-
Filling Material:
-
Other, Powder
-
Filling Accuracy:
-
±2g
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JSM
-
Dimension(L*W*H):
-
38*23*49CM
-
Weight:
-
8 KG, 8KG
-
Product name:
-
Semi-automatic Tea Sugar Salt Filling Machine
-
Volatge:
-
110V/220V
-
Hopper volume:
-
Diameter:20CM, Height:22CM
-
Filling range:
-
1-99g, 1-200g
-
Power:
-
50W
-
Filing speed:
-
10-25 times/min(depending on materials and weight)
-
Precision:
-
±1g(Depending on the items)
-
Size:
-
38*23*49CM
-
Keywords:
-
Tea Sugar Salt Filling Machine
Product Description
Product Application

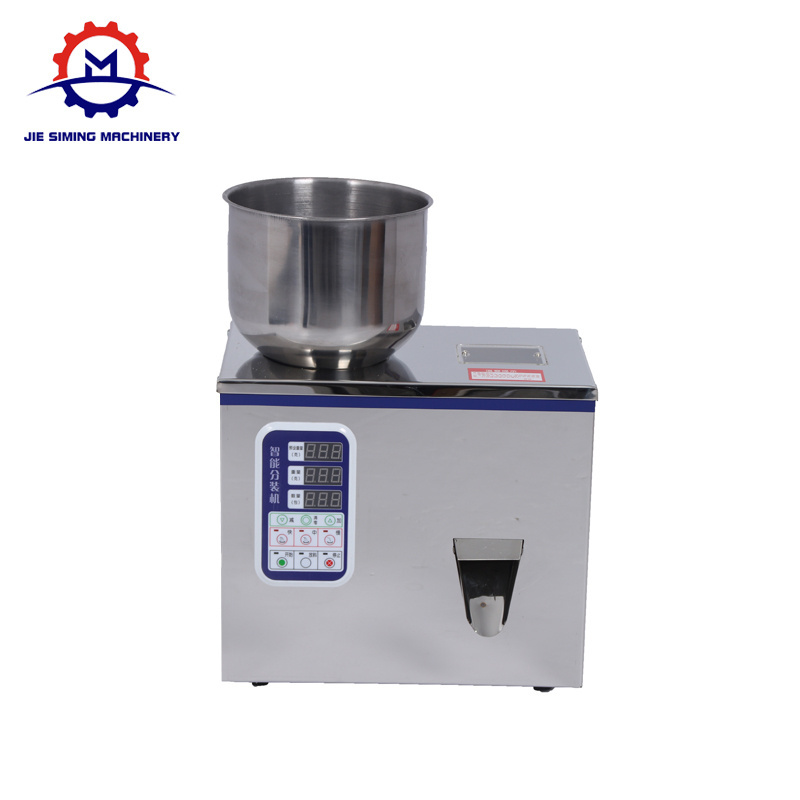

Desktop vibrating weigh filling machine, the machine vibrates the material from the hopper to the weighing hopper. When the weight of the weighing bucket reaches the set weight, the lower baffle of the weighing bucket is opened to complete one filling. The machine is mainly suitable for filling tea, granules, powder, beans, dried fruit, seasoning powder, spice powder and other materials.
Features
1. Small body and compact structure.
2. Simple operation, fast working speed, 4-25 times / min
3. The machine can be equipped with a foot switch to work more smoothly.
4. Stainless steel machine structure, durable.
How to Use the Machine?
Step 1.
Remove the three transit bolts under the machine, which have been marked in red.
Step 2.
Place the machine on level surface and plug into the power socket.
Step 3.
Press and hold CLEAR to return weight to zero.
Step 4.
Press and hold RETURN TO ZERO to reset pack count.
Step 5.
Use the Weight +/- to set desired dispense amount.
Step 6.
Select speed of dispense SLOW, MEDIUM, FAST.
Step 7.
Pour the filling materials in the hopper.
Step 8.
Put the bag under the outlet. Press START.
The machine will now fill the internal hopper to your desired weight and when the food pedal is depressed, or movement is detected near the outlet, the contents will empty. The cycle will continue until you press STOP, or the machine runs out of ingredients.
|
Model
|
JSM-200
|
|
Voltage
|
110V/60HZ 220V/50HZ AC
|
|
Power
|
50 W
|
|
Filling range
|
1-99g/2-200g(Weighing reference, rice)
|
|
Working speed
|
10-25 times/min
|
|
Size
|
38*23*49CM
|
|
Weight
|
8 KG
|
Product application
Suitable for tea, food, seeds, fruit, grain shape chemicals, small components such as general non-sticky solid materials.
Product Detail
Control panel
Transparent visible window
A transparent visible window is set beside the hopper to facilitate the observation of material flow during the mechanical operation.
Filling photoelectric induction
Infrared sensor is adopted, which is sensitive and convenient , and has high leakage prevention accuracy.Work is more automated. Just place the container under the discharge port and the machine will automatically fill it.
Power Outlets/Switches
Using high-quality accessories, the power cord is securely connected. It is not easy to leak electricity to ensure the safety of the machine.
Sensor switch interface
The filling machine can be connected with a foot switch, and the working effect is more stable. Safe operation to prevent material
leakage.
Stainless steel hopper
Foot switch
The filling machine can be connected with a foot switch, and the working effect is more stable. Safe operation to prevent material
leakage.
leakage.
