Quick Details
-
Model Number:
-
FLZ945X-16
-
Brand Name:
-
FOLS
-
Name:
-

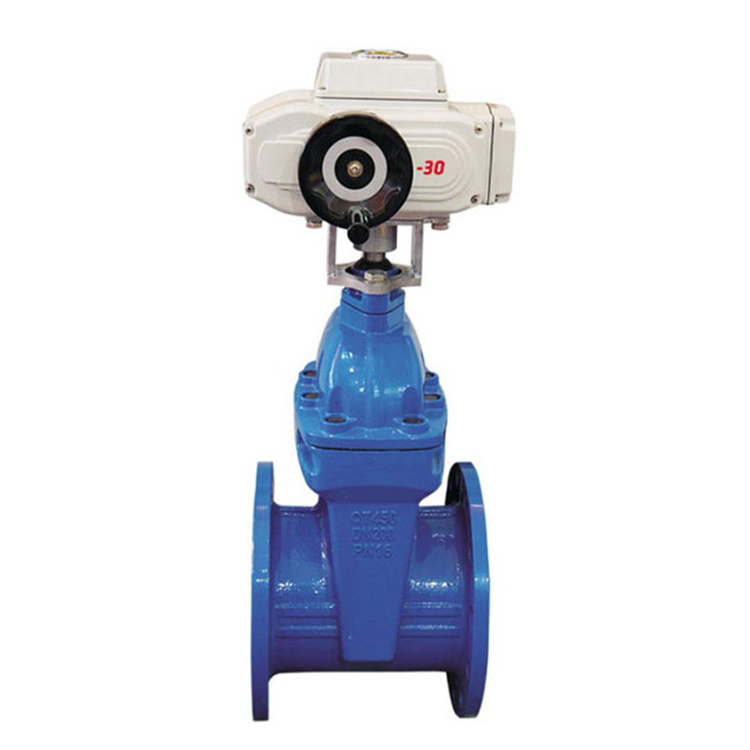

resilient seated ductile iron electric slide gate valve
-
Rated travel time:
-
10S/15S/30S
-
rotation angle:
-
0-90 degree
-
Power voltage:
-
AC100V AC220V AC380V DC24V DC12V AC24V
-
Control Mode:
-
On Off Type or Regulation Type
-
Prtection:
-
IP65
-
Pressure:
-
PN16, PN25
Quick Details
-
Port Size:
-
Standard, 1/2' -24'(DN15-600), 2"~12", DN50~DN400
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FLZ945X-16
-
Brand Name:
-
FOLS
-
Name:
-
resilient seated ductile iron electric slide gate valve
-
Rated travel time:
-
10S/15S/30S
-
rotation angle:
-
0-90 degree
-
Power voltage:
-
AC100V AC220V AC380V DC24V DC12V AC24V
-
Control Mode:
-
On Off Type or Regulation Type
-
Prtection:
-
IP65
-
Pressure:
-
PN16, PN25
motorized actuated operated resilient seated ductile iron electric slide gate valve
| · Our Advantages · |
Advantages:
• Guangzhou Fols Valve Technology Co., Ltd. aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.
• Over 30 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.
• 3 production base, large stock, SHORT LEAD TIME, same day shipping.
•
German imported manufacturing facilities
, 100% Q.C passed before shipping, quality assured. Industrial standard
1 YEAR (12 months) warranty.
• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS, BV, explosion & fire safe.
• OEM / ODM service available.
| · Product Specification · |
Multi turn valve actuator is a micro valve actuator that elaborately designed and manufactured by the most advanced technology, it mainly assemble with gate valve. This gate valve disc is wrapped in rubber that could cause deformation and compensation action to attain good seal effect, avoid leaking, rusting. It is widely us in water supply, building, petroleum, chemistry, food, pharmaceuticals, light textile, electrical, shipping industry, metallurgy, energy systems. It is easy operation, good sealing, long service life, and simple installation.
Electric actuator ( Optional)
| Type | Control type | Function |
| Electric actuator | ON-OFF type | Feedback: the active signal, passive contact signal, resistance |
| (optional) | Regulation type | Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus |
| Filed operation |
The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Specification of Electric Actuator | ||||||||
| Items Parameter | FOSD-05 | FOSD-10 | FOSD-16 | FOSD-30 | FOSD-60 | FOSD-125 | FOSD-250 | FOSD-400 |
| Output torque | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| Rated travel time | 10S/20S | 15S/30S | 30S/60S | 100S | 100S | 100S | ||
| Rotation angle | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° |
| Working current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting power | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Motor power | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Weight | 3kg | 5kg | 5.5kg | 8kg | 8.5kg | 15kg | 15.5kg | 16kg |
| Power | AC220V, AC24V, AC110V , AC220 , AC380, DC24V (choose options) | |||||||
| Input signal | 4-20mA (Modulating type) | |||||||
| Output signal | 4-20mA (Modulating type) | |||||||
| Insulation resistance | 100M/500VDC | |||||||
| Pressure withstanding | 1500 VAC , one minutes | |||||||
| Inbreaking protection | IP65/IP67 | |||||||
| Installation angle | 360° any angle | |||||||
| Electrical Interperation | one G1/2 CNCO,one Power cord connection port,one signal wire connection port | |||||||
| Ambient humidity | -30°C to +60°C | |||||||
| Pilot circuit options | A:with limit position switch style (standard) | |||||||
| B: with neutral position switch style ( passive contact) | ||||||||
| C:with potentiometer style | ||||||||
| D: both potentiometer and neutral position switch style | ||||||||
| E: with control module style ( Modulating Applications) | ||||||||
| F: DC motor control circuit style | ||||||||
| G:Three-phase current 380V control circuits style | ||||||||
| H:Three-phase current 380V, both neutral position switch and potentiometer style | ||||||||
| · Wiring Diagram · |
| · Product Picture · |
| · More type of electric actuator · |
Explosion-proof With handwheel Multiturn Small
ISO 5211 Mounting
