- Product Details
- {{item.text}}
Quick Details
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Secukey/oem
-
Model Number:
-
C-strike9
-
Certification:
-
CE

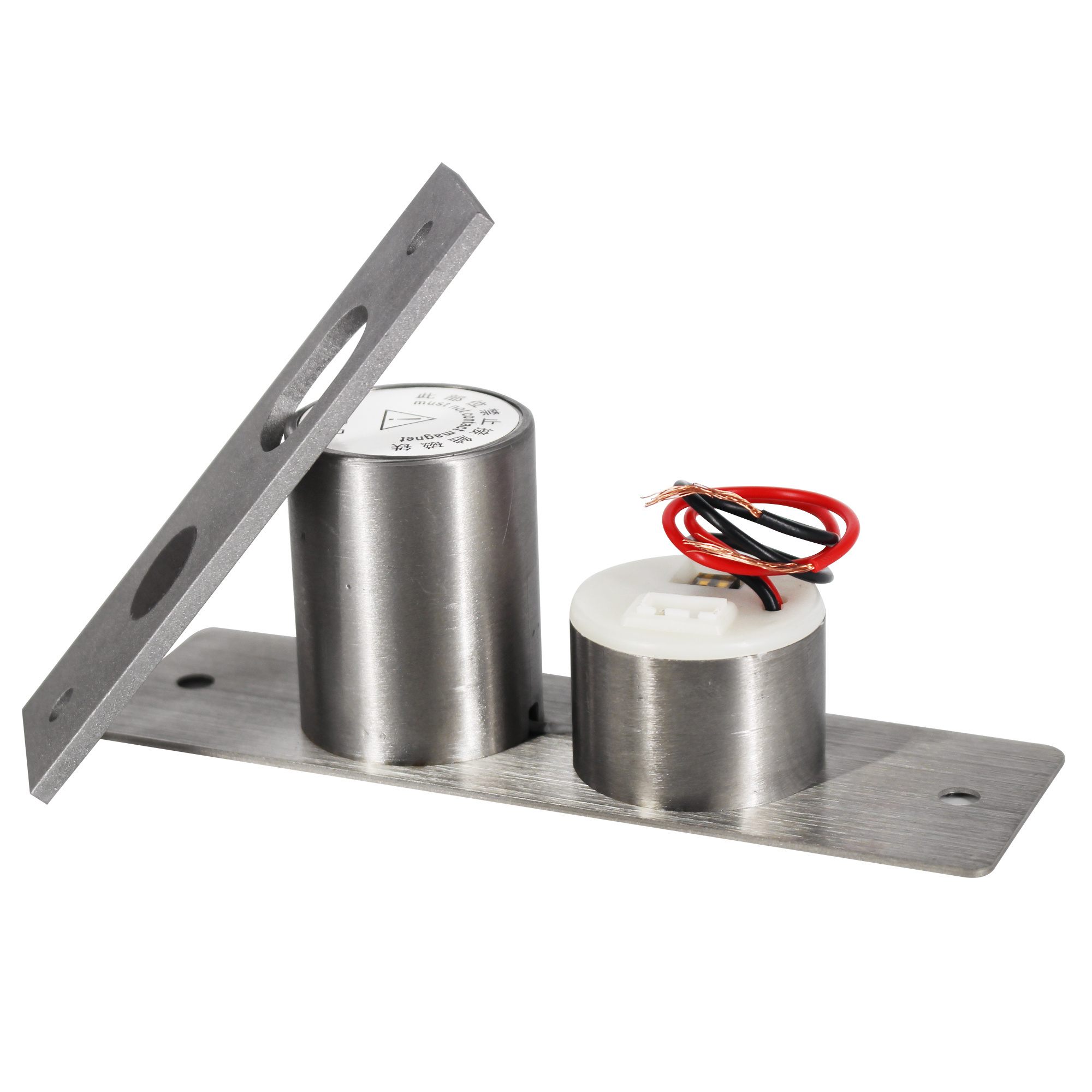

C-Strike 9
T Type Electric Bolt
Main Features
> Fail safe: Locked when energized
> Holding force: 800kg
> Time delay and signal feedback
> Time delay and signal feedback
> Face plate size: 12.5L x 3.8W x 4.2H (cm)
> Strike size: 9.0L x 2.5W x 0.2H (cm)
> Operating voltage: DC12V
> Operating voltage: DC12V
Specification
|
Product Parameter
|
Parameter Description
|
|
Fail Safe
|
Locked when energized
|
|
Face Plate
|
12.5L x 3.8W x 4.2H (cm)
|
|
Strike
|
9.0L x 2.5W x 0.2H(cm)
|
|
Bolt
|
1.6cm DIA, stainless steel 1.6cm throw
|
|
Voltage
|
12V DC
|
|
Start Current
|
900mA
|
|
Standby Current
|
120mA
|
|
Solid Bolt
|
Polishing housing, 800Kg holding force
|
|
Suitable For
|
Wooden door, glass door, metal door
|
| Signal Output | Door status output, NC/COM/NO |
|
Induction Distance
|
8mm
|
| Operating temp | 0 o C ~ 60 o C (32 o F ~ 140 o F) |
|
Operating Humidity
|
0% ~ 90%(non-condensing)
|
|
Special Designed
|
Tested to 500000 cycles
|
|
Face place material
|
High aluminum, carrulous line finished
|
|
Weight
|
0.26kg
|
