Low Cost Biomass Pellet Mills/Alfalfa Pellet Processing Machinery

Low Cost Biomass Pellet Mills/Alfalfa Pellet Processing Machinery

FOB Reference Price: Get Latest Price

≥1 Sets

US $15000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Qiaoxing

Voltage:: Customized

Dimension(L*W*H):: 3100x1300x2250mm

Weight (KG):: 3500 KG

Item Name:: Low Cost Biomass Pellet Mills/Alfalfa Pellet Processing Machinery

Capacity:: 500kg-10ton per hour

Raw material:: Any agriculture waste and wood waste

Pellet size:: 6/8/10/12mm

Color:: Customer's Request

Motor:: SIEMENS Brand or China Wannan

Bearings:: SKF Or NSK

Application:: Make Biomass Pellets

Type:: Gear Drive Ring Die Pellet Mill

Quick Details

Pellet Diameter (mm):: 6 - 12

Output (kg/h):: 500 - 3000 kg/h

Place of Origin:: Chongqing, China

Brand Name:: Qiaoxing

Voltage:: Customized

Dimension(L*W*H):: 3100x1300x2250mm

Weight (KG):: 3500 KG

Item Name:: Low Cost Biomass Pellet Mills/Alfalfa Pellet Processing Machinery

Capacity:: 500kg-10ton per hour

Raw material:: Any agriculture waste and wood waste

Pellet size:: 6/8/10/12mm

Color:: Customer's Request

Motor:: SIEMENS Brand or China Wannan

Bearings:: SKF Or NSK

Application:: Make Biomass Pellets

Type:: Gear Drive Ring Die Pellet Mill

Raw Materials

Product Description

Low Cost Biomass Pellet Mills/Alfalfa Pellet Processing Machinery can make the pellets from the rice husk, sunflower husk, wood chips, coffee husk etc . it also can collet the material , mix and adjust the quality to make small and roundish pellets. The technological process is rational in succession. Every unit's performance is good. the aricrew cooperation is compact. The whole line take small area and has small energy consumption. It also can make pellets from all kinds of wood shaving, sawdust too.

Low Cost Biomass Pellet Mills/Alfalfa Pellet Processing Machinery It mainly contains crush process,Drying process pellet making process, cooling process, packing process and waste air handing process(optional), The final pellet has good quality and meet the europe standard

The diameter of the pellets can be 6mm,8mm,10mm,12mm, the length can be adjusted according to the requirement of the client, for example 4cm,8cm,12cm

Detailed Images

(1) Chipping Process: Wood chipper can chip the wood logs into small wood chips , Suitable for a wide range of raw materials; the body using high-strength steel welded together, supporting the whole machine. Install two hard alloy knife on the roller, fixed with a special knife bolts. According to different material thickness, the feed roller assembly can fluctuate within a certain range by the hydraulic system. Wood chips of suitable size fall through the screen holes and discharged from the bottom of wood chipper, large pieces will continue cutting in the machine.

(2) Hammer Mill Crushing System : This system is one important system , the hammer mill can crush the wood chips, sunflower husk, rice husk, coffee husk etc into small dust .

(3) Rotary Drying system : Three-tier structure, the material in the cylinder dry repeatedly three times. low energy consumption, high efficiency, high capacity. Performance is far superior to the ordinary single-drum dryer.Multi-layer structure, improve cylinder insulation effect, increase the heat utilization. Roller speed is adjustable, precise gear drive, smooth operation, low noise. Optimized design stove, the new structure. matched with hot air filtration system of the stove to prevent flames entering the dryer cylinder. suction fan special used in water cooling system, ensure stable operation of air fan under high heat air. Afterheat can be recycled into the dryer and improve the utilization of heat energy.

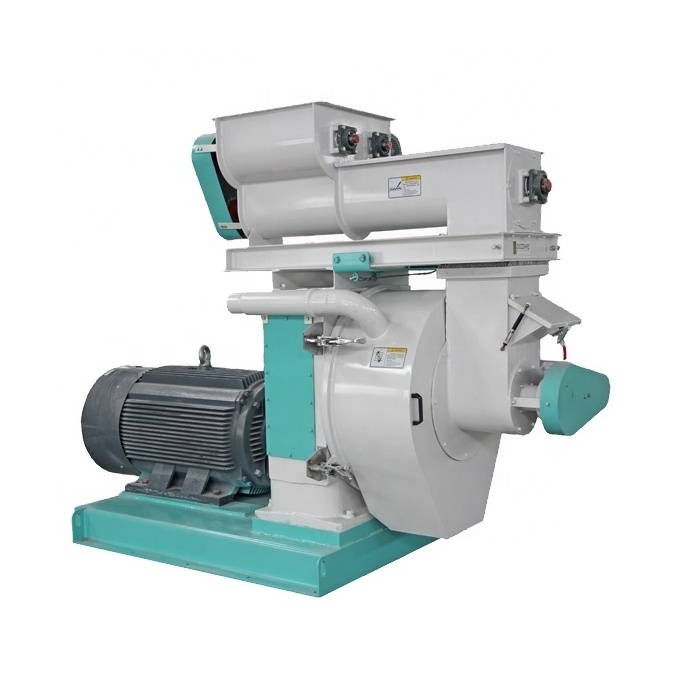

(4) Pelleting System: MZLH Wood Pellet Machine is the most important equipment, which have the following features: Driving Gear adopts the high precision gear transmission structure. The wear bearing is made from SKF. The motor use the Siemens Brand .The ring die adopts the hoop fastening method, which is increasing the speed of discharge comparing with the past bolt fastening method. As a result, the capacity is 10-15% higher than the belt transmission structure.

(5) Cooling System : After the pelletizing process, the temperature of the wood pellet is about 60-80 degree, and the moisture content of the wood pellet is about 15%, so we need use Cooler to reduce about 3-4% moisture, so the wood pellet is easy to store. But considering the feedback from some foreign clients, the local climate is very humidity; they hope to cool the wood pellet with moisture 7-8%. In order to satisfy the different need from different clients, we develop one kind of new Stabilizer Combined Cooler.

(6) P acking System: After cooling, the wood pellet will not directly enter into the fuel process, avoiding the wood pellet affected with damp. The packing process is necessary. In this process, we assemble our domestic best Semi-Auto Packing Machine to you.

(7) Waste air Process Machine : 1.An unique jet device,which is equipped with a dismountable cabinet and built-in envelops,easy for maintenance. 2.Up to 1 m2 filtration area Of each bag enables its installation in a small space. 3.Compact design and high dusting efficiency(up to 99.5%),etc. 4.Widely applied for unit-machine dusting at a dump pit,a grinde,the inlet or for central dust control as well as for fines recovery in a pneumatic conveying system in grain milling and feed manufacturing industries. 5.AdditionaI applications for dust control in light industry,chemical industry,mines etc.

Packing & Delivery

Our Service :

for the Low Cost Biomass Pellet Mills/Alfalfa Pellet Processing Machinery We can spply the CO, FORM A, FORME E, FORM F, FORM P certificate of original for you, it may can save you some import tax .
