Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Weight (KG):
-
8000 KG
-
Power (kW):
-
50 KW
-
Feature:
-
Full Automatic
-
HF power:
-
10KW
-
Application:
-
Wood drying
-
Working Principle:
-
High Frequency Heating
-
Capacity:
-
3CBM(customizable)
-
Effective drying size:
-
3000*1000*1000
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CHRYSO
-
Machine Type:
-
Wood Vacuum Dryer
-
Marketing Type:
-
Hot Product 2023
-
Weight (KG):
-
8000 KG
-
Power (kW):
-
50 KW
-
Feature:
-
Full Automatic
-
HF power:
-
10KW
-
Application:
-
Wood drying
-
Working Principle:
-
High Frequency Heating
-
Capacity:
-
3CBM(customizable)
-
Effective drying size:
-
3000*1000*1000
Product Description

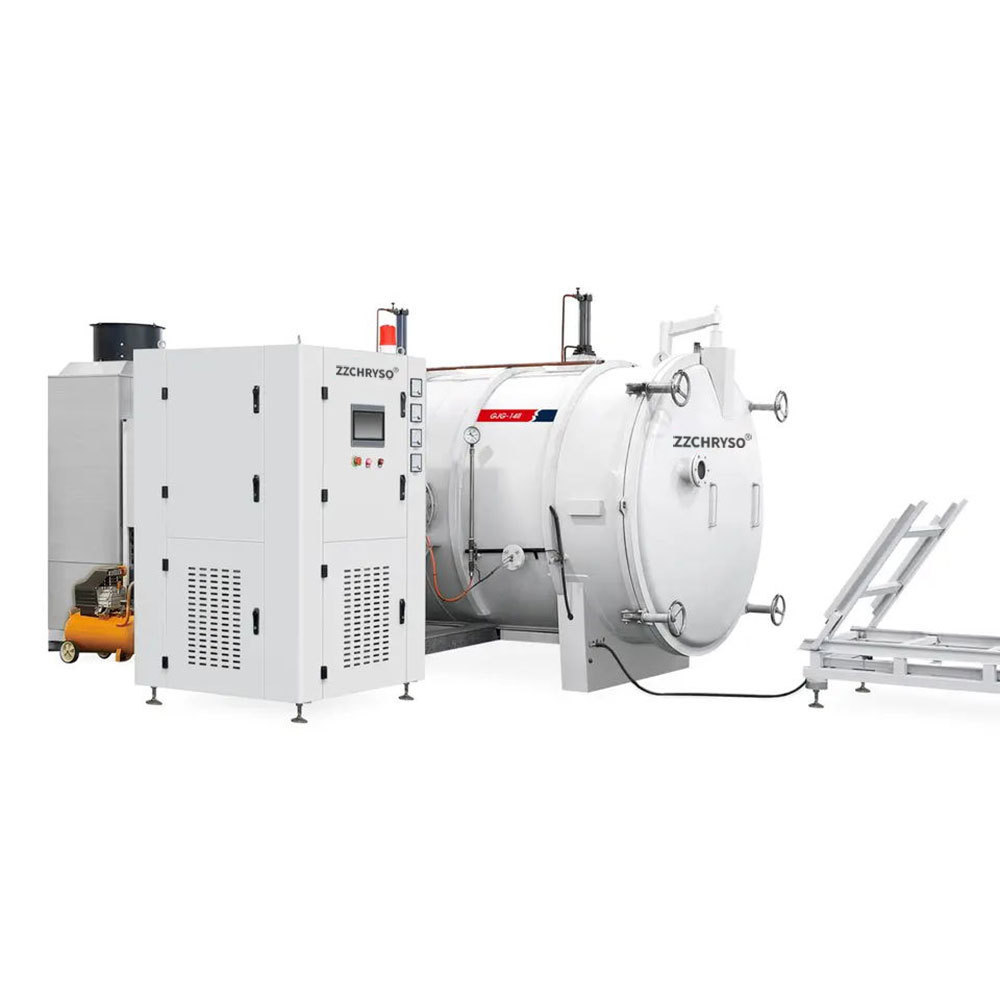

High Frequency Vacuum Wood Dryer
is many times faster than traditional kiln dryers. The drying process can range from severalhours for thiner, softer woods to several days for thicker, harder woods.
All models include high-tech Programmable Logic Controllers. The PLC comes with common hardwood presets ready for use. The PLC automates the drying process by starting the hydraulic pump, HF generator, vacuum pump and cooling system.
The cooling system pulls the moisture into an external water tank which can then be drained. The weighing system calculates change data to show the moisture content in the wood.
lt is suitable for high-efficiency remova of wood stress (especially wood secondary dryingbalancel), fast drying of large section thick wood, fast drying of hard wood especially mahogany), fast drying of small batch wood, drying offloor and surface boards,and drying of veneers.
All models include high-tech Programmable Logic Controllers. The PLC comes with common hardwood presets ready for use. The PLC automates the drying process by starting the hydraulic pump, HF generator, vacuum pump and cooling system.
The cooling system pulls the moisture into an external water tank which can then be drained. The weighing system calculates change data to show the moisture content in the wood.
lt is suitable for high-efficiency remova of wood stress (especially wood secondary dryingbalancel), fast drying of large section thick wood, fast drying of hard wood especially mahogany), fast drying of small batch wood, drying offloor and surface boards,and drying of veneers.
High Frequency Drying Features:
1. Quick dehydration, eliminate internal stress, widely used.
2. High frequency heating inside and outside at the same time, the wood is heated evenly, and the moisture is balanced.
3. Combined vacuum system quickly dehydrates and stress relief, drying in seconds.
2. High frequency heating inside and outside at the same time, the wood is heated evenly, and the moisture is balanced.
3. Combined vacuum system quickly dehydrates and stress relief, drying in seconds.
Specification
|
Model No.
|
GJG-1II-10(15)B-CRS
|
GJG-3II-10(20)B-CRS
|
GJG-4II-20(30)B-CRS
|
GJG-5II-20(30)B-CRS
|
GJG-6II-20(30)B-CRS
|
GJG-10II-30(50)B-CRS
|
GJG-14II-30(50)B-CRS
|
GJG-20II-50(80)B-CRS
|
GJG-30II-100(120)B-CRS
|
||||||||
|
Capability(m3)
|
1CBM
|
3CBM
|
4CBM
|
5CBM
|
6CBM
|
10CBM
|
14CBM
|
20CBM
|
30CBM
|
||||||||
|
Power
|
AC 380V,50Hz,3p 4wires or custom
|
|
|
|
|
|
|
|
|
||||||||
|
HF power
|
10KW/15KW
|
10KW/20KW
|
20KW/30KW
|
20KW/30KW
|
20KW/30KW
|
30KW/50KW
|
50KW/80KW
|
80KW/100KW
|
100KW/120KW
|
||||||||
|
Frequency
|
6.78MHz/13.56MHz
|
|
|
|
|
|
|
|
|
||||||||
|
Vacuum
|
-0.092MPa
|
|
|
|
|
|
|
|
|
||||||||
|
Loading size(mm)
|
2100*700*700
|
3000*1000*1000
|
4000*1000*1000
|
3000*1300*1300
|
6000*1000*1000
|
6000*1300*1300
|
8000*1300*1300
|
8000*1600*1600
|
8000*2000*2000
|
||||||||
Feature
1. Automatic control, multi-process, sensor monitoring;
2. Wood drying process automatic control, really achieves “Unattended”;
3.Multiple drying process selection, multi-sensor detection device, to ensure the quality of wood drying;
4. Intuitive Operation Interface, remote assistance support, remote maintenance, and system upgrade (optional)
3.Multiple drying process selection, multi-sensor detection device, to ensure the quality of wood drying;
4. Intuitive Operation Interface, remote assistance support, remote maintenance, and system upgrade (optional)
High Frequency Vcuum Dryer Details
Product Display
Application Scene
High Frequency vacuum dryer
can be used for thick wood drying, soft/hard wood drying, floorboard drying, hardwood drying, veneer drying, and furniture board of the secondary drying .
