SGL series load isolation switch is manufactured by our company with the up-to-date technique imported from europe. This Product meets the international technical level in the late 1990s. Being the most ideal renewal of domestic congeneric products.
This kind of load isolation switch is widely used in the distribution system and automatic system of architecture, electrical power, petrochemical, and other industries.
This kind of load isolation switch possesses flexible structure of modularized design, possesses flexible and versatile composition ality. it adopts the shell made by unsaturated polyester resin reinforced by glassfibre. it has very high diellectric performance. protective capability. and reliable operation.
The operating mechanism is an elatic-accumulating accelerating mechanism for instant release, which makes instant in and off the double break point contact, it has on relationship with the speed of operating handle and increases geeatly various electric properties and mechnical properties.
Many forms of structures and operations in which the on and off state of contact is abserved through windows.There are operation inside or outside the board, frontal or lateral operations, there are also connections behind the board.
This kind of switch as a good-looking outline and various functions, being very novel, simple and small-dimensioned, and the best choice among the congeneric products.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Suntree/OEM
-
Model Number:
-
SGL8N-2
-
Max. Current:
-
250
-
Type:
-
Load Isolator Switches
-
Certificates:
-
TUV,CE,CB,IEC
-
Rated voltage:
-
DC 1000V 1500V
-
Rated current:
-
250A
-
Gurantee period:
-
2 years
-
Operating:
-
Manually operated, Indoor or outdoor
-
Standard:
-
IEC60947-3
-
Product name:
-
Load Disconnecting Switch
-
Pole:
-
2P/3P/4P/6P
-
Certificate:
-
CCC/CE/ISO9001
-
Certification:
-
TUV,CE,CB,IEC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
1500
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Suntree/OEM
-
Model Number:
-
SGL8N-2
-
Max. Current:
-
250
-
Type:
-
Load Isolator Switches
-
Certificates:
-
TUV,CE,CB,IEC
-
Rated voltage:
-
DC 1000V 1500V
-
Rated current:
-
250A
-
Gurantee period:
-
2 years
-
Operating:
-
Manually operated, Indoor or outdoor
-
Standard:
-
IEC60947-3
-
Product name:
-
Load Disconnecting Switch
-
Pole:
-
2P/3P/4P/6P
-
Certificate:
-
CCC/CE/ISO9001
-
Certification:
-
TUV,CE,CB,IEC
About Suntree
What can we supply for you:
> Sample:don't hesitate to ask us for samples to check before placing order.
> Develop new product:as long as your product is competitive,let's do it.
> OEM,ODM:if you ask us to do OEM,ODM,it's will be perfect.
> Test reports,certificate:we can do any test reports and certificates once you request before placing order.
> Shipment:by sea,air or express?which would you prefer,we will do that.
> Sample:don't hesitate to ask us for samples to check before placing order.
> Develop new product:as long as your product is competitive,let's do it.
> OEM,ODM:if you ask us to do OEM,ODM,it's will be perfect.
> Test reports,certificate:we can do any test reports and certificates once you request before placing order.
> Shipment:by sea,air or express?which would you prefer,we will do that.
Products Details

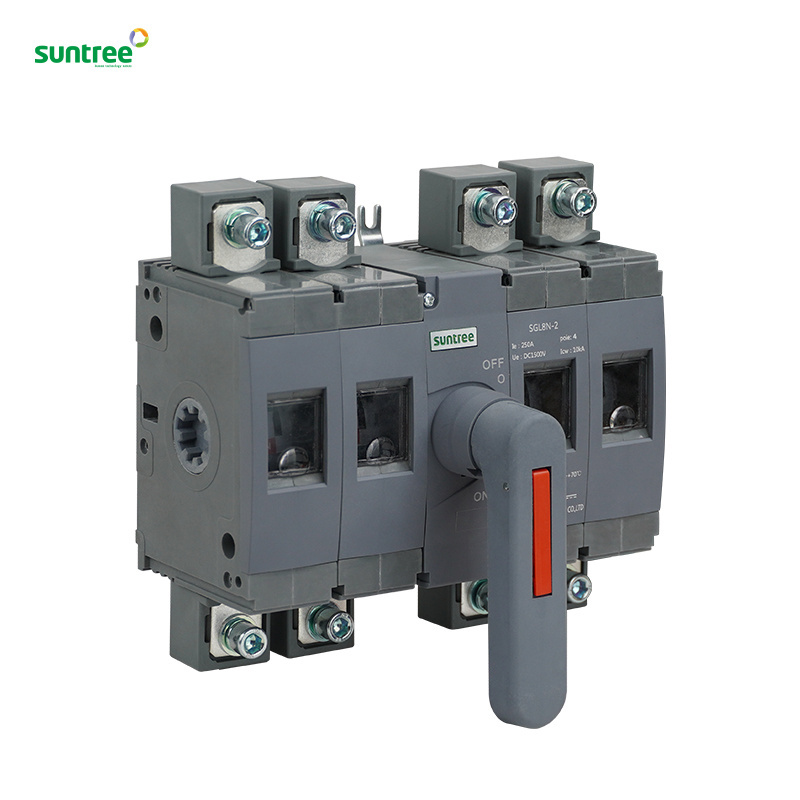

1000V 1500V dc voltage load isolator switches
|
Model
|
SGL8N-2
|
|
Productor name
|
1500v 1000V DC load Isolating switch
|
|
Pole
|
2P 3P
|
|
Rated insulating voltage Ui
|
1000V 1500V
|
|
Rated working voltage Ue
|
1000V 1500V DC
|
|
Rated current
|
250A
|
|
Rated impulse withstand voltage Uimp
|
12KV
|
|
Standards
|
IEC60947-3
|
|
Certificate
|
CE/CB/TUV/IEC/SAA
|
|
Breaking capacity
|
10KA
|
|
Ambient temperature
|
-25℃-- +85℃
|
Product packaging
FAQ
1. Are you manufacture?
- Yes,we have our own factory,welcome to visit our company,and we can design according to your needs and provide you with the competive price.
2. Can you accept to use our logo?
- If you have good quantity,it absolute no problem to do OEM.
3. Can I get some samples?
- Yes,sample order is welcomed.
4. What is the delivery time?
- A Week for samples;The specific delivery time depend on the items and the quantity of your order.
- Yes,we have our own factory,welcome to visit our company,and we can design according to your needs and provide you with the competive price.
2. Can you accept to use our logo?
- If you have good quantity,it absolute no problem to do OEM.
3. Can I get some samples?
- Yes,sample order is welcomed.
4. What is the delivery time?
- A Week for samples;The specific delivery time depend on the items and the quantity of your order.
