Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Dimensions(L*W*H):
-
5400x2000x1700mm
-
Weight:
-
4000 KG
-
Certification:
-
CE
-
Warranty:
-
1 year
-
Model:
-
LC-CNC412
-
Product name:
-
automatic servo screen printer for glass plastic bottle
-
Printing Product Shape:
-
Round,flat,oval
-
Printing color:
-
4color
-
Max Product size:
-
round diameter 100mm, length 310mm
-
eft and right stroke of scraper:
-
355mm
-
Scraper:
-
Cylinder control 20mm
-
Compressed air:
-
5-6BAR
-
Power supply:
-
380V/50HZ
-
Total power:
-
35KW
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Dimensions(L*W*H):
-
5400x2000x1700mm
-
Weight:
-
4000 KG
-
Certification:
-
CE
-
Warranty:
-
1 year
-
Model:
-
LC-CNC412
-
Product name:
-
automatic servo screen printer for glass plastic bottle
-
Printing Product Shape:
-
Round,flat,oval
-
Printing color:
-
4color
-
Max Product size:
-
round diameter 100mm, length 310mm
-
eft and right stroke of scraper:
-
355mm
-
Scraper:
-
Cylinder control 20mm
-
Compressed air:
-
5-6BAR
-
Power supply:
-
380V/50HZ
-
Total power:
-
35KW
Product description

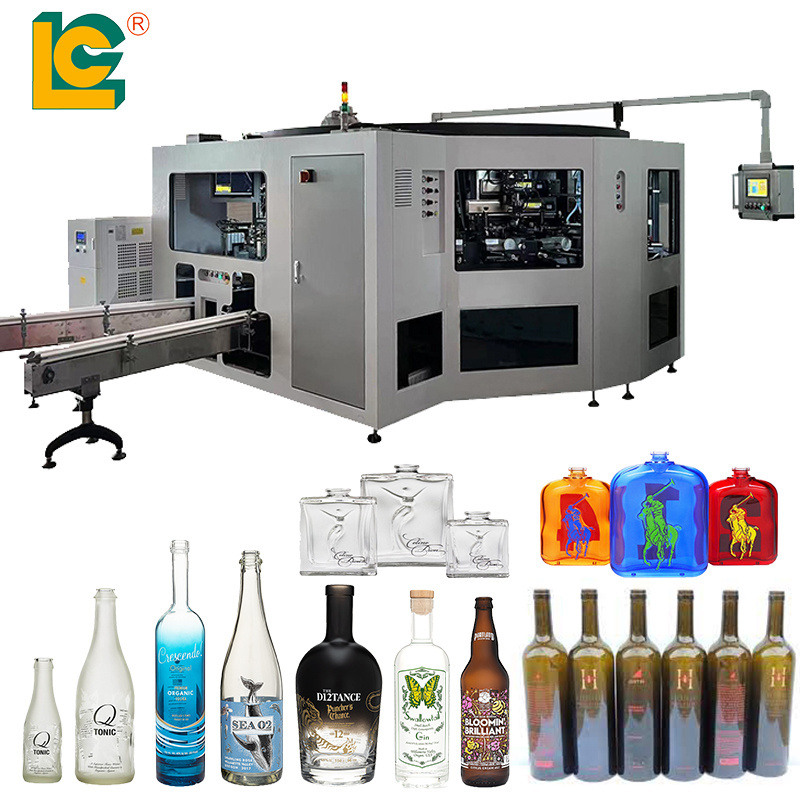

Servo 4 Color Automatic Screen Printing Machine for plastic glass bottles jars cups
container
Fast, Innovative, Convenient and Green
This full servo printing machine can print round, oval, square, polygonal plastic and glass bottle jars containers cups products.
Capabilities include jars, glass, ovals and containers of any shape for cosmetic and industrial companies.
The machine Include Feeding conveyor belt + flame treatment + CCD image positioning + electrostatic dust removal + UV screen printing + UV LED curing + unloading conveyor belt.
The visual positioning system can locate the bottle bottom or bottle body.
screen printing head can be replaced to hot stamping head,make multi color screen printing and hot stamping in one line.
Completely servo-assisted, it can print up to 17 colours on plastic or glass multi-format containers.
Thanks to servo-assisted printing adjustments that afford a 0.1mm adjustment tolerance between colours.
Thanks to servo-assisted printing adjustments that afford a 0.1mm adjustment tolerance between colours.
Features
1.Auto loading and unloading with multi axis servo robot.
2.Dust clean
3.Auto flame treatment before printing and UV LED curing after printing .UV LED lamps and high-efficiency engines assure reduced energy consumption, Zero ozone emission and reduced CO2 production.
4. Auto printing system with all servo driven:printing heat ,mesh screen frame ,rotation etc.
all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)
5. Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen. it only takes 20 minutes to debug each color.
6.All ethercat servo motors with industrial PLC control&touch screen operation system,internet cable connection available,easy for fucture maintenance and ungrading.
7. Adopt linear high-speed precision CCD scanning : for cylindrical products without registration point, repeat print to be double colors.
8. Well built machine house with CE standard safety design.
9.Can use UV ink or thermoplastic ink.
2.Dust clean
3.Auto flame treatment before printing and UV LED curing after printing .UV LED lamps and high-efficiency engines assure reduced energy consumption, Zero ozone emission and reduced CO2 production.
4. Auto printing system with all servo driven:printing heat ,mesh screen frame ,rotation etc.
all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)
5. Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen. it only takes 20 minutes to debug each color.
6.All ethercat servo motors with industrial PLC control&touch screen operation system,internet cable connection available,easy for fucture maintenance and ungrading.
7. Adopt linear high-speed precision CCD scanning : for cylindrical products without registration point, repeat print to be double colors.
8. Well built machine house with CE standard safety design.
9.Can use UV ink or thermoplastic ink.
Specifications
The square bottle can be printed on 4 sides at one time; the flat bottle can be printed on 2 sides at one time.
The product loading and unloading mechanism is driven by German Beckhoff + Huichuan servo drive to run more smoothly and accurately.
The screen printing fixture adopts the front and rear full clamps to ensure accurate positioning, and the screen printing process does not shake or shift;
The drive of the turntable mainly adopts the high-precision servo turntable of Spain's GOIZPER. At the same time of accurate indexing, the movement sequence of each mechanism is allocated to make the machine run more efficiently and safely.
In the process of screen printing, the lateral speed of the screen printing screen matches the speed of the circular motion of the bottle to ensure that the screen printing pattern does not stretch or shrink.
The product loading and unloading mechanism is driven by German Beckhoff + Huichuan servo drive to run more smoothly and accurately.
The screen printing fixture adopts the front and rear full clamps to ensure accurate positioning, and the screen printing process does not shake or shift;
The drive of the turntable mainly adopts the high-precision servo turntable of Spain's GOIZPER. At the same time of accurate indexing, the movement sequence of each mechanism is allocated to make the machine run more efficiently and safely.
In the process of screen printing, the lateral speed of the screen printing screen matches the speed of the circular motion of the bottle to ensure that the screen printing pattern does not stretch or shrink.
|
Model
|
LC-CNC412
|
Left and right stroke of scraper
|
355mm
|
|
Printing color
|
4color
|
Scraper, oil return knife up and down stroke
|
Cylinder control 20mm, adjustable screw stroke 50mm
|
|
Printing speed
|
2700-3600pcs/hr
|
Compressed air
|
5-6BAR
|
|
Max Product size
|
round diameter 100mm, length 310mm
|
Power supply
|
380V/50HZ
|
Machine Details
Printing sample
