Quick Details
-
Brand Name:
-
Haolong Turbine Flow Meter
-
Model Number:
-
K24 Turbine Flow Meter
-
Product Name:
-
Turbine Flow Meter
-
Application:
-
Flow measurement of diesel, gasoline, kerosene, methanol, water, etc.
-
Operating Voltage:
-
2.3V~3.3V
-
Connection method:
-
Thread
-
Nominal diameter:
-
0.75" 1" 1.5" 2.0"
-
Maximum flow:
-
10L/min 40L/min 100L/min 280L/min 700l/min
-
Measurement accuracy:
-
±1%
-
Repeatability:
-
±0.3%
-
greatest pressure:
-
2 MPa
-
Cumulative count:
-
999999
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Haolong Turbine Flow Meter
-
Model Number:
-
K24 Turbine Flow Meter
-
Product Name:
-
Turbine Flow Meter
-
Application:
-
Flow measurement of diesel, gasoline, kerosene, methanol, water, etc.
-
Operating Voltage:
-
2.3V~3.3V
-
Connection method:
-
Thread
-
Nominal diameter:
-
0.75" 1" 1.5" 2.0"
-
Maximum flow:
-
10L/min 40L/min 100L/min 280L/min 700l/min
-
Measurement accuracy:
-
±1%
-
Repeatability:
-
±0.3%
-
greatest pressure:
-
2 MPa
-
Cumulative count:
-
999999

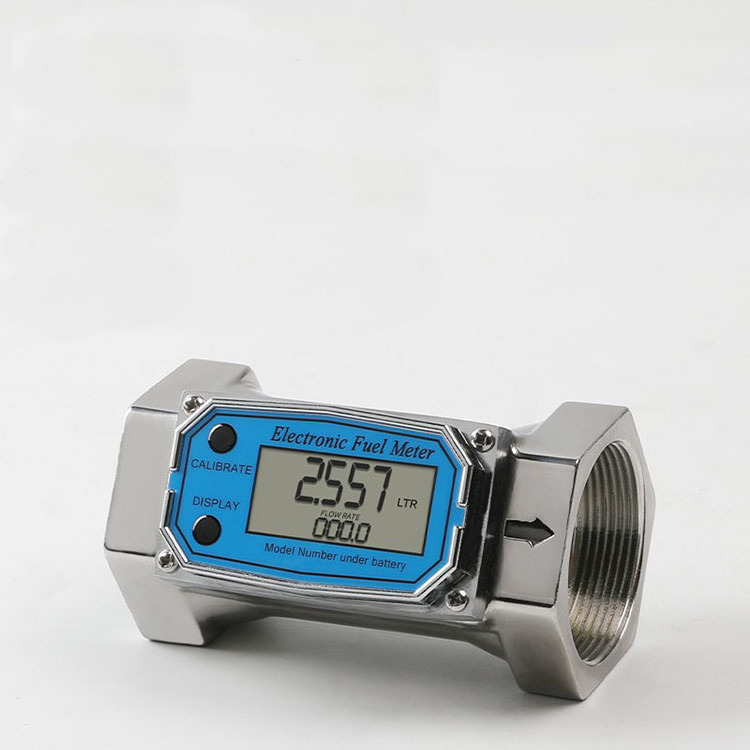

K25 high precision diesel gasoline methanol electronic digital display turbine flow meter
Product Features
The table uses 2 ordinary AAA batteries (open the small screws on the four corners of the panel), which is very convenient for more than one year. It can be easily removed after the power is removed. Normal use of 0.1MPa pressure or more working environment should be more than 10-15 liters per minute. Only when the measured liquid flow is small, it will not display properly. The flow can measure diesel, gasoline, methanol, water, urea solution and other neutral weak acids. Weak alkaline liquid. Accuracy plus or minus ≤1% Repeatability error is less than 2%, the unit of measurement (L/LTR, USG/GAL, Quart/QTS, Pint PTS) can be switched at will, and the two buttons (CALIBRATE DISPLAY) are easy to operate with!
Product parameters
|
Project |
parameter |
||||
|
product name |
Electronic turbine flow meter |
||||
|
Applicable medium |
Diesel, gasoline, kerosene, methanol, water, etc. |
||||
|
Material |
Stainless steel, aluminum alloy |
||||
|
Operating Voltage |
2.3V~3.3V |
||||
|
Connection method |
Thread |
||||
|
Nominal diameter |
3/4" 1" |
1.5" |
2" |
2.5" |
3" |
|
Minimum flow |
9L/min |
40L/min |
60L/min |
80L/min |
80L/min |
|
Maximum flow |
100L/min |
280L/min |
500L/min |
1000L/min |
1000L/min |
|
Measurement accuracy |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Repeatability |
±0.3% |
±0.3% |
±0.3% |
±0.3% |
±0.3% |
|
greatest pressure |
2 MPa |
2 MPa |
2 MPa |
2 MPa |
2 MPa |
|
Single count |
9999.9 |
9999.9 |
9999.9 |
9999.9 |
9999.9 |
|
Cumulative count |
999999 |
999999 |
999999 |
999999 |
999999 |
|
Product weight |
0.35kg |
0.5kg |
0.85kg |
1.1kg |
1.8kg |
turbine flow meter turbine flow meter turbine flow meter turbine flow meter turbine flow meter turbine flow meter turbine flow meter
FAQ
Q: Are you a trading company or a manufacturer?
A: We are factories.
Q: How long will you give me?
A: We will contact you within 8 hours as soon as possible.
Q: How long is your delivery time?
A: If the goods are in stock, delivery is usually within 1 day. Or about 5 days if the goods are not in stock, calculated according to the order quantity.
Q: Is your product quality guaranteed?
A: Yes, our products can only be released after at least two quality inspections have been passed. After the company and the company’s factory have actually inspected the factory of Alibaba’s Northwest China headquarters, the products are allowed to be sold at the Alibaba International Station. To provide users with quality products and pre-sale service.
