Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
E-pack
-
Dimension(L*W*H):
-
600mm/800mm width
-
Weight (KG):
-
60 kg
-
Roller Material:
-
50mm Diameter 201 Stainless Steel
-
Caster:
-
Universal caster with brake, stable transmission
-
Working Height:
-
57-86 / 75-115/ 95-160 CM
-
Surface Treatment:
-
Polishing
-
Working Length:
-
Unlimited
-
Drive belt:
-
The standard brand: the United States gates v-ribbed belts
-
Product size:
-
standard width: 600mm/800mm
-
Line Speed:
-
0~30m/min, one motor every 1.2m, all synchronized
Quick Details
-
Power:
-
1
-
Warranty:
-
1 Year
-
Width or Diameter:
-
600mm/800mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
E-pack
-
Dimension(L*W*H):
-
600mm/800mm width
-
Weight (KG):
-
60 kg
-
Roller Material:
-
50mm Diameter 201 Stainless Steel
-
Caster:
-
Universal caster with brake, stable transmission
-
Working Height:
-
57-86 / 75-115/ 95-160 CM
-
Surface Treatment:
-
Polishing
-
Working Length:
-
Unlimited
-
Drive belt:
-
The standard brand: the United States gates v-ribbed belts
-
Product size:
-
standard width: 600mm/800mm
-
Line Speed:
-
0~30m/min, one motor every 1.2m, all synchronized
Products Description
Expandable

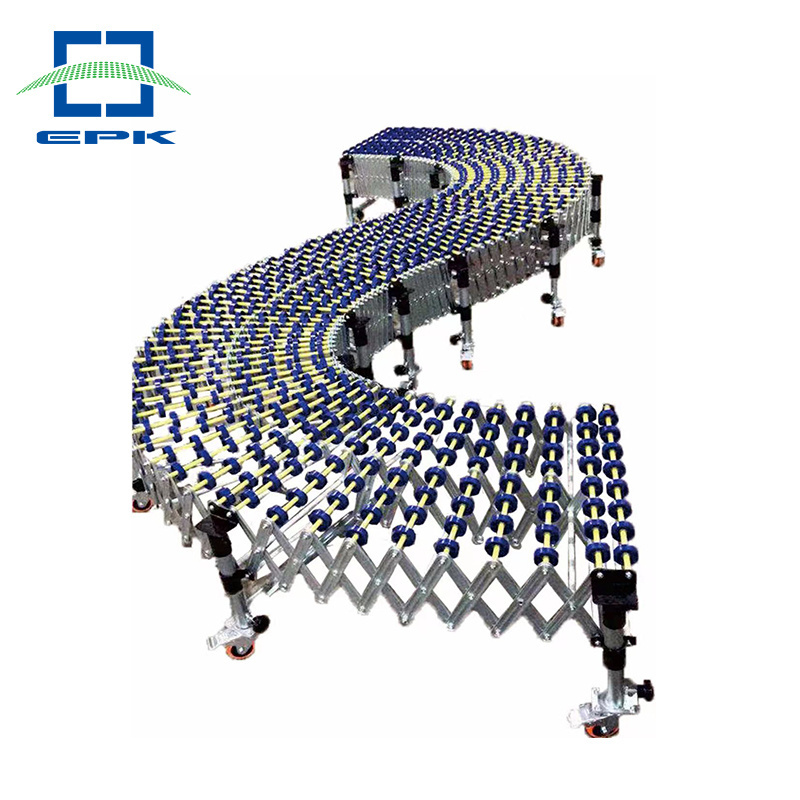

Skate Wheel Gravity Roller Conveyor
This roller conveyor has a simple structure, high reliability, and convenient use and maintenance. The roller conveyor is suitable for the conveyance of articles with a flat bottom, which is mainly composed of a driving drum, a frame, a bracket, a driving part and the like. It has the characteristics of large transport volume, high speed, light operation, and the ability to realize the transmission of multiple lines at the same time.
Specification
|
Style
|
Fulailun Conveyor
|
|
Product Specification
|
Width (standard) 600mm / 800mm
|
|
Roller Material
|
201 Stainless Steel
|
|
Expansion piece
|
Bending structure, steel plate stamping parts, increase the bearing capacity, bolt links
|
|
Caster
|
The brake casters
|
|
Working Lenth
|
Unlimited
|
|
Working Height
|
45-65 /57-86 / 75-115/ 95-116 CM
|
|
Support the Weight
|
(Standard) 60-80KG/M
|
We offer customized model in accordance with users' specific demand. OEM and ODM orders are acceptable.
Application of telescopic roller conveyor
Roller conveyor is suitable for conveying the material which has a flat bottom. It has advantages of large conveying capacity,high speed , strong load capacity. It is easy to connect roller conveyors. Several roller lines and other conveying devices can be assembled into complicated logistics transport system to meet the technical requirements in many fields. The roller conveyor is classified by form of layout: horizontal conveying, turning conveying, incline conveying.
Features & Advantages
2. Modular combination, easy to transport and maintain;
3. Reliable operation, low noise and safety;
4. Adjustable legs, wide application scope;
5. Surface electrostatic spray, beautiful appearance;
6. Adjustable convey speed;
7. Large load capability;
8. Lightweight design, fast installation
3. Reliable operation, low noise and safety;
4. Adjustable legs, wide application scope;
5. Surface electrostatic spray, beautiful appearance;
6. Adjustable convey speed;
7. Large load capability;
8. Lightweight design, fast installation
