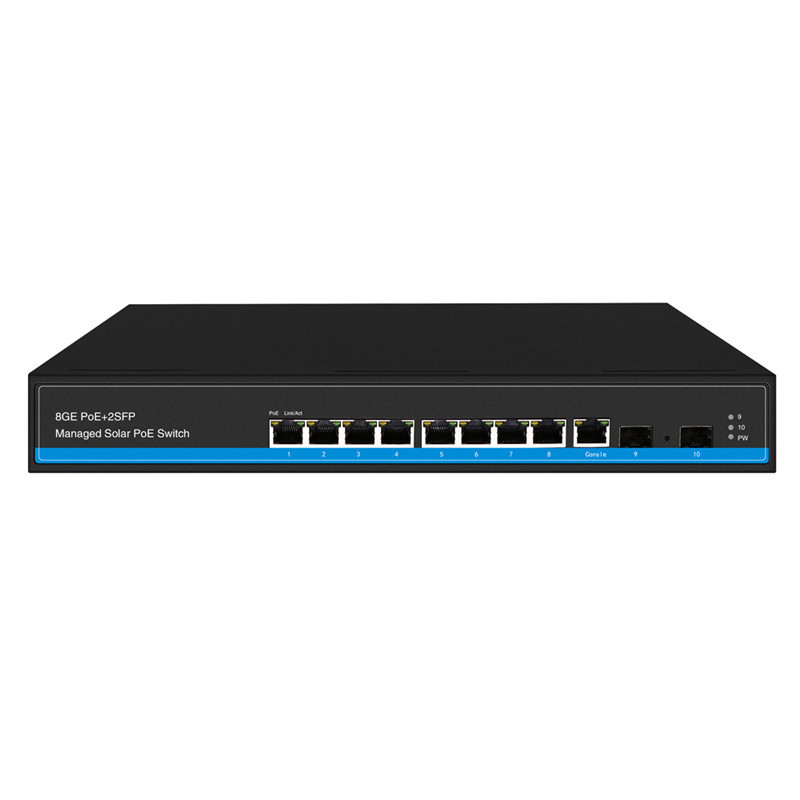

Managed 8 ports 1000Mbps Solar PoE switch for 24V and 48V with 2 SFP Ports

Managed 8 ports 1000Mbps Solar PoE switch for 24V and 48V with 2 SFP Ports

FOB Reference Price: Get Latest Price

≥2 Pieces

US $100

≥50000 Pieces

US $80

≥500000 Pieces

US $70

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Chinasky, OEM

Model Number:: POE0802M-AI

Place of Origin:: Zhejiang, China

PoE Standard:: IEEE802.3af/at

Applications:: Support PoE IP camera, PoE WIFI AP, and PoE IP Phone

Product Description:: 4 8 16 24 48 Port CCTV Network Ethernet PoE Switch 48V

Bandwidth:: 1.6G, 2.2G, 2G,10G, 12G, 12.8G, 16G, 17.8G, 20G, 56G

Power Supply:: Built-in Power Adapter (Input: AC100-240V 50/60Hz)

PSE Type:: End-span 1/2(+), 3/6(-), Max 30W per channel

Protections:: short-circuit protection, Over-voltage and under-voltage protection

Working Temperature:: -20~65°C

Warranty:: 3 years

Certification:: CE, RoHS, FCC, IEC60950-1

Quick Details

Transmission Rate:: 10/100Mbps

Communication Mode:: Full-Duplex & Half-Duplex

Switch Capacity:: 20Gbps

Brand Name:: Chinasky, OEM

Model Number:: POE0802M-AI

Place of Origin:: Zhejiang, China

PoE Standard:: IEEE802.3af/at

Applications:: Support PoE IP camera, PoE WIFI AP, and PoE IP Phone

Product Description:: 4 8 16 24 48 Port CCTV Network Ethernet PoE Switch 48V

Bandwidth:: 1.6G, 2.2G, 2G,10G, 12G, 12.8G, 16G, 17.8G, 20G, 56G

Power Supply:: Built-in Power Adapter (Input: AC100-240V 50/60Hz)

PSE Type:: End-span 1/2(+), 3/6(-), Max 30W per channel

Protections:: short-circuit protection, Over-voltage and under-voltage protection

Working Temperature:: -20~65°C

Warranty:: 3 years

Certification:: CE, RoHS, FCC, IEC60950-1

Managed 8 ports 1000Mbps Solar PoE switch for 24V and 48V with 2 SFP Ports

Product Description

Managed 8 ports 1000Mbps Solar PoE switch for 24V and 48V with 2 SFP Ports

8 Ports PoE Ethernet Switch is an unmanaged Ethernet switch designed for Ethernet access and PoE applications. It provides 8*10/100/1000Base-TX PoE port , automatic Identification for 24V and 48V PD 2*1000M SFP . The 8 PoE ports support 802.3af/at standard and feature Max 30W PoE power output of each single port, Max 120 W of whole machine. This switch supports three kinds of working modes (N-Normal, V-VLAN, and S-SUPM 250m). It can be widely used in security surveillance, hotels, schools, and SMB engineering and other occasions.

Model

POE0 8 0 2M -AI

Fixed port

8*10/100/1000Base-TX PoE port , automatic Identification for 24V and 48V PD

2*1000M SFP

Console port

1*console port

Reset Key

Network Protocol

IEEE 802.3x

IEEE 802.3, IEEE 802.3u , IEEE 802.3ab , IEEE 802.3z

IEEE 802.3ad

IEEE 802.3q , IEEE 802.3q/p

IEEE 802.1w, IEEE 802.1d , IEEE 802.1S

IEEE 802.3z 1000BASE-X

IEEE 802.3af/at

STP(Spanning Tree Protocol)

RSTP/MSTP( Rapid Spanning Tree Protocol)

EPPS ring network protocol

EAPS ring network protocol

Port Specification

10/100/1000BaseT( X ) Auto

Transmission Mode

Store and Forward(full wirespeed)

Bandwidth

20Gbps

Packet Forwarding

14.44Mpps

MAC Address

Buffer

4.1M

Transmission Distance

10BASE-T : Cat3,4,5 UTP(≤250 meter)

100BASE-TX : Cat5 or later UTP(≤100 meter)

1000BASE-TX : Cat6 or later UTP(≤1000 meter)

1000BASE-SX:62.5μm/50μm MMF(2m~550m)

1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

FLASH

128M

RAM

128M

Watt

≤120W

LED Indicator

PW:Power LED

Port:(Orange=PoE LED+Green=Link LED)

9 10:(SFP LED)

Power

Built-in solar power AC 100~240V 50/60HZ

Battery

Support 24V lead-acid batteries 10~10 0AH

Operating Temperature/Humidity

-20~ + 65 °C; 5% ~ 90% RH Non coagulation

Storage Temperature/Humidity

-40~ +75°C ; 5% ~ 95% RH Non coagulation

Product size/Packing size( L*W*H )

335mm*195mm*45mm

410mm*175mm*95mm

N.W/G.W( kg )

2.2kg/2.7kg

Installation

Rack-mount(optional machine hanger spare parts)

Lightning protection level

3KV 8/20us;

IP30

Certificate

CE mark, commercial; CE/LVD EN60950 ;
FCC Part 15 Class B; RoHS ;

Warranty

Whole device for 1 year(Accessories not included)

Features:
1.	810/100/1000Base-TX PoE port , automatic Identification for 24V and 48V PD 21000M SFP
2.	IEEE 802.3, IEEE 802.3u, IEEE 802.3af/at PoE compliant
3.	Support PoE IP cameras, PoE WIFI AP, and PoE IP phones
4.	Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure
5.	Up to 30W per port (total power budget: 120 W) for powering PoE-enabled devices
6.	One-key Smart: Support three working modes (N-Normal, V-VLAN, S-SUPM)
7.	All ports support wire speed switching, jumbo frame transmission
8.	Support upstream ports lightning protection
9.	Dynamic power control to ensure stable output power (Enhanced)
10.	Improved anti-interference capability, to solve problems in the installation of grounding devices (Enhanced, twice as good as other manufacturers' products)
11.	Power-on in order of the PoE port, effectively reduce current strike, and reduce the transient voltage surge to PoE switch and other connected devices at the startup (Unique)
12.	Reliable short-circuit protection to ensure safety (Enhanced)
13.	Over-voltage and under-voltage protection (Some other manufacturers' products don't support this)
